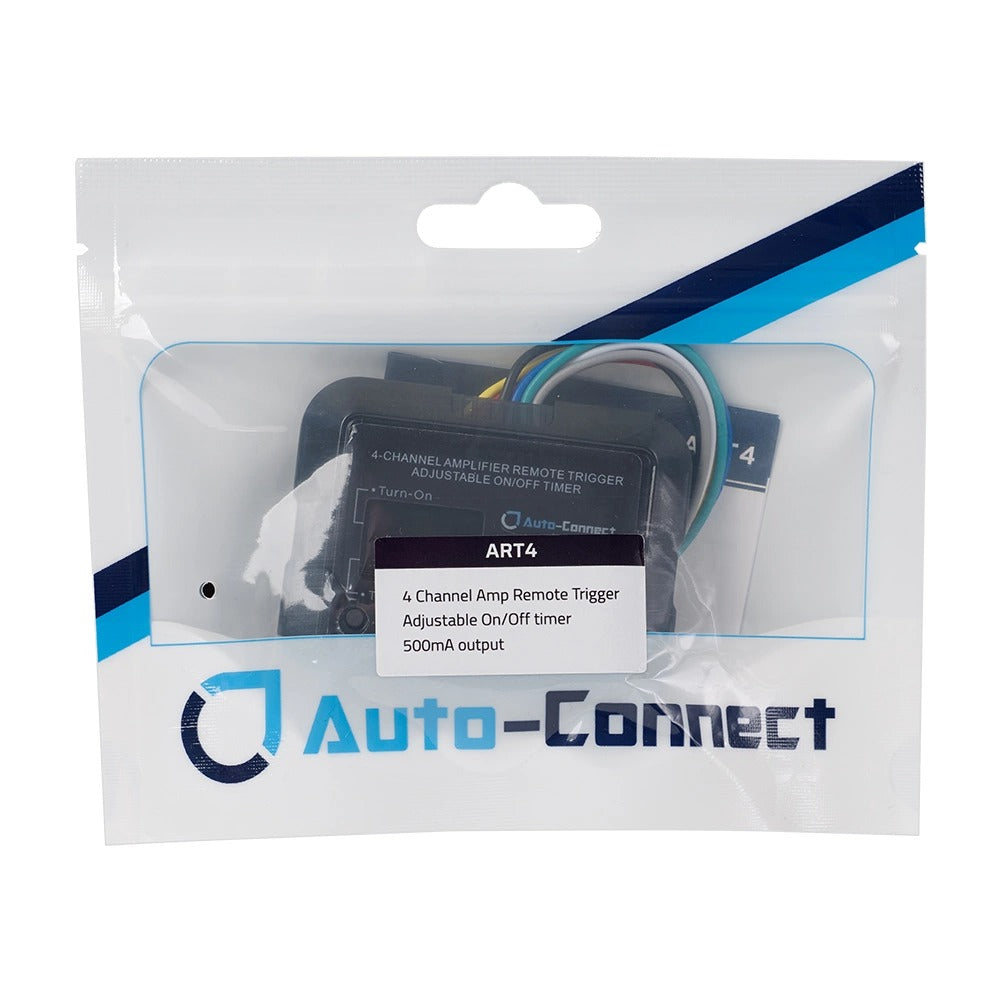

ART4 is a powerful and user-friendly time-controlled 4-channel relay (Amplifier Remote Trigger), designed to give you full control over the start and stop times of DSP units or amplifier remote inputs.
- 4-channel Adjustable Remote Relay Timer
- Solves pop-sounds when starting/shutting down a system
- Stable remote power to 4 devices without voltage issues
- Adjustable on/off delay: 0–30 seconds
- Works on a 12V switched DC signal
- Trigger output current: 500 mA
- Trigger input current: 1 mA
- Intuitive LED display
A true problem-solver...
With the ART4, you can easily set individual time delays for each channel and ensure a stable power supply to up to four devices. By eliminating unwanted turn-on and turn-off noises, the ART4 guarantees a smooth and professional audio installation.
...even in competition!
If you're aiming to compete with your car audio system, your installation needs to meet high standards - any noise during power-up or shutdown can lead to point deductions in many competition formats. With the ART4, you can easily solve these issues and reclaim those lost points (up to 6 points in the installation category according to EMMA’s 2024 rulebook!). That makes the ART4 a real life-saver when you're close to the podium and every point counts.
Installation Instructions
Red: Remote in (ignition signal)
Black: Ground
Yellow: 12V constant power
Blue: Remote out, channel 1
Green: Remote out, channel 2
White: Remote out, channel 3
Gray: Remote out, channel 4
Specifications
Voltage: 10–16 V
Max output current: 500 mA
Input current: 1 mA
Time adjustment range: 0–30 seconds
In stock
Downloads
Compatibility
Logistics Information
| SKU | ART4 |
| Product Type | Adjustable Remote Relay |
| EAN/GTIN | 7394409027236 |
| Product Status | Active |
| Weight (each) | 0.1 kg |
| Unit | pcs |
| Packaging Dimensions (each, W x H x D) | 15.0 x 12.0 x 3.0 cm |
| Master Carton Quantity | 100 |
| Master Carton Weight | 6.13 kg |
| Master Carton Dimensions (W x H x D) | 47.0 x 27.0 x 35.5 cm |
