BMW 3 Series 05-13 9 inch Head Unit Installation Kit
BMW 3 Series 05-13 9 inch Head Unit Installation Kit
F9BM3 is a 9 inch head unit installation kit for BMW 3 Series E90/E91/E92/E93 2005-2013. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9 inch Installation Kit
- Head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For BMW 3 Series E90/E91/E92/E93 2005-2013
- With steering wheel control interface
- Includes vehicle-specific fascia panel
- Includes CAN Bus interface
- Includes chime and rear parking sensor speaker
- Includes vehicle-specific antenna adapter
9 inch Installation Kit
This installation kit allows a 9 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.
The included CAN Bus interface retains steering wheel controls, chimes and parking sensors, and also provides key installation outputs for speed pulse, parking brake and reverse. The kit is designed for vehicles using a 40-pin Quadlock BMW connector and includes a fused +12V continuous battery feed that should be connected to a permanent +12V source.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

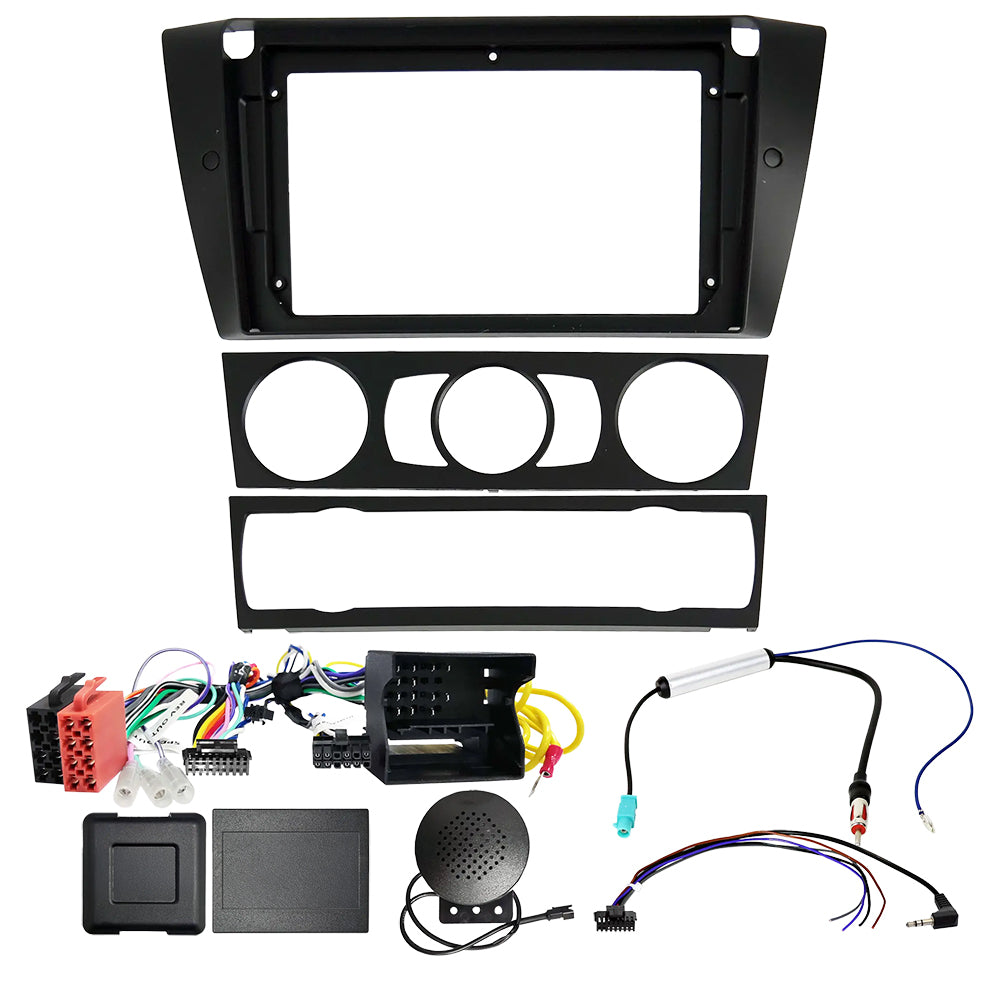

Included in the Kit

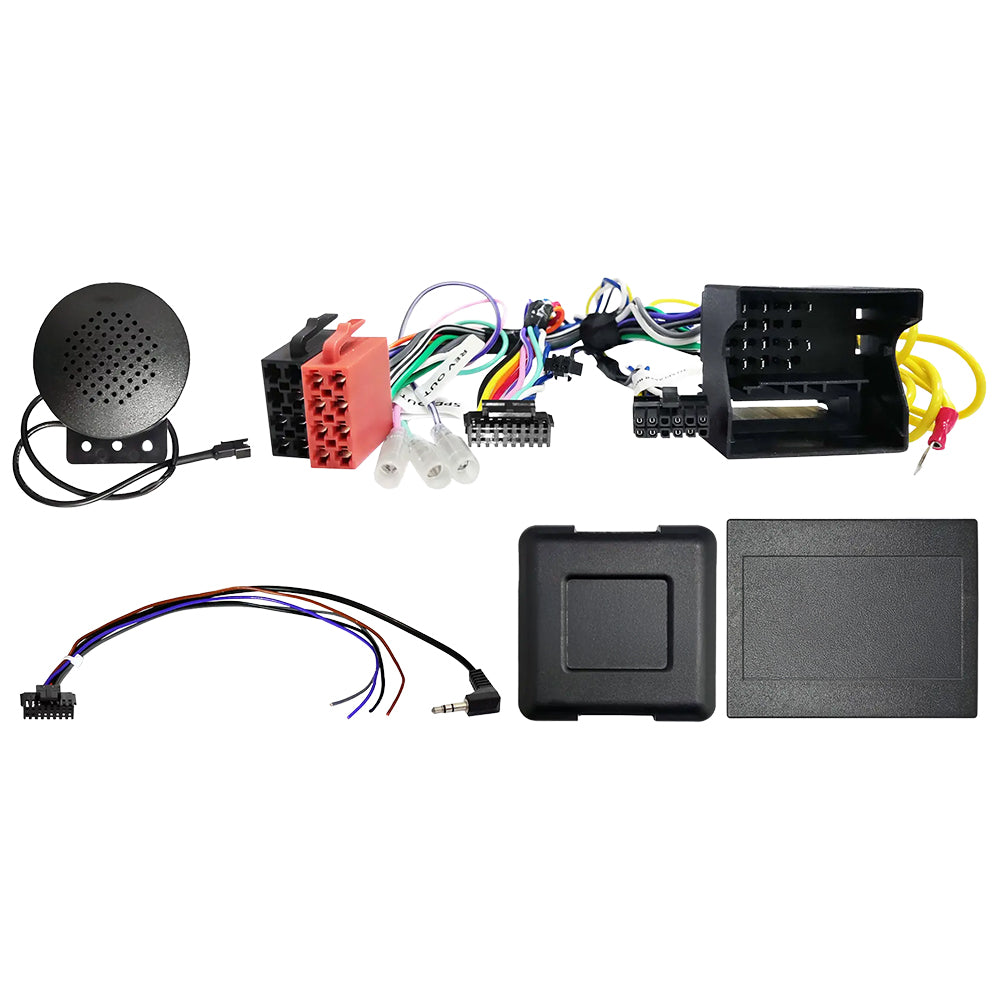

- CAN Bus interface
- Quadlock connection loom
- Vehicle chime and rear parking sensor speaker

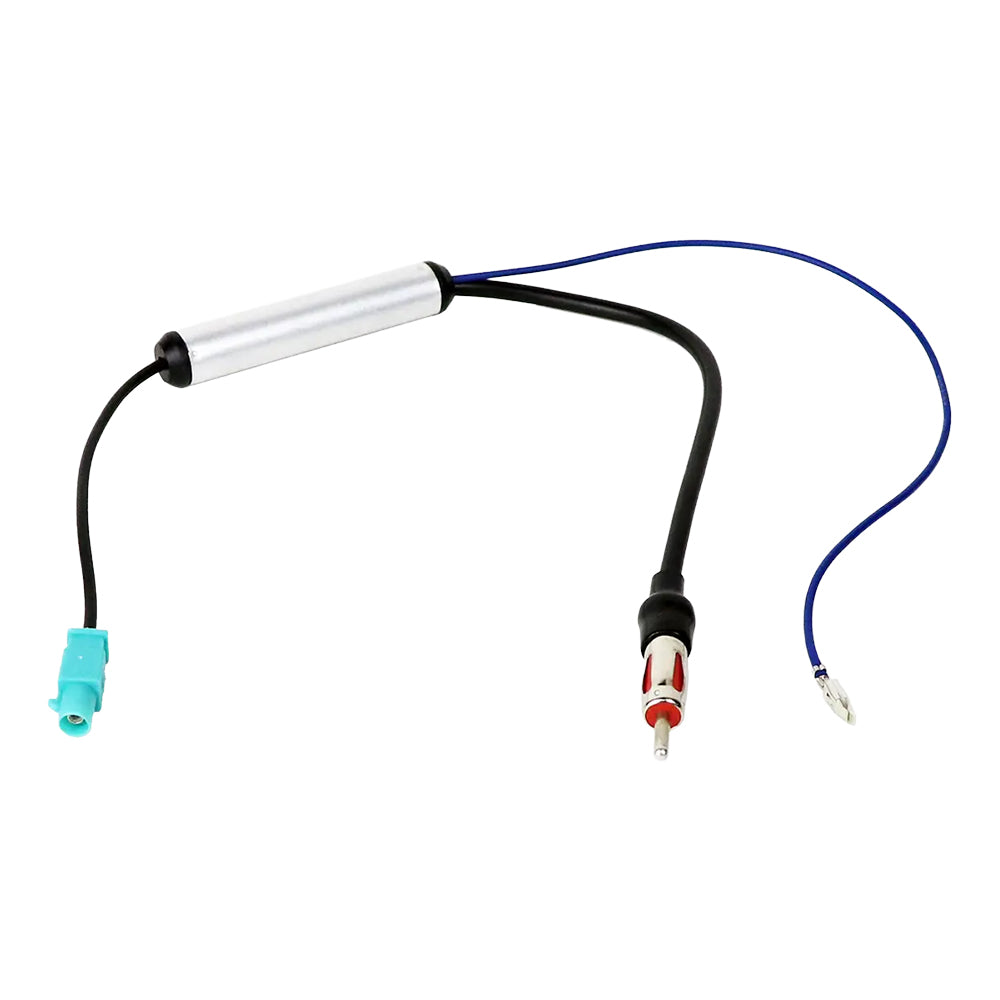

- Vehicle-specific antenna adapter

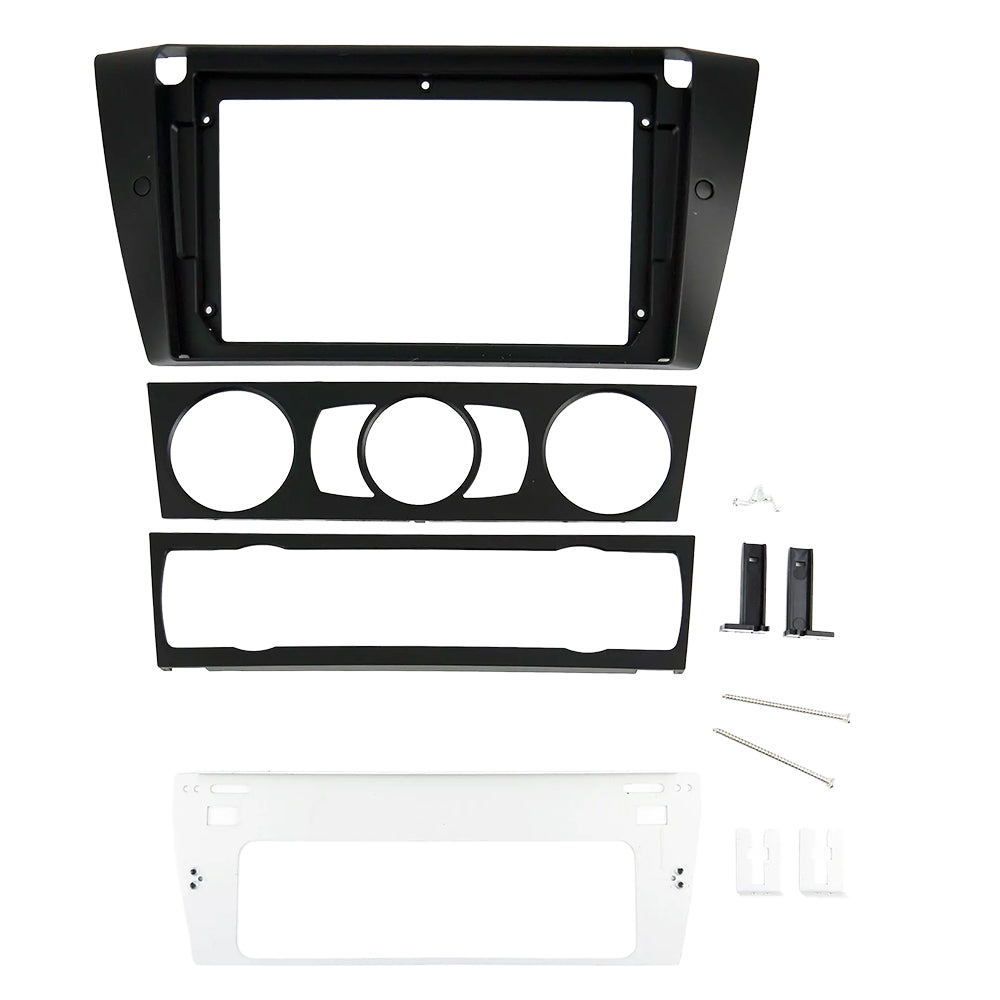

- Vehicle-specific fascia panel (both manual and automatic AC)
Specifications
Head unit size: 9 inch
Head unit top width: 228 mm
Head unit bottom width: 218 mm
Head unit height: 130 mm
Interface outputs: speed pulse, parking brake, reverse
Retained features: steering wheel controls, chimes, rear parking sensors
Low stock
Compatibility
Logistics Information
| SKU | F9BM3 |
| Product Type | 9 inch Head Unit Installation Kit |
| EAN/GTIN | 7394409047531 |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
