BMW 3 Series E46 98-07 9 inch Head Unit Installation Kit
BMW 3 Series E46 98-07 9 inch Head Unit Installation Kit
F9BM4 is a 9 inch head unit installation kit for BMW 3 Series E46 1998-2007. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9 inch Installation Kit
- Head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For BMW 3 Series E46 1998-2007
- With steering wheel control interface
- Includes vehicle-specific fascia panel
- Includes IBus interface
- Includes vehicle-specific antenna adapter
- Includes 17-pin BMW and 40-pin Quadlock BMW connection looms
9 inch Installation Kit

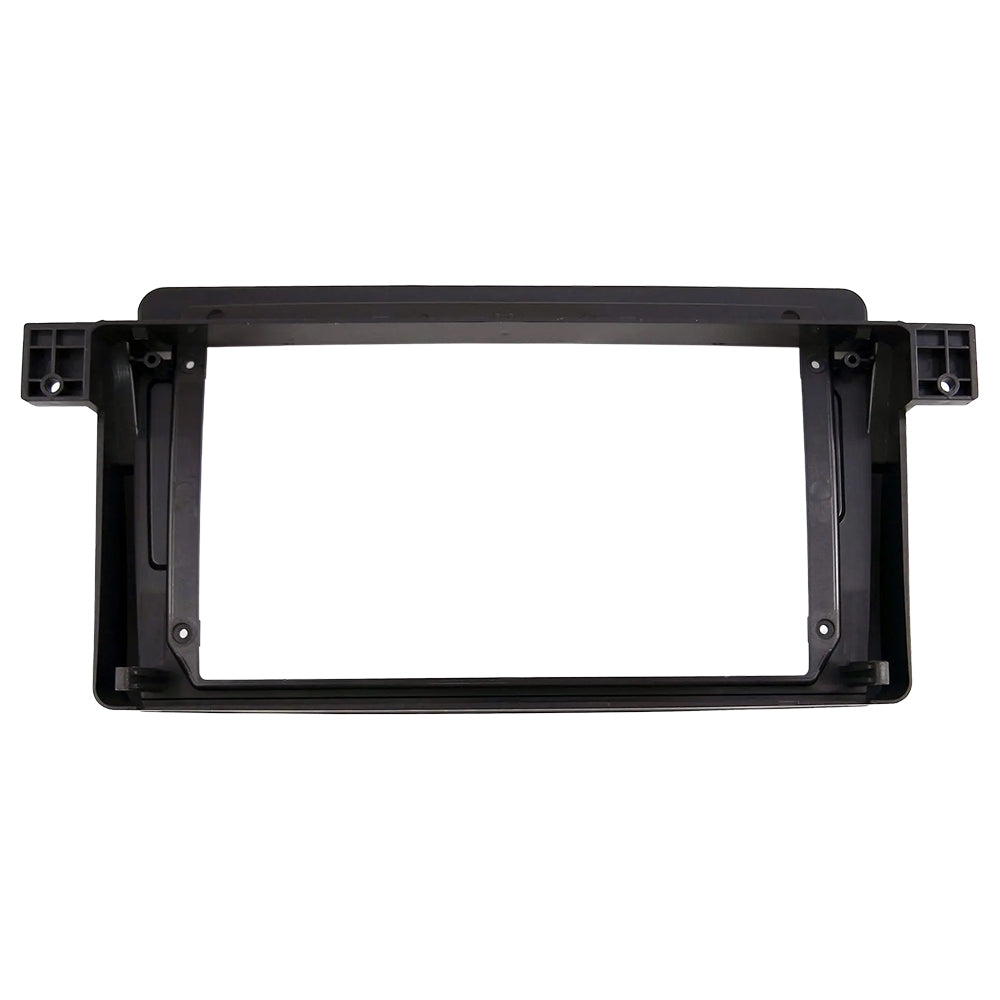

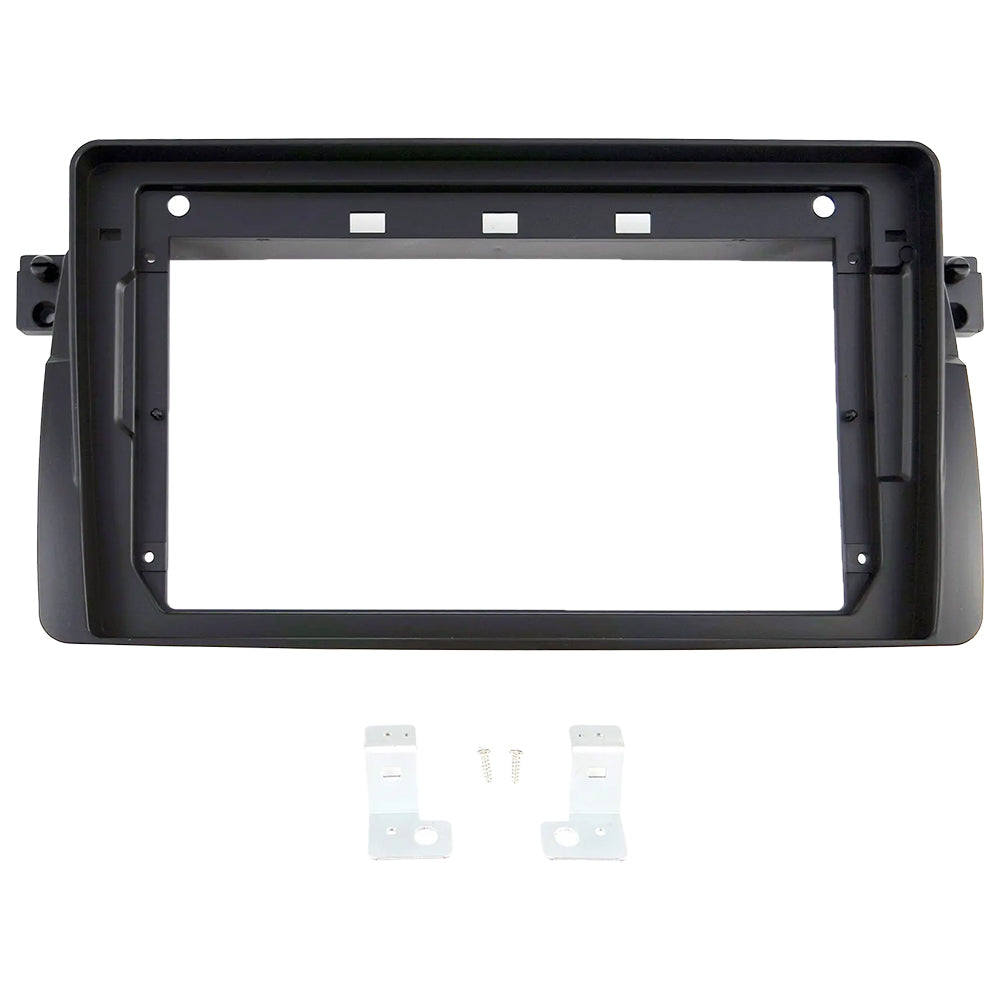

This installation kit allows a 9 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.

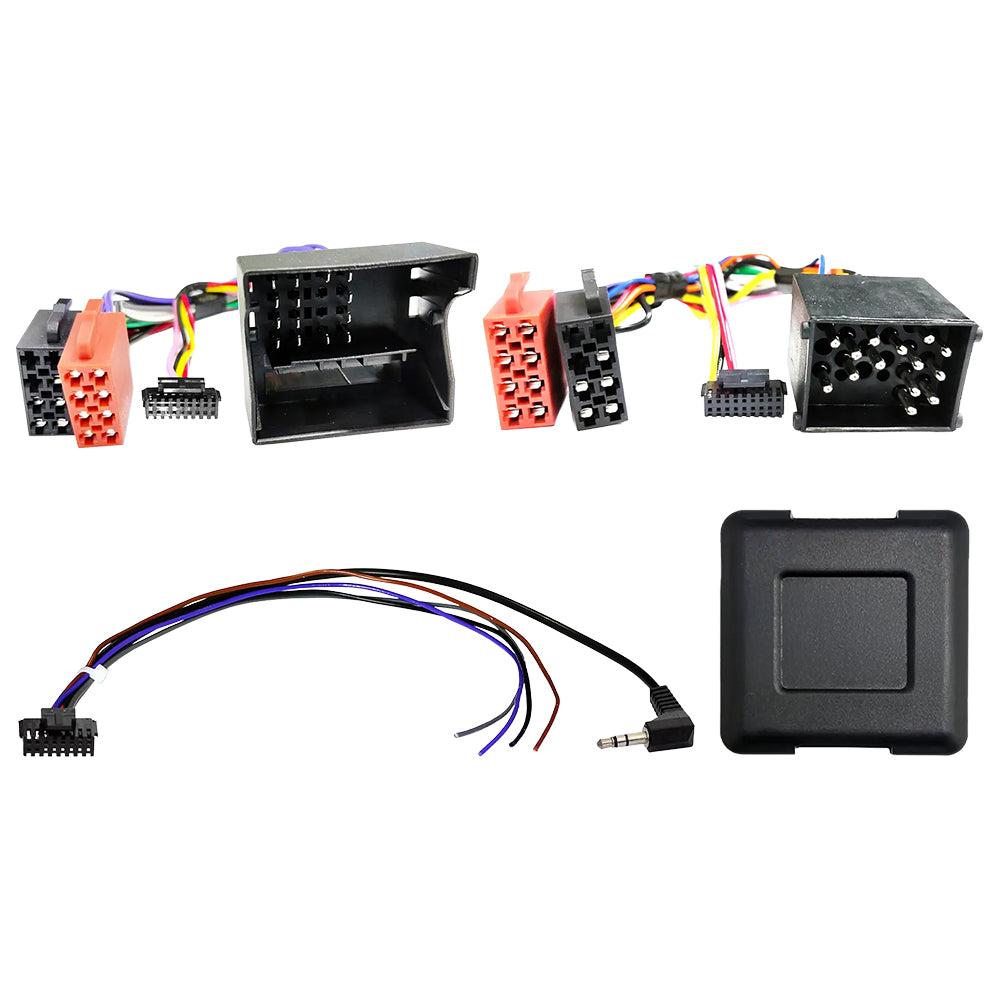

The included IBus interface supports steering wheel control retention and is supplied with both 17-pin BMW and 40-pin Quadlock BMW connection looms. Select the loom required for the installation and discard the unused loom.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

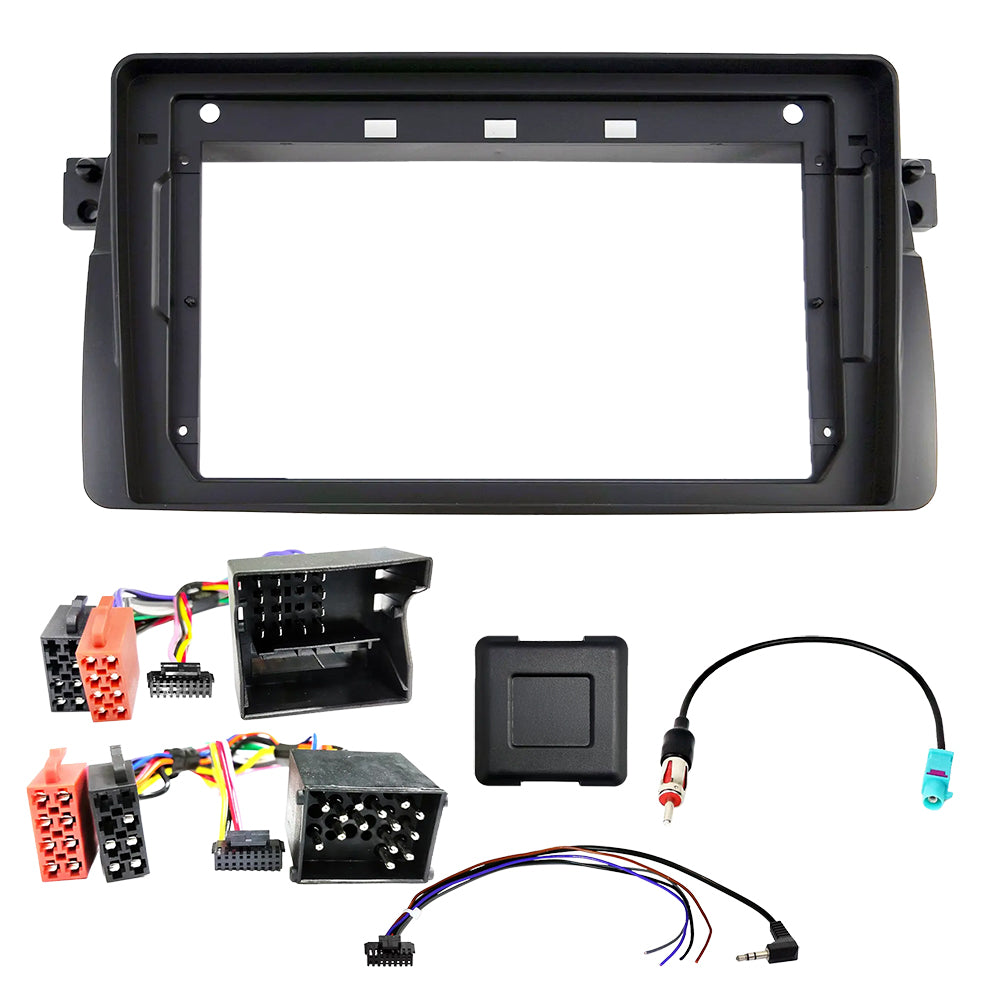

Included in the Kit
- IBus interface
- 17-pin BMW connection loom
- 40-pin Quadlock BMW connection loom

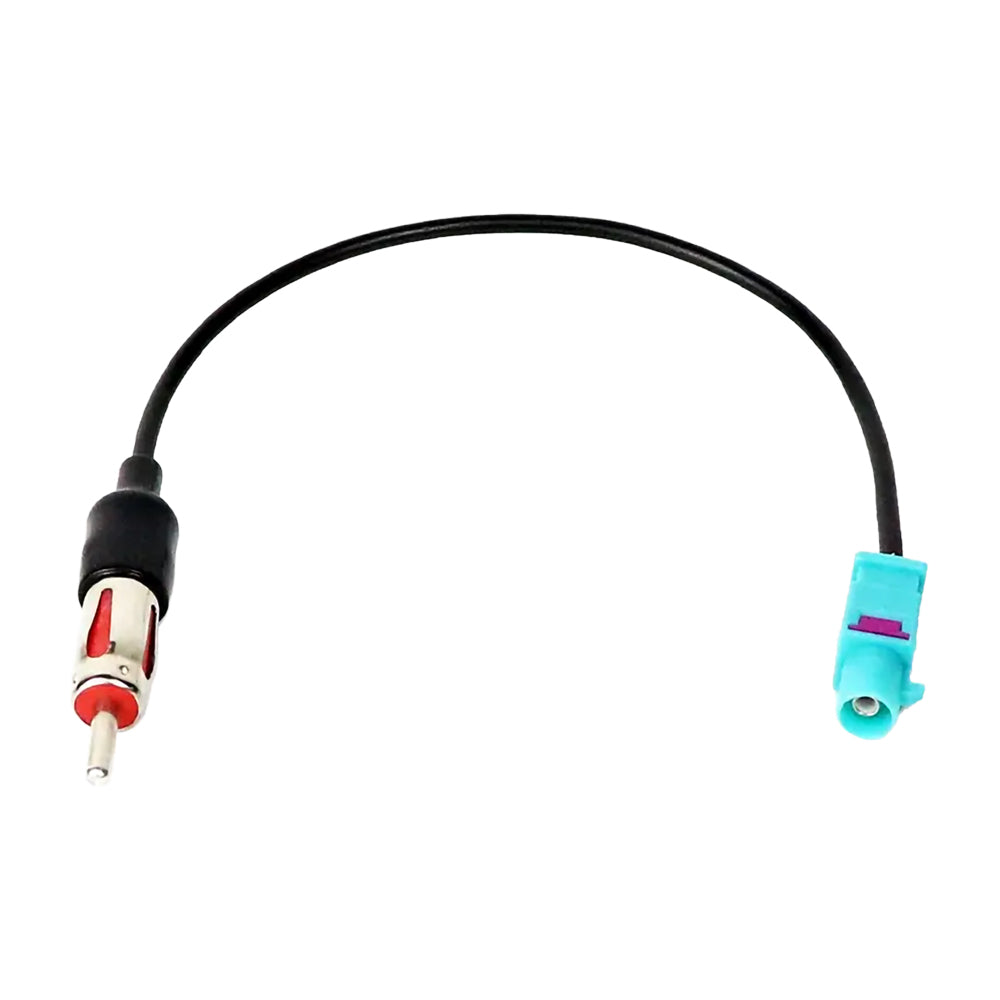

- Vehicle-specific antenna adapter
- Vehicle-specific fascia panel
Specifications
Head unit size: 9 inch
Head unit top width: 228 mm
Head unit bottom width: 218 mm
Head unit height: 130 mm
Retained features: steering wheel controls
Low stock
Compatibility
Logistics Information
| SKU | F9BM4 |
| Product Type | 9 inch Head Unit Installation Kit |
| EAN/GTIN | 7394409047548 |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
Product Safety Information
Intended Use
This product is intended for general automotive or workshop use, as specified on the packaging or in related documentation. Use only as intended.
Safety Instructions
- Always read all labels and instructions before use.
- Keep out of reach of children.
- Use with appropriate tools and protective equipment where applicable.
- Do not modify the product.
- Avoid exposure to moisture, extreme temperatures, or physical damage.
- For electrical products: Disconnect power before installation. Ensure correct polarity and use proper fuses.
Installation & Handling
Installation or use must be carried out by a competent person. Improper handling may result in injury or damage.
Maintenance
Check regularly for damage or wear. Stop using the product if it appears damaged.
Disposal
Dispose of this product in accordance with local regulations for electrical and electronic waste or general waste, as applicable.
