Citroën Berlingo 2018- 9/10.1 inch Head Unit Installation Kit
Citroën Berlingo 2018- 9/10.1 inch Head Unit Installation Kit
F9CT7 is a 9/10.1 inch head unit installation kit for Citroën Berlingo K9 2018-on. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9/10.1 inch Installation Kit
- 10.1 inch head unit dimensions: 251/241 x 146 mm
- 9 inch head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For Citroën Berlingo K9 2018-on
- Includes vehicle-specific fascia panel
- Includes CAN Bus interface with 40-pin Quadlock connector
- Includes vehicle-specific antenna adapter
- Includes 10.1 to 9 inch reducer plate
9/10.1 inch Installation Kit
This installation kit allows a 9 or 10.1 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.
The included CAN Bus interface provides key installation outputs for speed pulse, parking brake and reverse. The interface also supports retention of the OEM AUX connection via RCA and retains the OEM rear camera.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

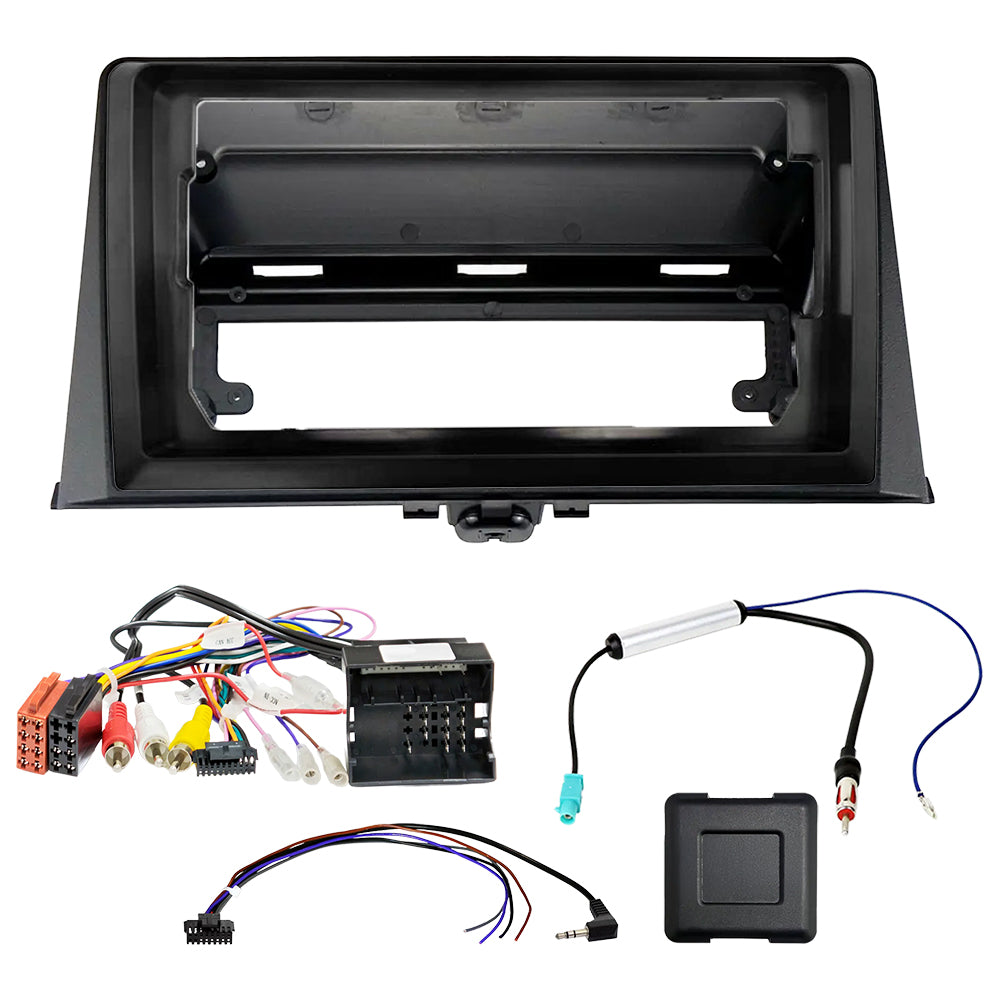

Included in the Kit

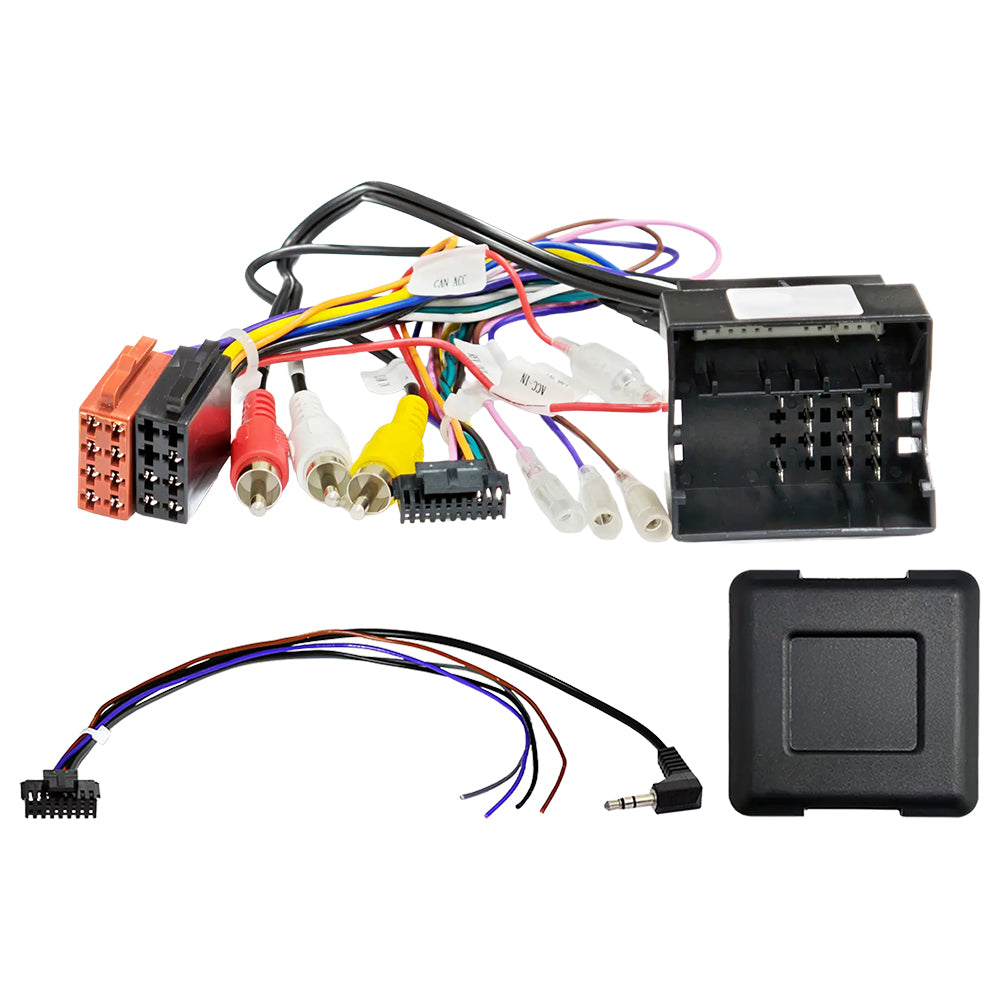

- CAN Bus interface
- 40-pin Quadlock connector

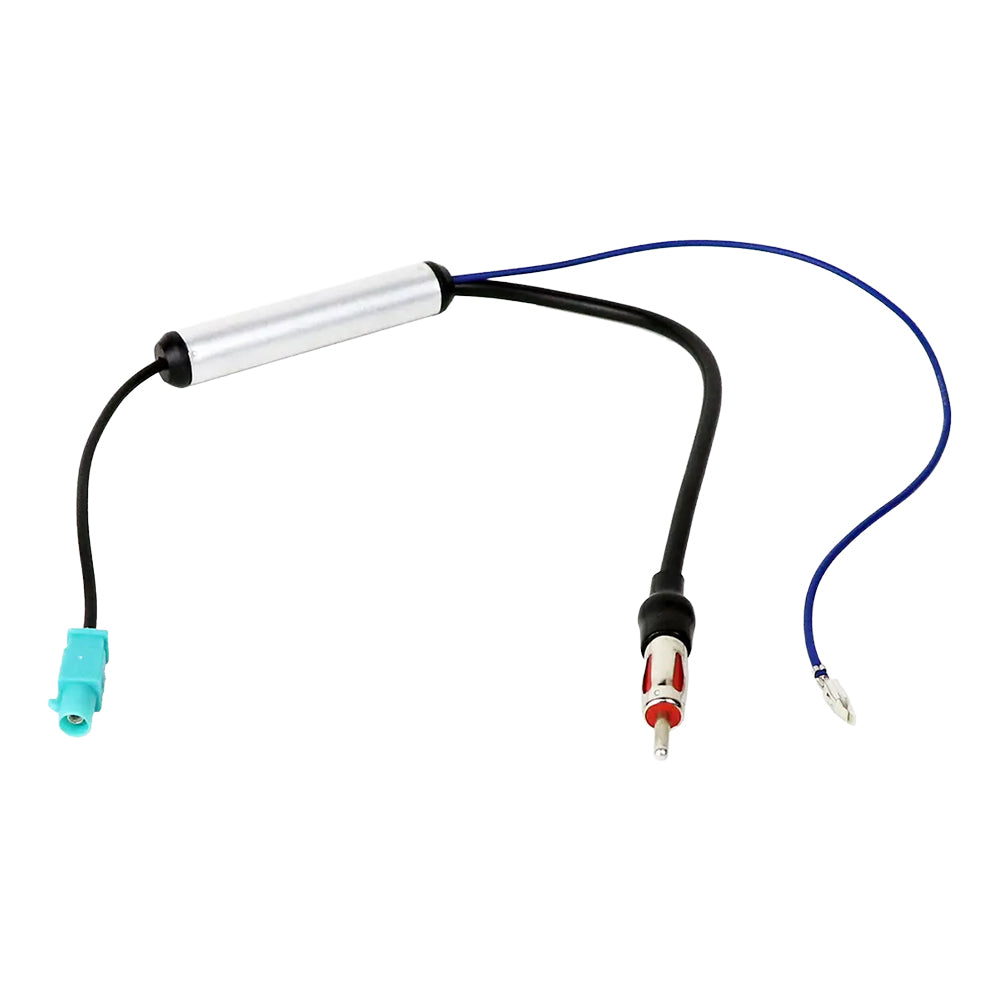

- Vehicle-specific antenna adapter

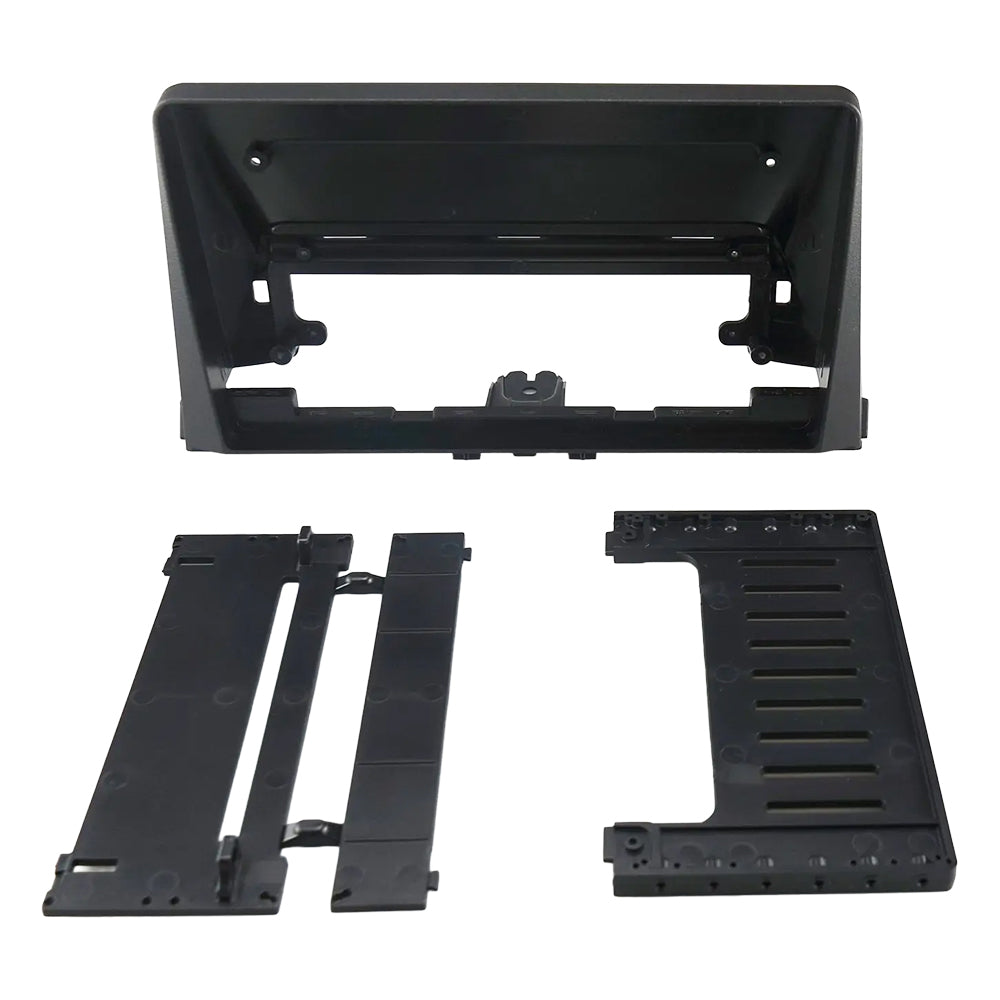

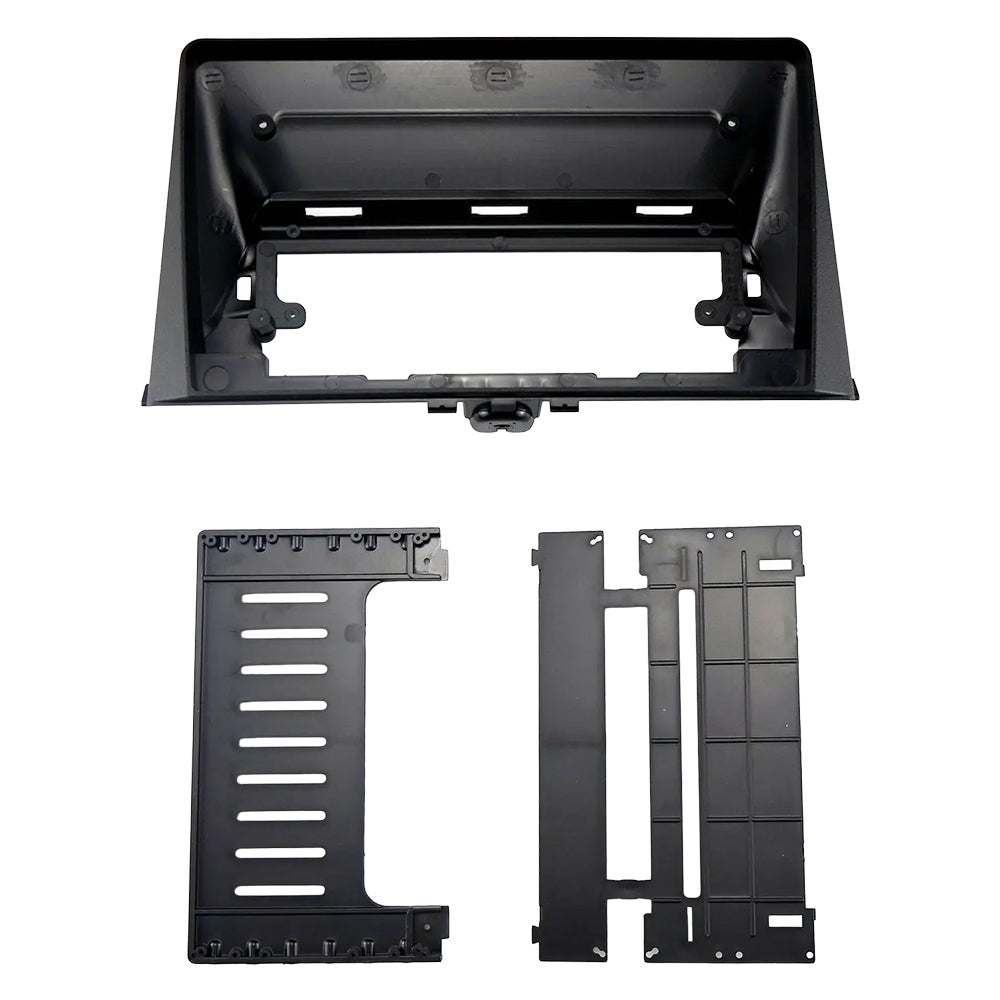

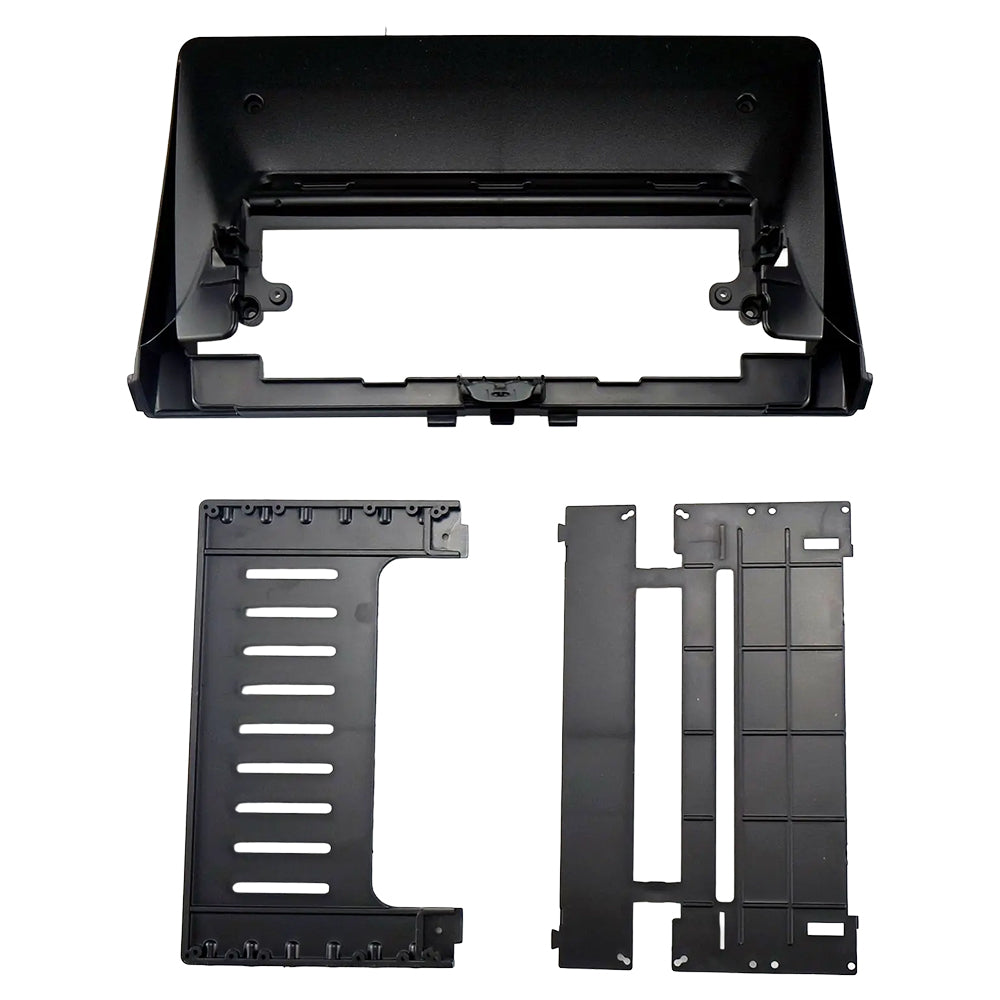

- Vehicle-specific fascia panel

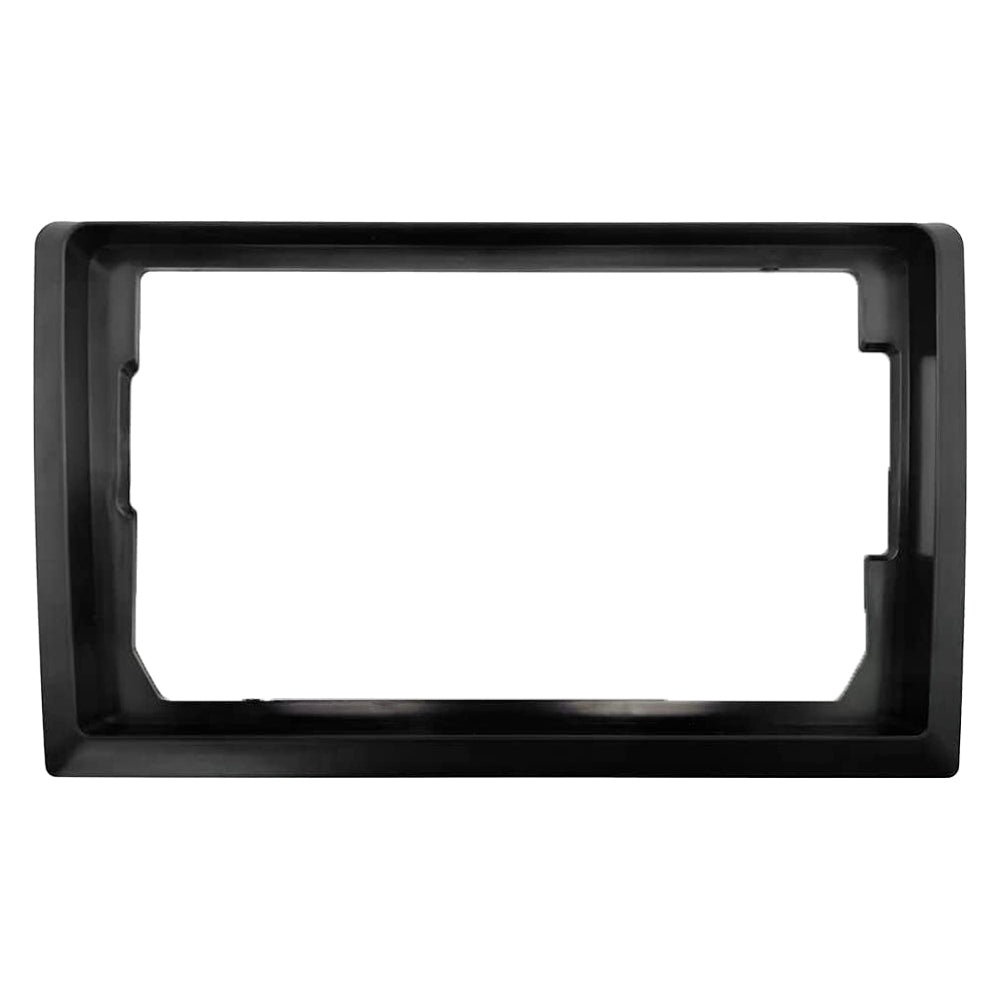

- 10.1 to 9 inch reducer plate
Specifications
Head unit size: 9/10.1 inch
9 inch head unit top width: 228 mm
9 inch head unit bottom width: 218 mm
9 inch head unit height: 130 mm
10.1 inch head unit top width: 251 mm
10.1 inch head unit bottom width: 214 mm
10.1 inch head unit height: 146 mm
Interface outputs: speed pulse, parking brake, reverse
Retained features: steering wheel controls, factory AUX AUX (via RCA), factory rear view camera
Low stock
Compatibility
Logistics Information
| SKU | F9CT7 |
| Product Type | 9/10.1 inch Head Unit Installation Kit |
| EAN/GTIN | 7394409047661 |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
