Ford Ranger 12-16 9 inch Head Unit Installation Kit
Ford Ranger 12-16 9 inch Head Unit Installation Kit
F9FD1 is a 9 inch head unit installation kit for Ford Ranger 2012-2016. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9 inch Installation Kit
- Head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For Ford Ranger 2012-2016
- With steering wheel control interface
- Includes vehicle-specific fascia panel
- Includes warning/door lock switches with connection loom
- Includes CAN Bus interface with 24-pin Ford connector
- Includes chime and rear parking sensor speaker
- Includes vehicle-specific antenna adapter
9 inch Installation Kit
This installation kit allows a 9 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, vehicle-specific installation appearance while keeping the original display integration.
The included CAN Bus interface provides reverse, speed pulse and parking brake outputs. It retains steering wheel control functions, vehicle settings, warning chimes, rear parking sensor chimes and the factory AUX connection via RCA, where supported by the vehicle and aftermarket head unit.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

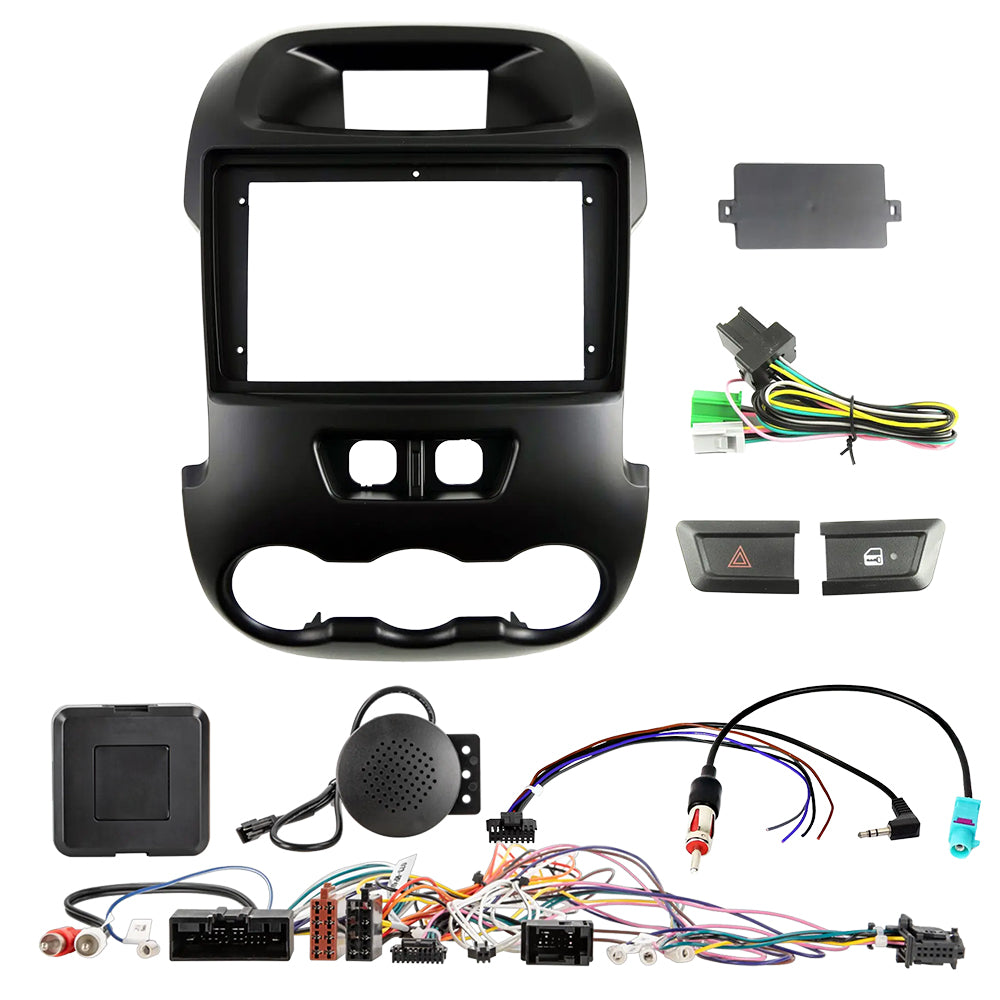

Included in the Kit

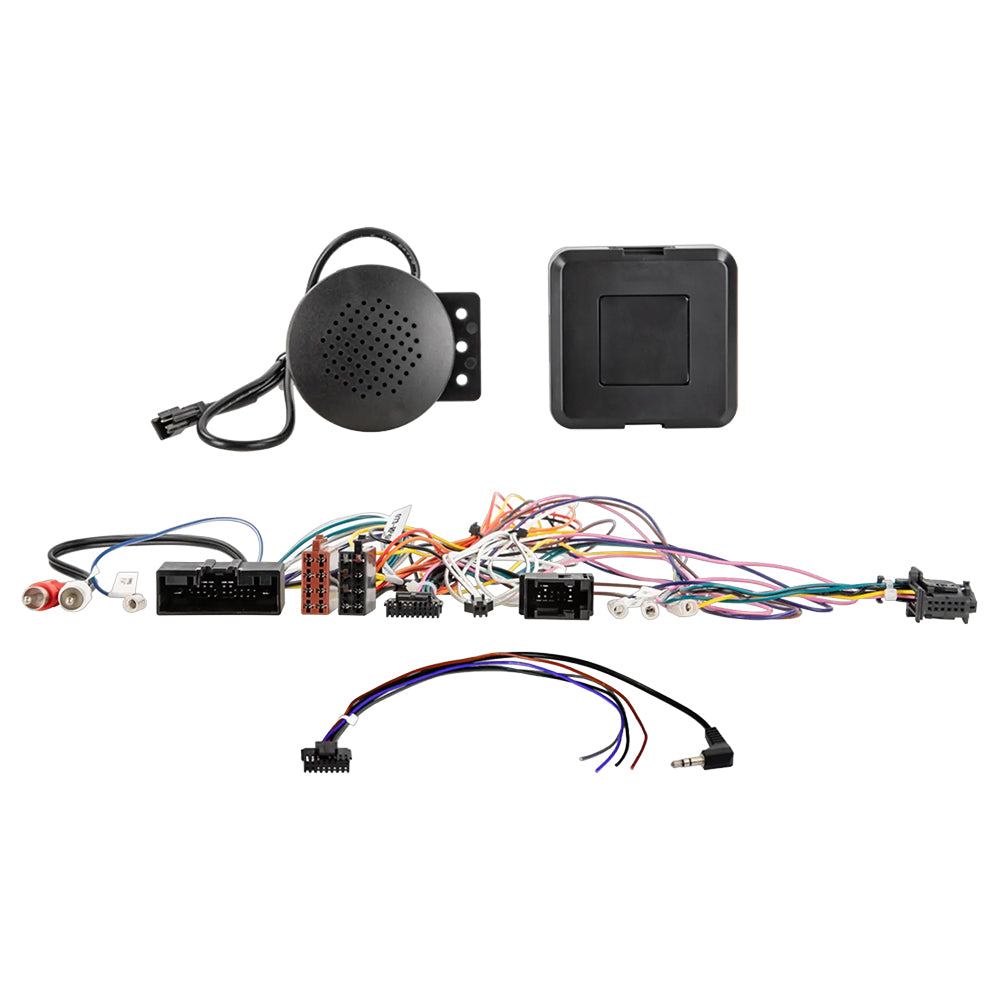

- CAN Bus interface
- 24-pin Ford connector
- Universal head unit connection lead
- Vehicle chime and rear parking sensor speaker

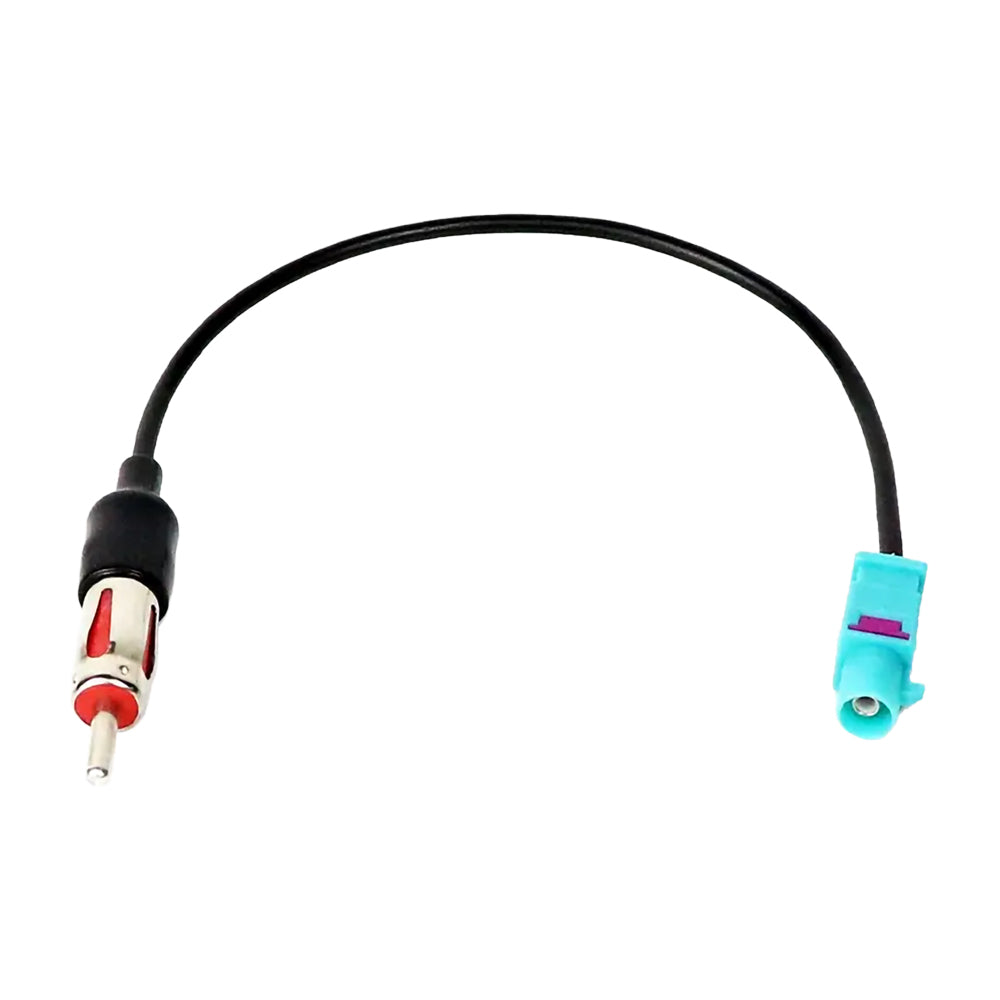

- Vehicle-specific antenna adapter

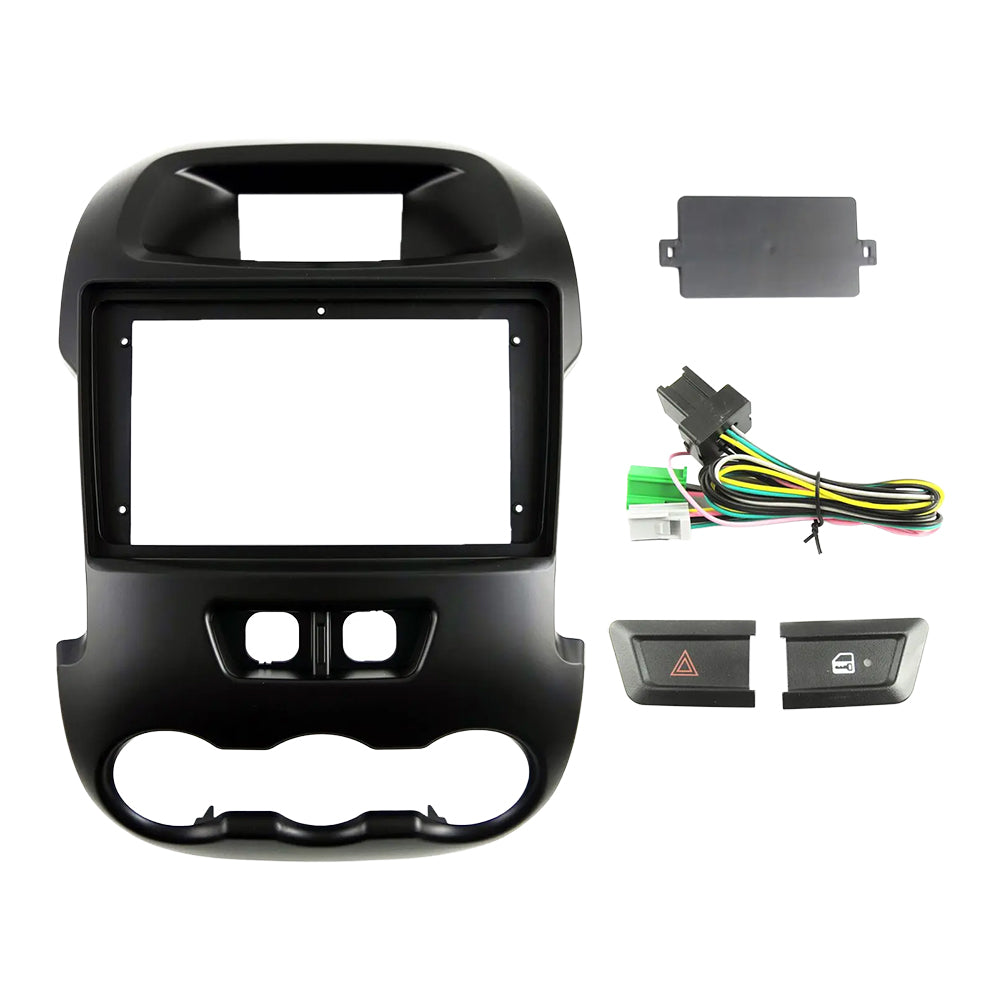

- Vehicle-specific fascia panel
- Warning/door lock switches with connection loom
Specifications
Head unit size: 9 inch
Head unit top width: 228 mm
Head unit bottom width: 218 mm
Head unit height: 130 mm
Interface outputs: speed pulse, parking brake, reverse
Retained features: steering wheel controls, vehicle settings, chimes, rear parking sensors, factory AUX (via RCA)
Low stock
Compatibility
Logistics Information
| SKU | F9FD1 |
| Product Type | 9 inch Head Unit Installation Kit |
| EAN/GTIN | 7394409047777 |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
