Land Rover Freelander 07-15 9 inch Head Unit Installation Kit
Land Rover Freelander 07-15 9 inch Head Unit Installation Kit
F9LR3 is a 9 inch head unit installation kit for Land Rover Freelander 2007-2015. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9 inch Installation Kit
- Head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For Land Rover Freelander 2007-2015
- Includes vehicle-specific fascia panel
- Includes CAN/MOST interface
- Includes MOST loop
- Includes antenna adapter
- Includes head unit connection lead
9 inch Installation Kit
This installation kit allows a 9 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.
The included CAN/MOST interface supports integration with the factory MOST amplified audio system and provides reverse, speed pulse, illumination and parking brake outputs for the aftermarket head unit installation.
The kit is supplied with a head unit connection lead for connection to supported aftermarket head units. A head unit with RCA pre-out is required for audio connection.

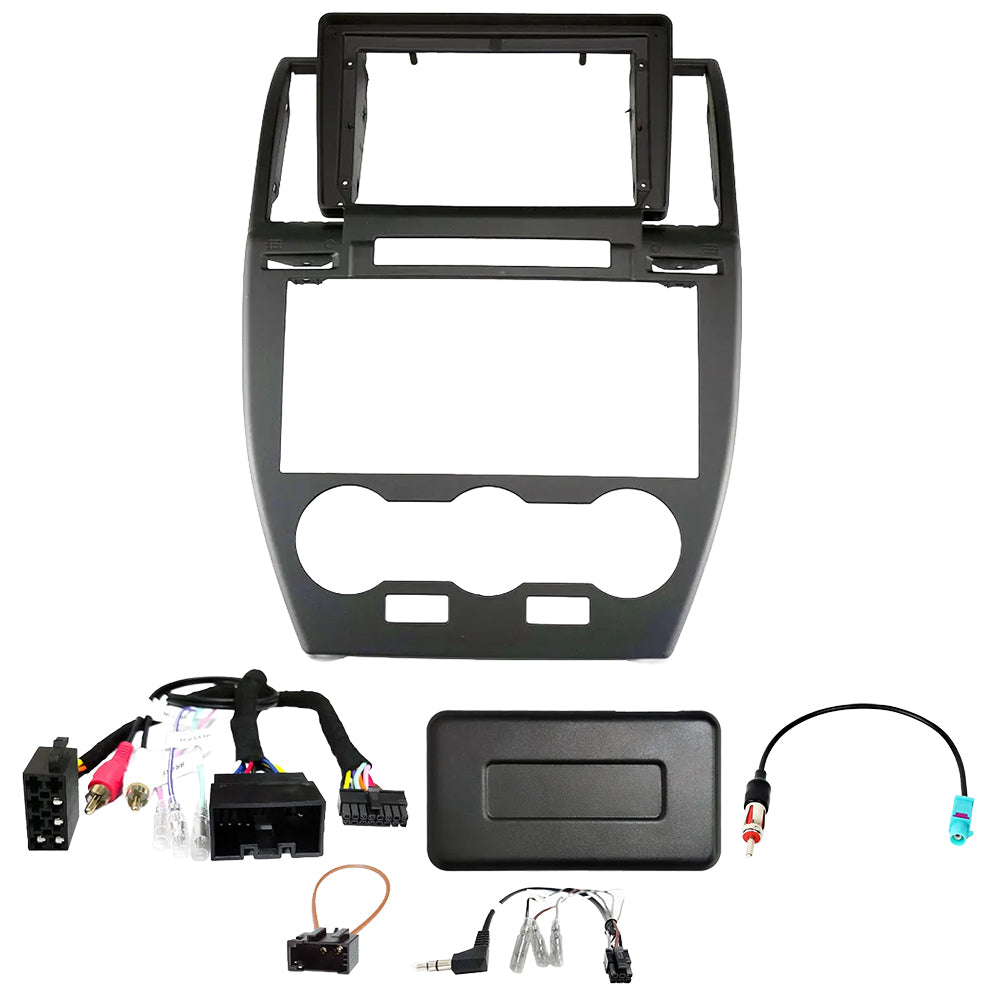

Included in the Kit

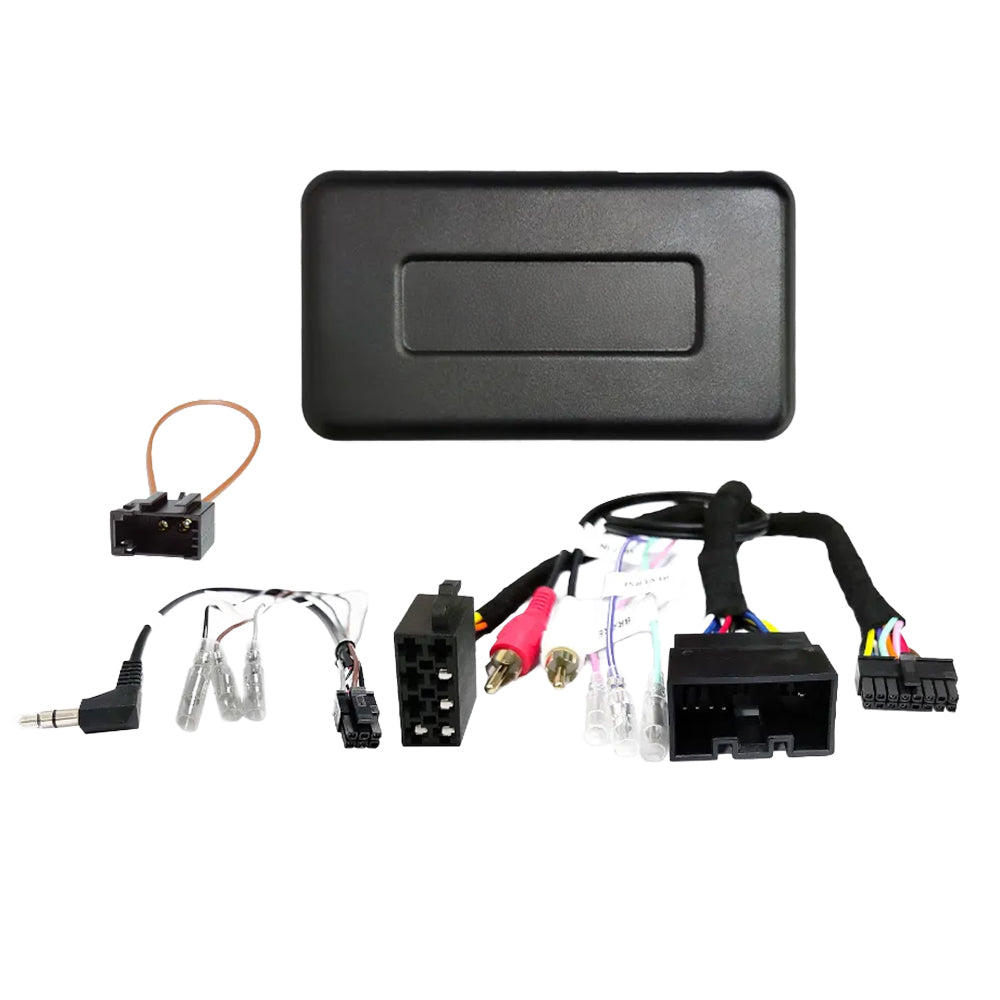

- CAN/MOST interface
- MOST loop

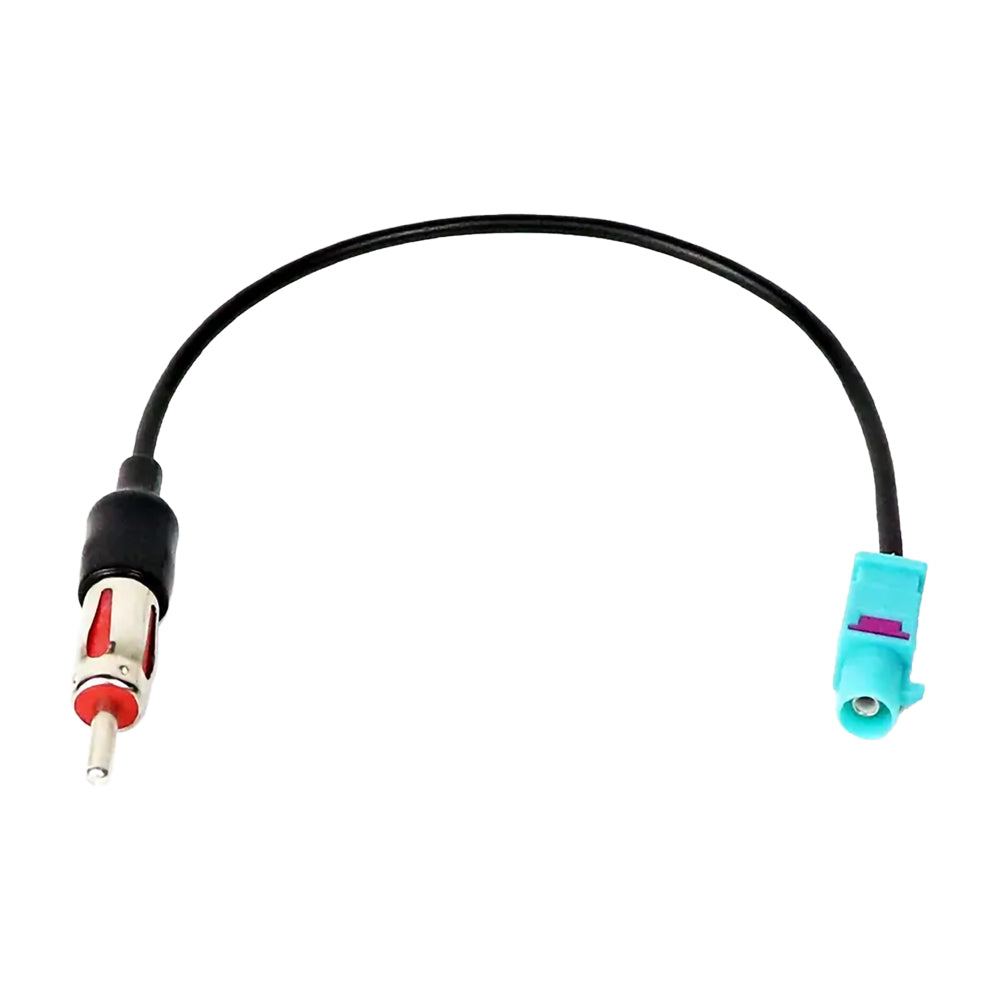

- Vehicle-specific antenna adapter
- Head unit connection lead

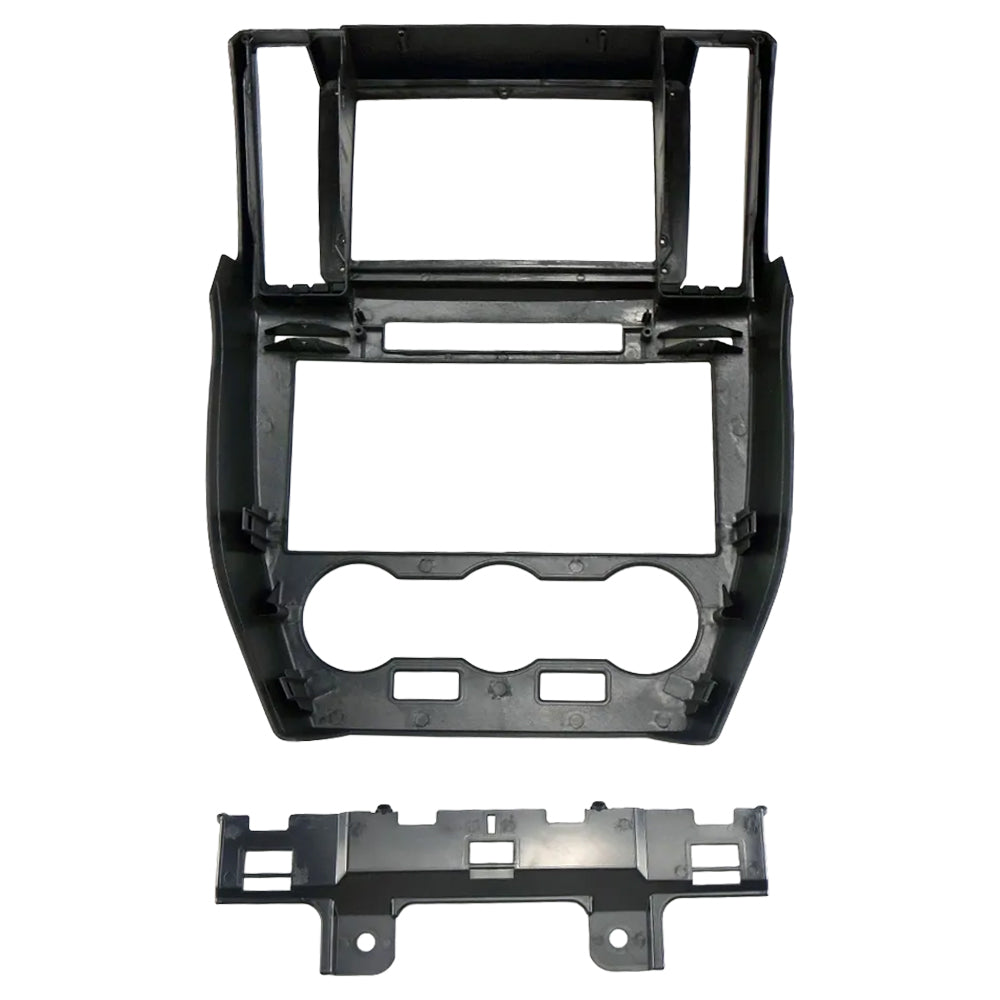

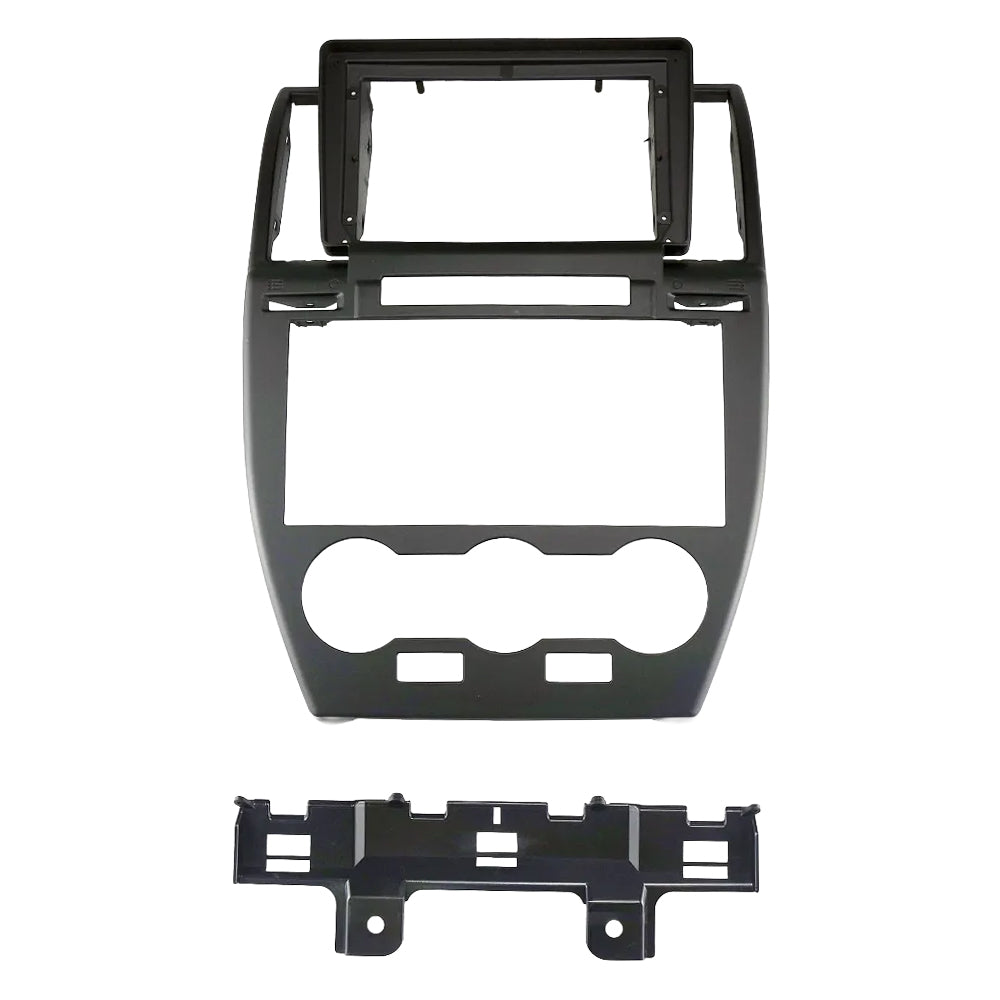

- Vehicle-specific fascia panel
Specifications
Head unit size: 9 inch
Head unit top width: 228 mm
Head unit bottom width: 218 mm
Head unit height: 130 mm
Interface outputs: reverse, speed pulse, illumination, parking brake
Retained features: MOST amplified audio system, steering wheel controls
Out of stock
Compatibility
Logistics Information
| SKU | F9LR3 |
| Product Type | 9 inch Head Unit Installation Kit |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
