Land Rover Range Rover Sport 05-09 9 inch Head Unit Installation Kit
Land Rover Range Rover Sport 05-09 9 inch Head Unit Installation Kit
F9LR5 is a 9 inch head unit installation kit for Land Rover Range Rover Sport 2005-2009. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9 inch Installation Kit
- Head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For Land Rover Range Rover Sport 2005-2009
- With steering wheel control interface
- Includes vehicle-specific fascia panel
- Includes CAN/MOST steering wheel control interface
- Includes vehicle-specific antenna adapter
- Includes universal head unit connection lead
9 inch Installation Kit
This installation kit allows a 9 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.
The included CAN/MOST steering wheel control interface supports integration with the factory MOST amplified audio system and provides speed pulse, parking brake and reverse outputs for the aftermarket head unit installation. It is supplied with a 20-pin Land Rover connector for vehicle-specific connection.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

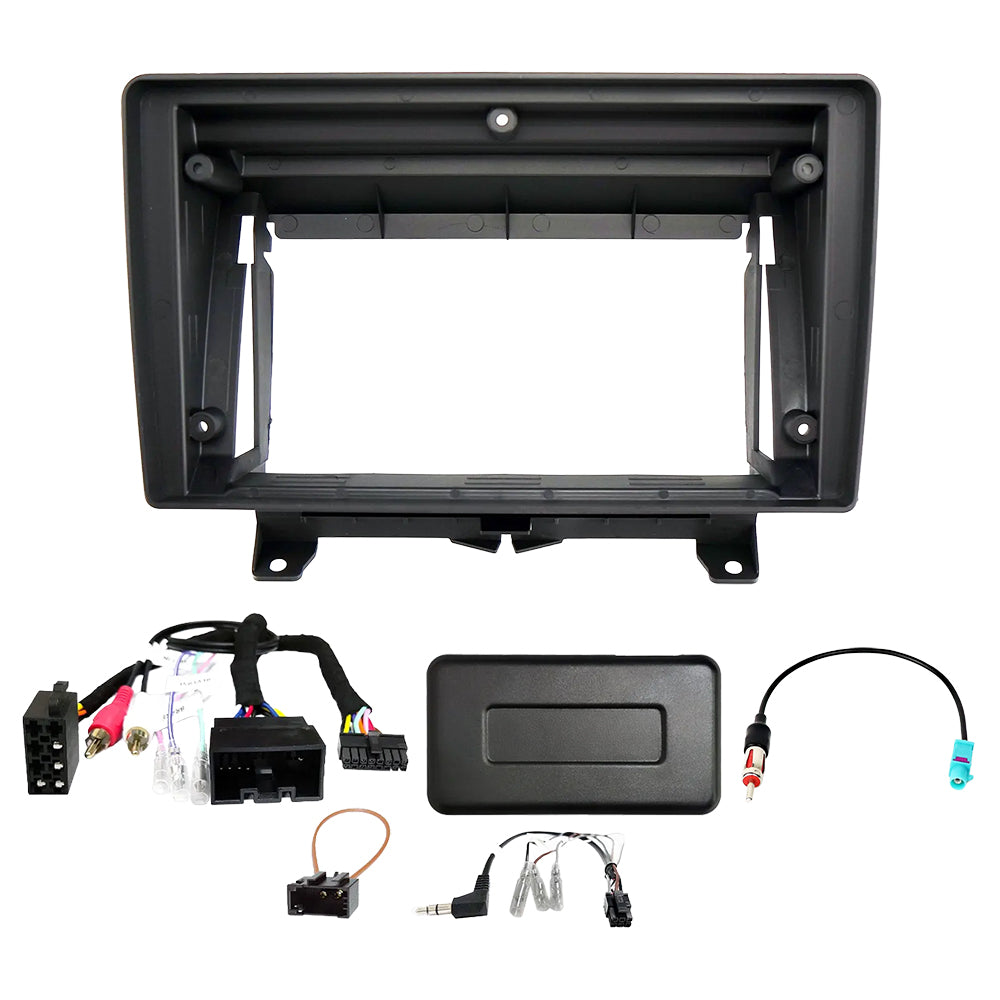

Included in the Kit

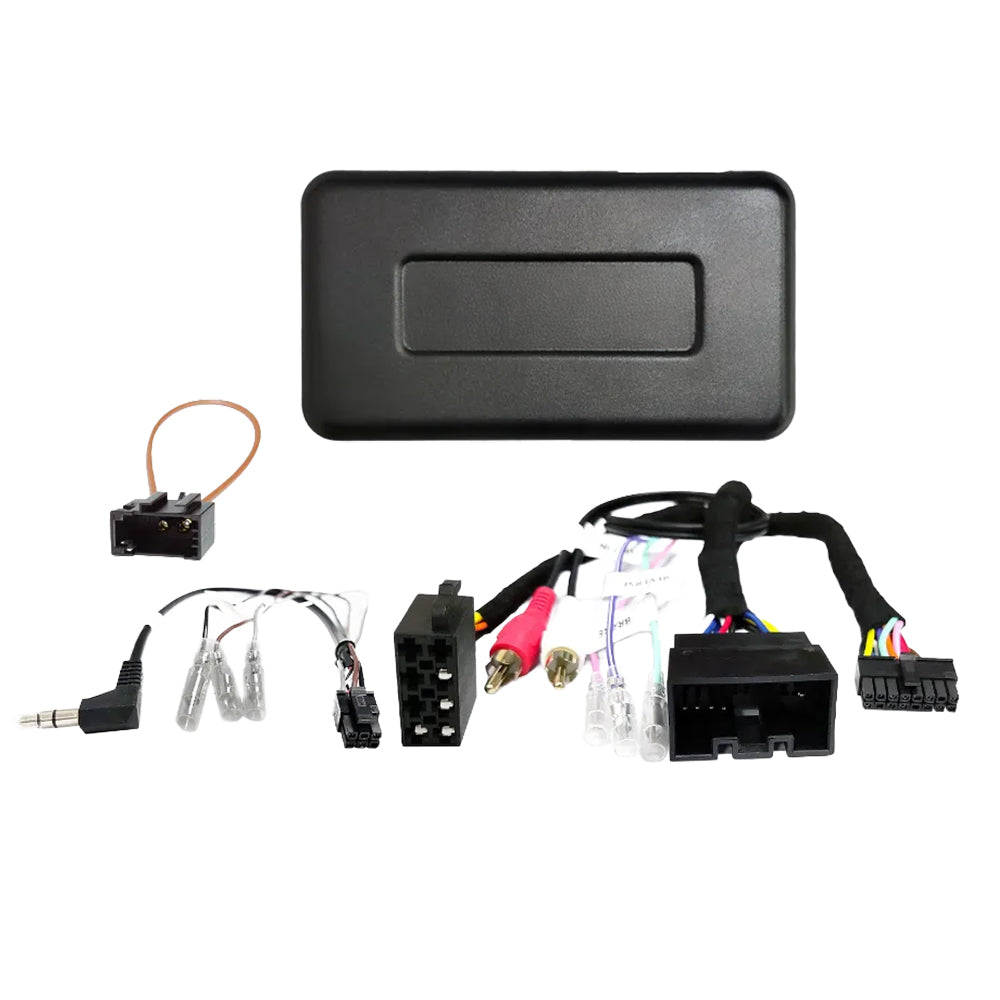

- CAN/MOST interface
- 20-pin Land Rover connection loom

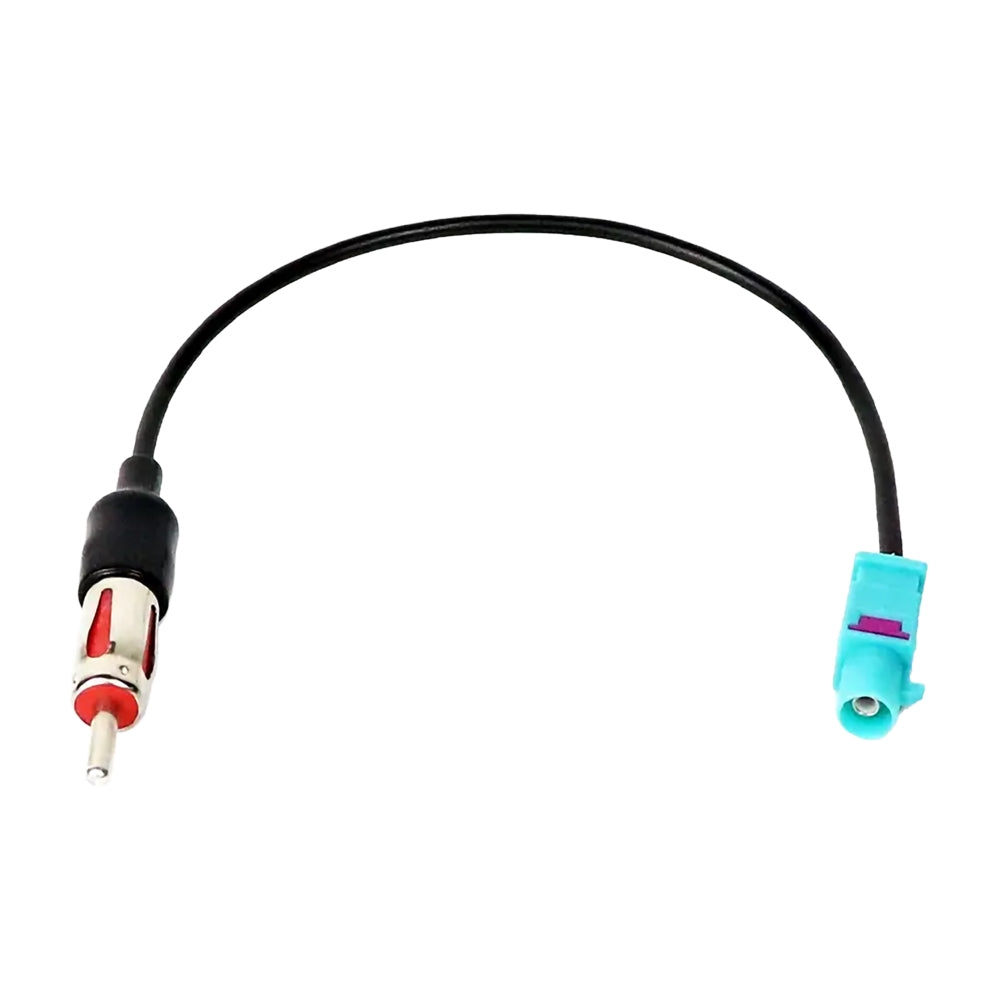

- Vehicle-specific antenna adapter

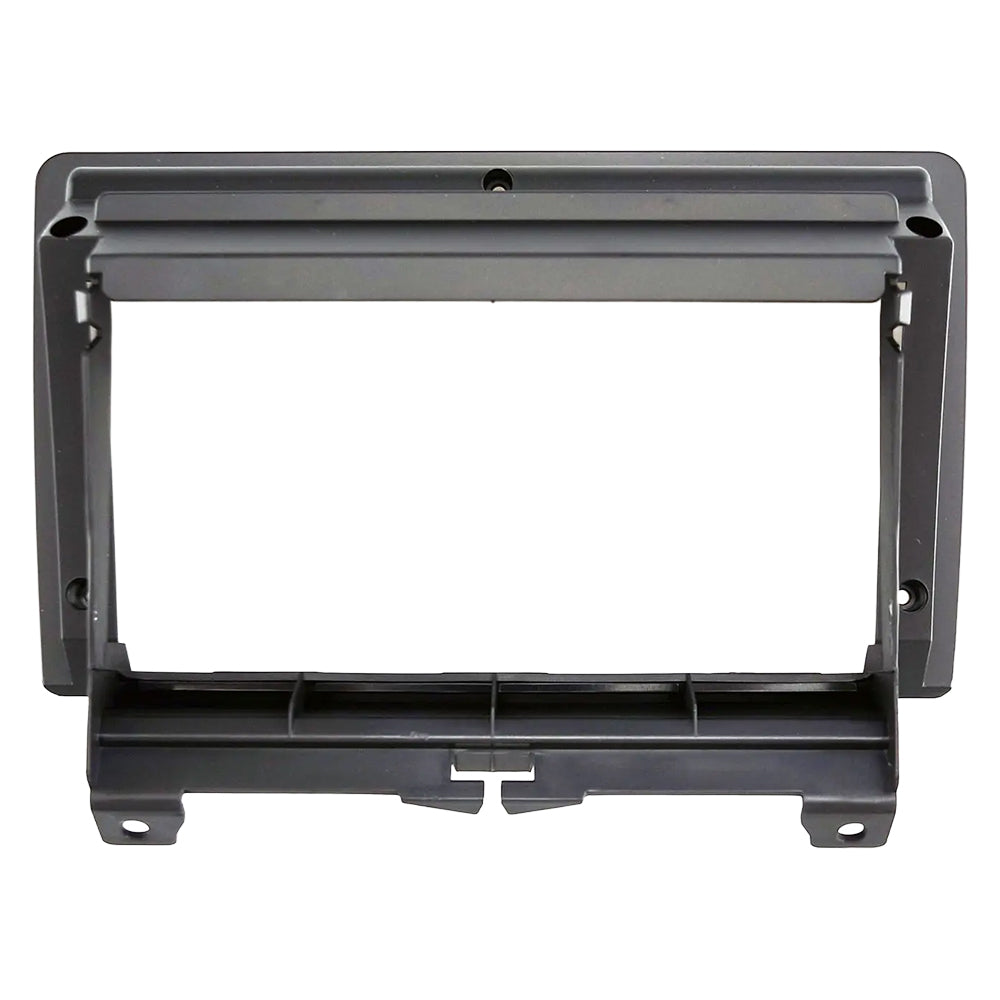

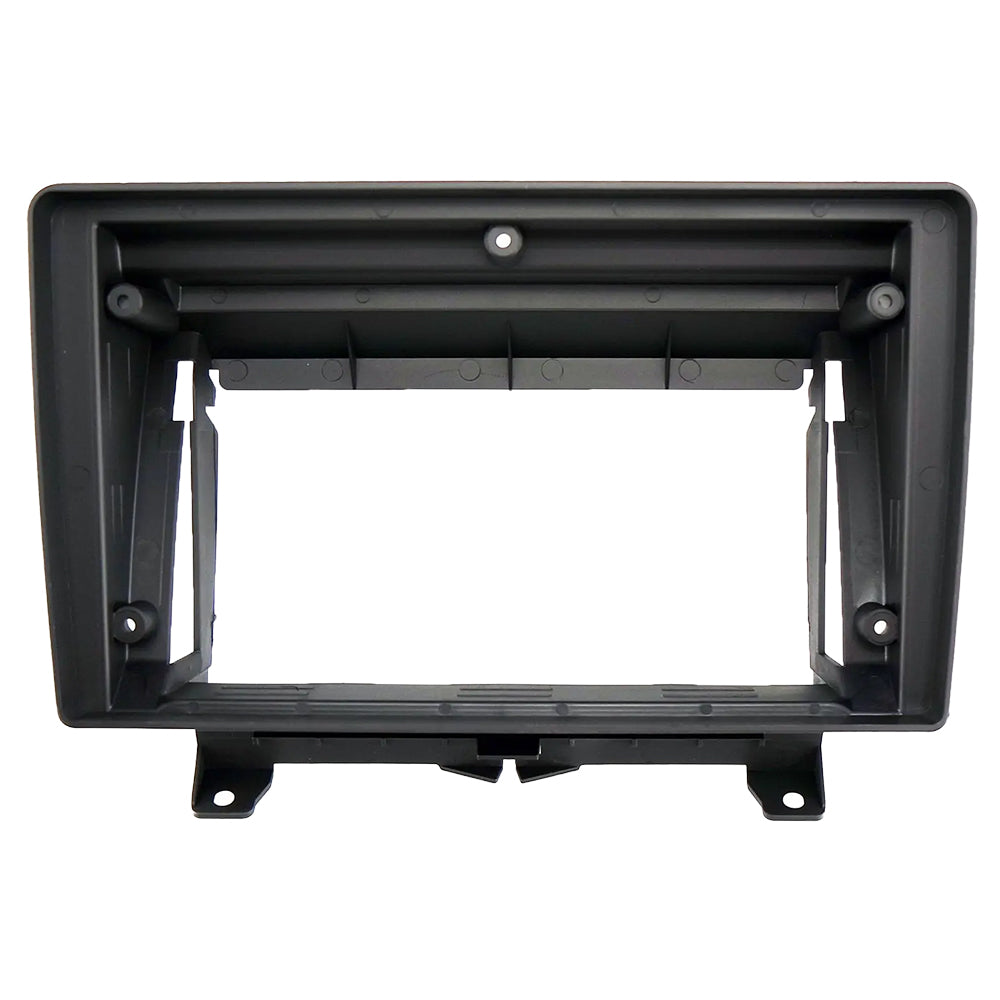

- Vehicle-specific fascia panel
- Universal head unit connection lead
Specifications
Head unit size: 9 inch
Head unit top width: 228 mm
Head unit bottom width: 218 mm
Head unit height: 130 mm
Interface outputs: speed pulse, parking brake, reverse
Retained features: steering wheel controls, MOST amplified audio system
Out of stock
Compatibility
Logistics Information
| SKU | F9LR5 |
| Product Type | 9 inch Head Unit Installation Kit |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
