Nissan Navara 15-21 9/10.1 inch Head Unit Installation Kit
Nissan Navara 15-21 9/10.1 inch Head Unit Installation Kit
F9NS8 is a 9/10.1 inch head unit installation kit for Nissan Navara 2015-2021. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9/10.1 inch Installation Kit
- 10.1 inch head unit dimensions: 251/241 x 146 mm
- 9 inch head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For Nissan Navara 2015-2021
- With steering wheel control interface
- Includes CAN Bus interface
- Includes 20-/24-pin connection loom
- Includes 10.1 to 9 inch reducer plate
9/10.1 inch Installation Kit
This installation kit allows a 9 or 10.1 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.
The included CAN Bus steering wheel control interface provides reverse, speed pulse and parking brake outputs for the aftermarket head unit installation. It also retains steering wheel controls, the factory USB connection and the factory camera.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

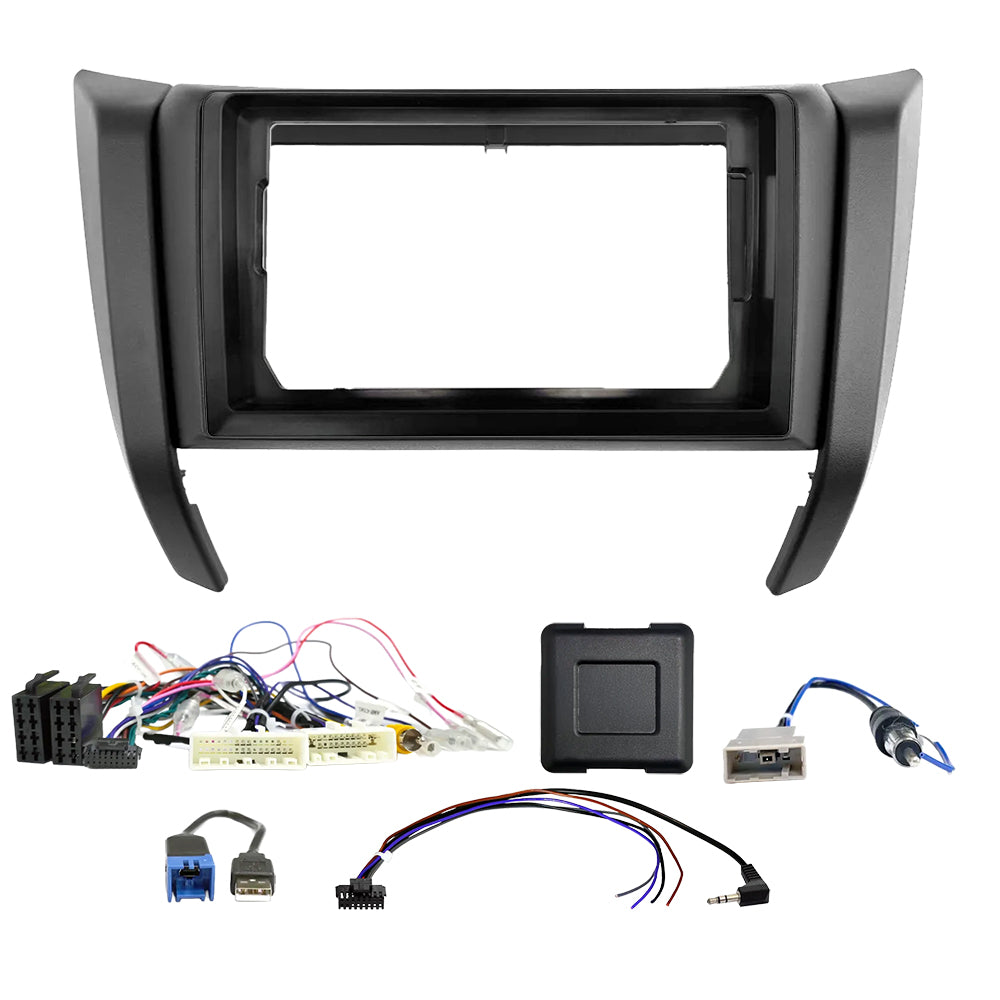

Included in the Kit

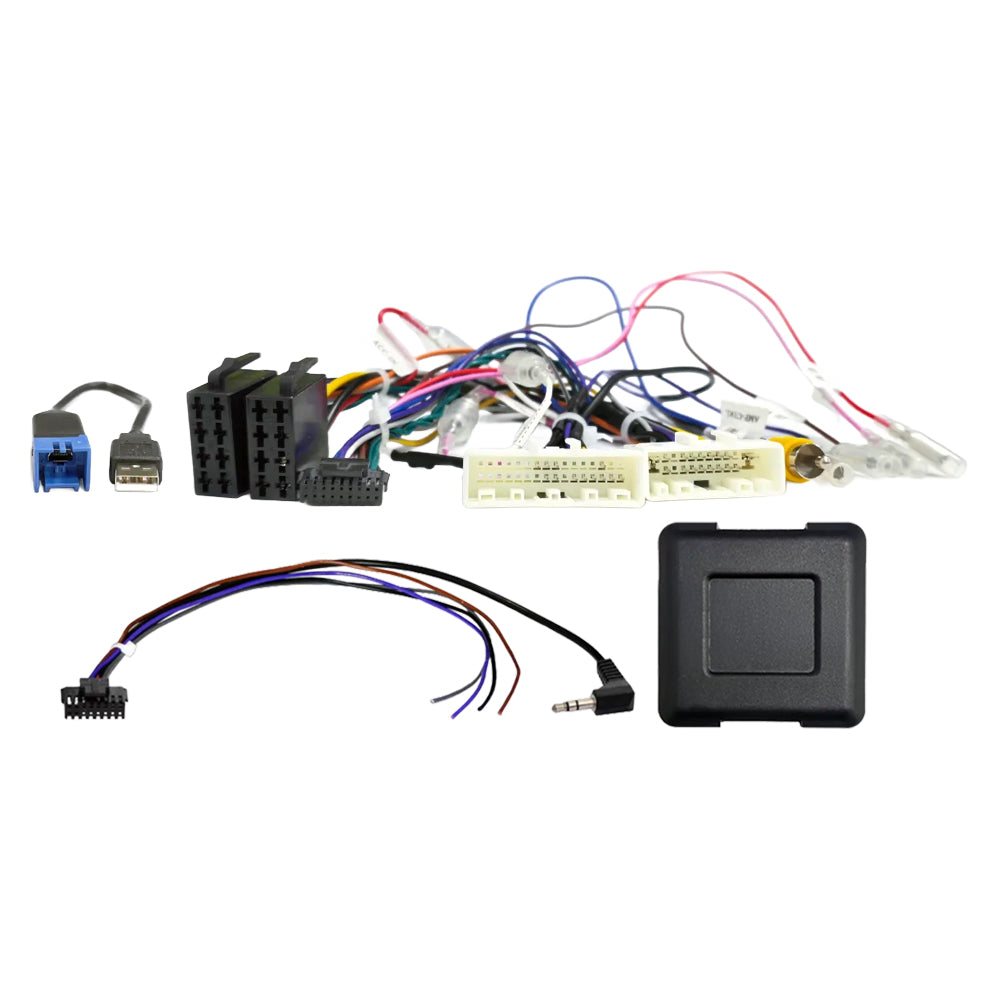

- CAN Bus steering wheel control interface
- 20-/24-pin connection loom

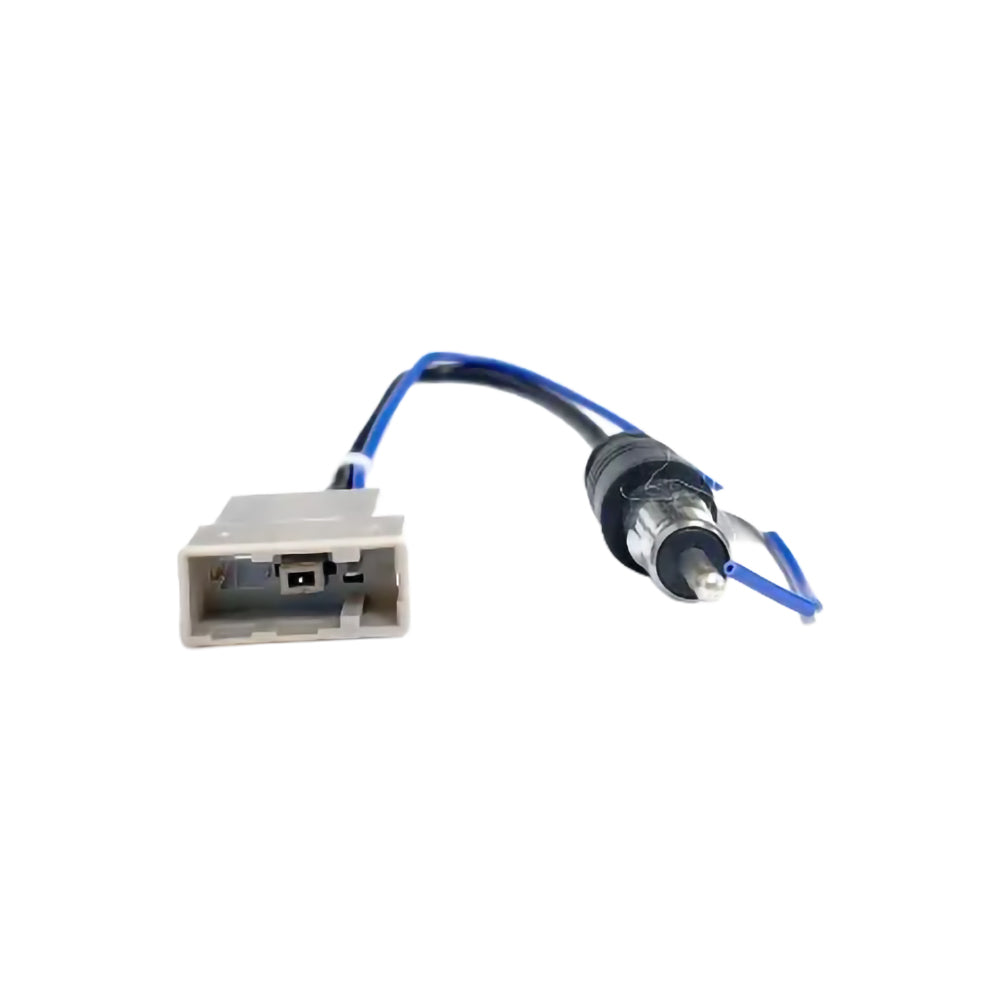

- Vehicle-specific antenna adapter

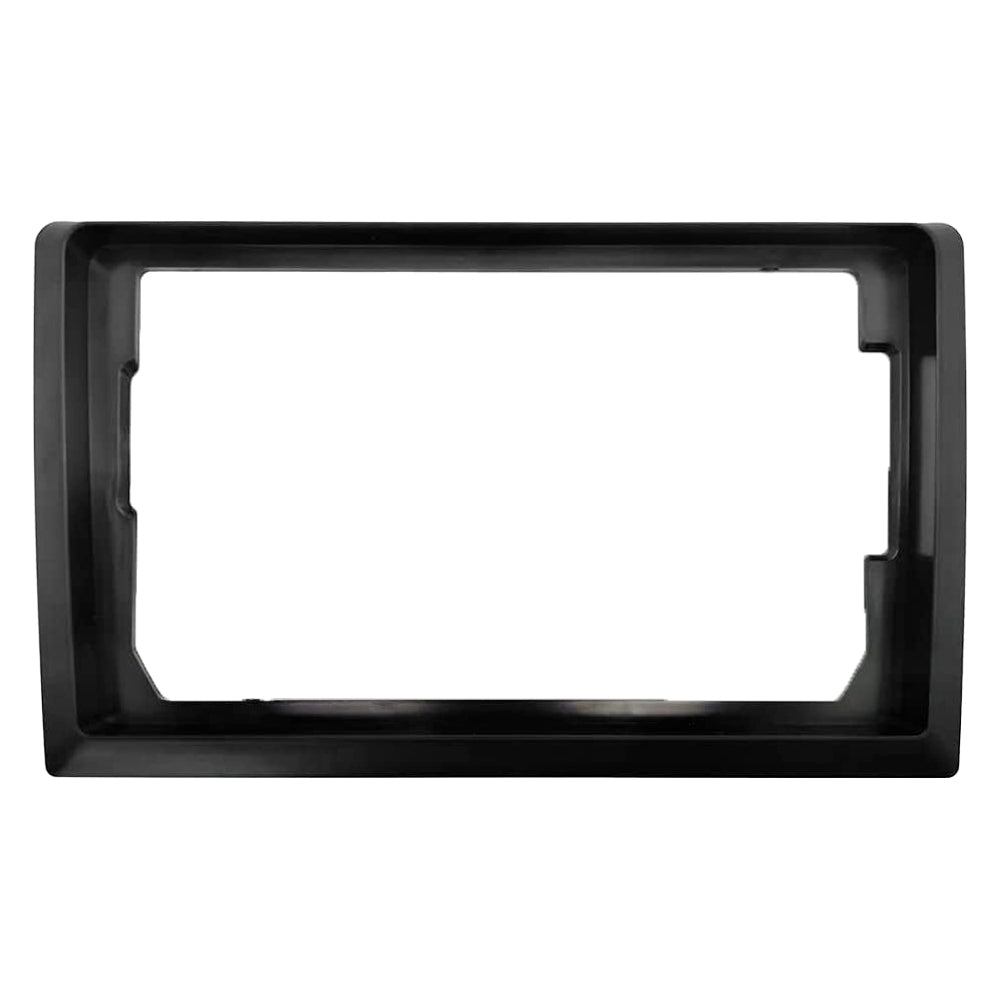

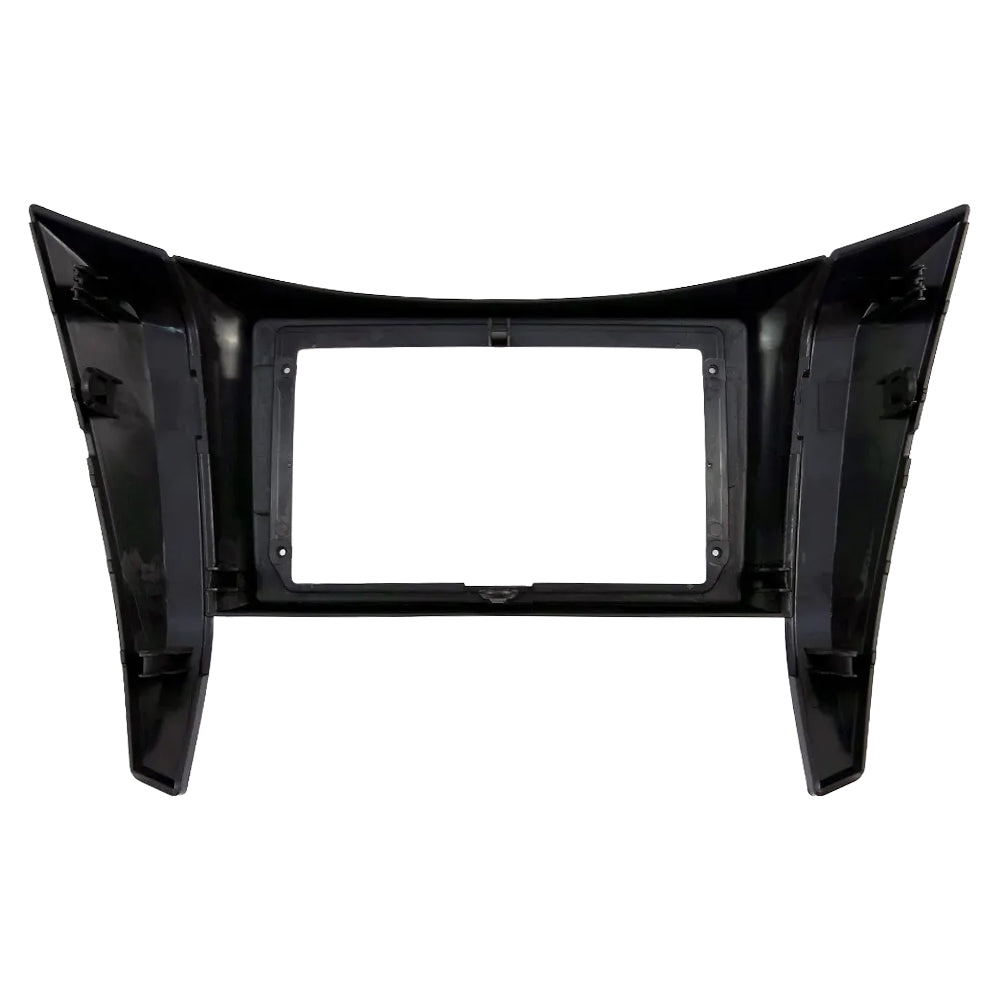

- Vehicle-specific fascia panel
- Universal head unit connection lead
- USB retention adapter
- 10.1 to 9 inch reducer plate
Specifications
Head unit size: 9/10.1 inch
9 inch head unit top width: 228 mm
9 inch head unit bottom width: 218 mm
9 inch head unit height: 130 mm
10.1 inch head unit top width: 251 mm
10.1 inch head unit bottom width: 214 mm
10.1 inch head unit height: 146 mm
Interface outputs: reverse, speed pulse, parking brake
Retained features: steering wheel controls, factory USB, factory camera
