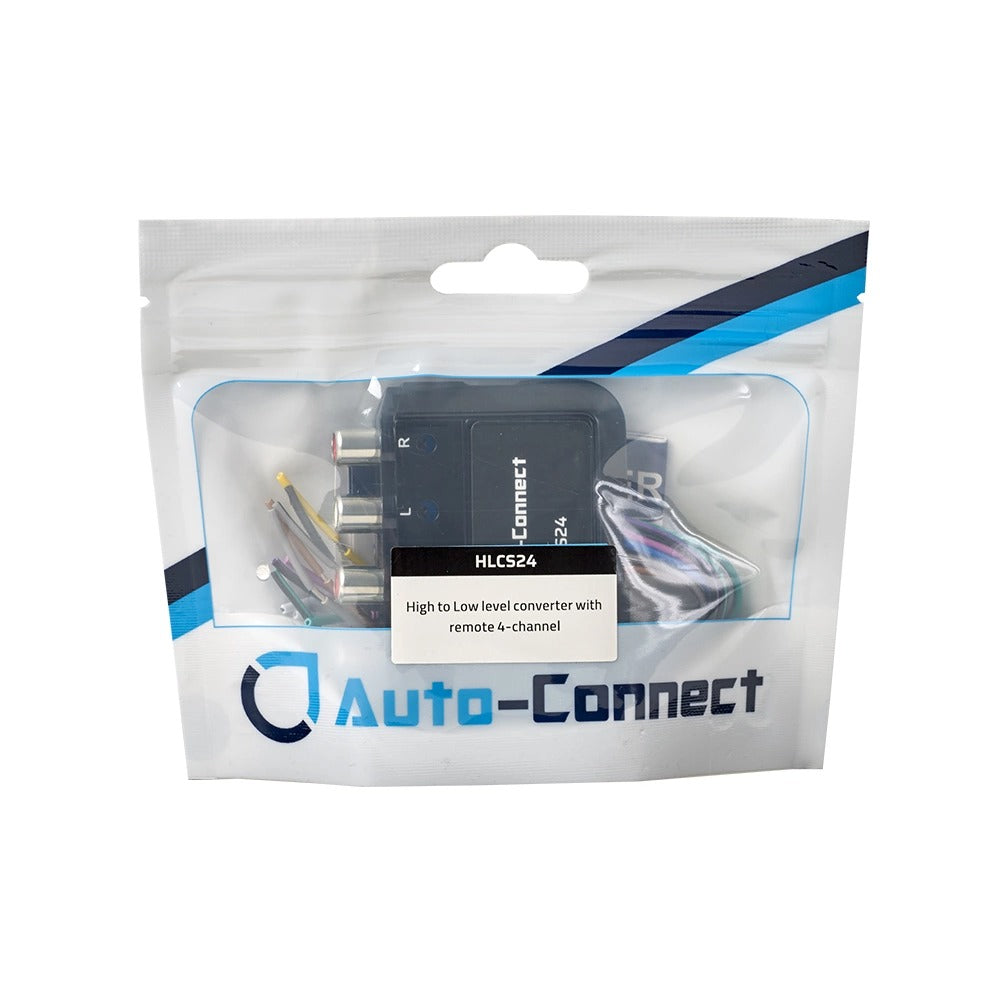

HLCS24 is a 4-channel line-out converter (high level to low level) that seamlessly converts your vehicles factory high-level signal to a low-level signal (RCA) that aftermarket accessories can use.
- High-to-Low Signal Converter
- Four channels
- 150W RMS power handling (per input)
- Symmetric input circuits for reduced noise
- Works with cars with OEM amplifiers
- Adjustable signal output
- Auto turn-on (remote)
Line Out Converter
This simple line out converter adapts your vehicle's factory high level signal to a low level signal that your amplifiers can use. Thanks to the high 150W RMS power handling per channel and adjustable signal output, this is the perfect all-round accessory no matter if your car has a factory amplifier powering the high level signal, or just the head unit. The RCA outputs are the output from the converter. Adjust the potentiometers to control the output signal strength.
Installation Guidelines
White Wire: Front left speaker +
White/Black Wire: Front left speaker -
Grey Wire: Front right speaker +
Grey/Black Wire: Front right speaker -
Green Wire: Rear left speaker +
Green/Black Wire: Rear left speaker -
Purple Wire: Rear right speaker +
Purple/Black Wire: Rear right speaker -
Yellow Wire: +12V (constant)
Black Wire: Ground
Blue Wire: Remote Turn-on
Brown Wire: Signal Ground
Always start by leaving the brown wire disconnected. If you experience alternator whine or other noise, the brown wire can be grounded to prevent this.
Specifications
Step-down ratio: 6:1
Channels: 4
