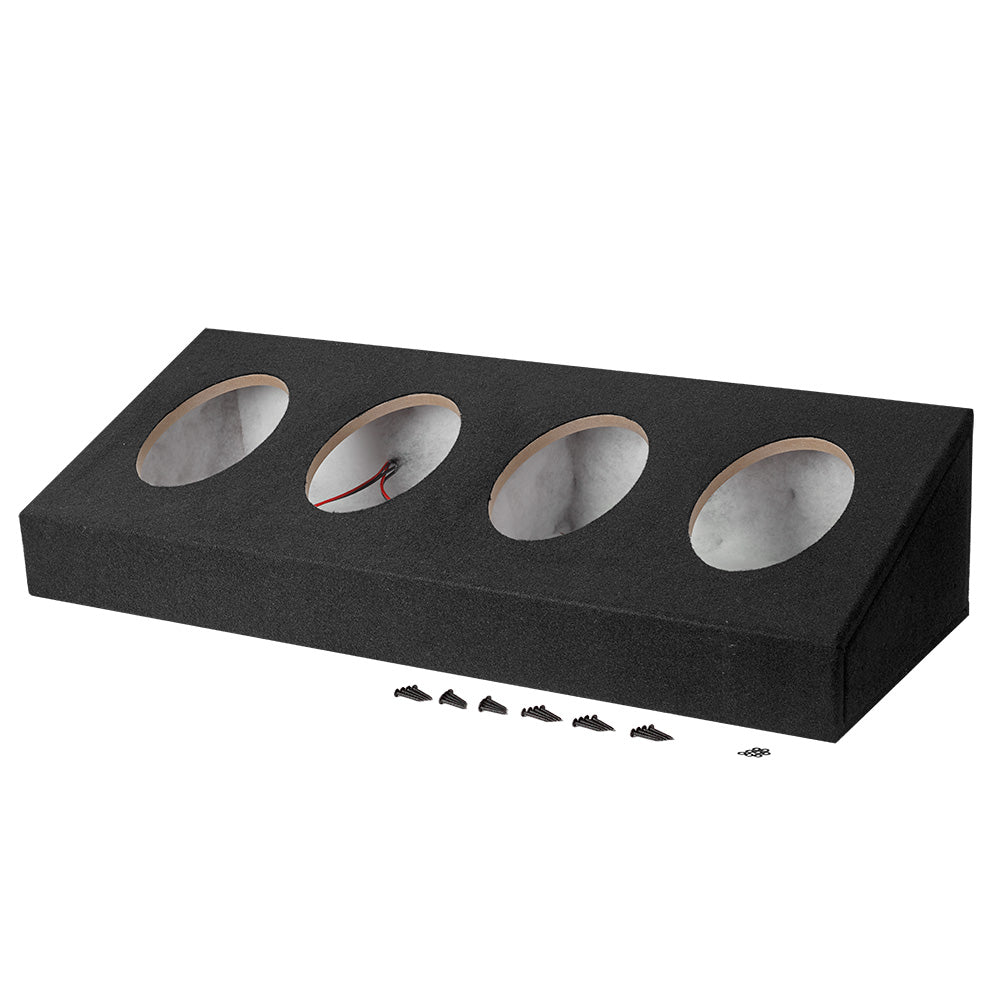

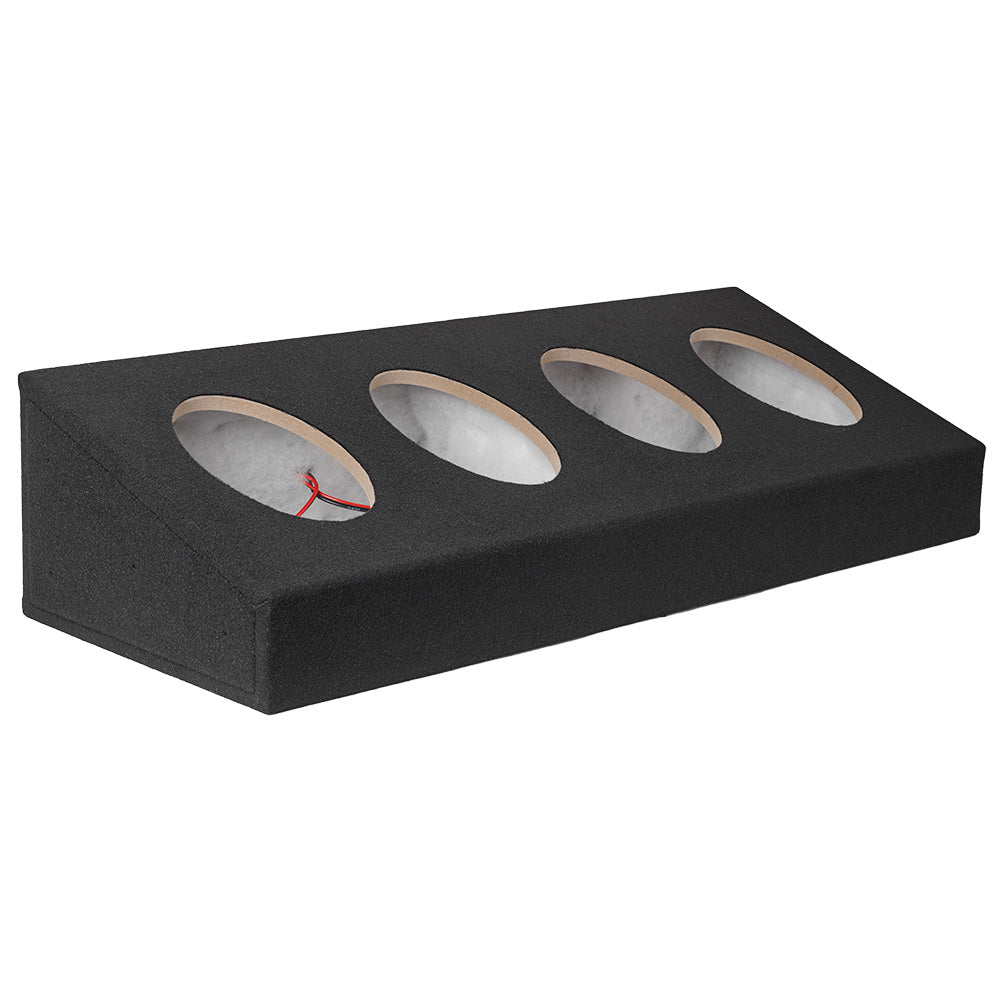

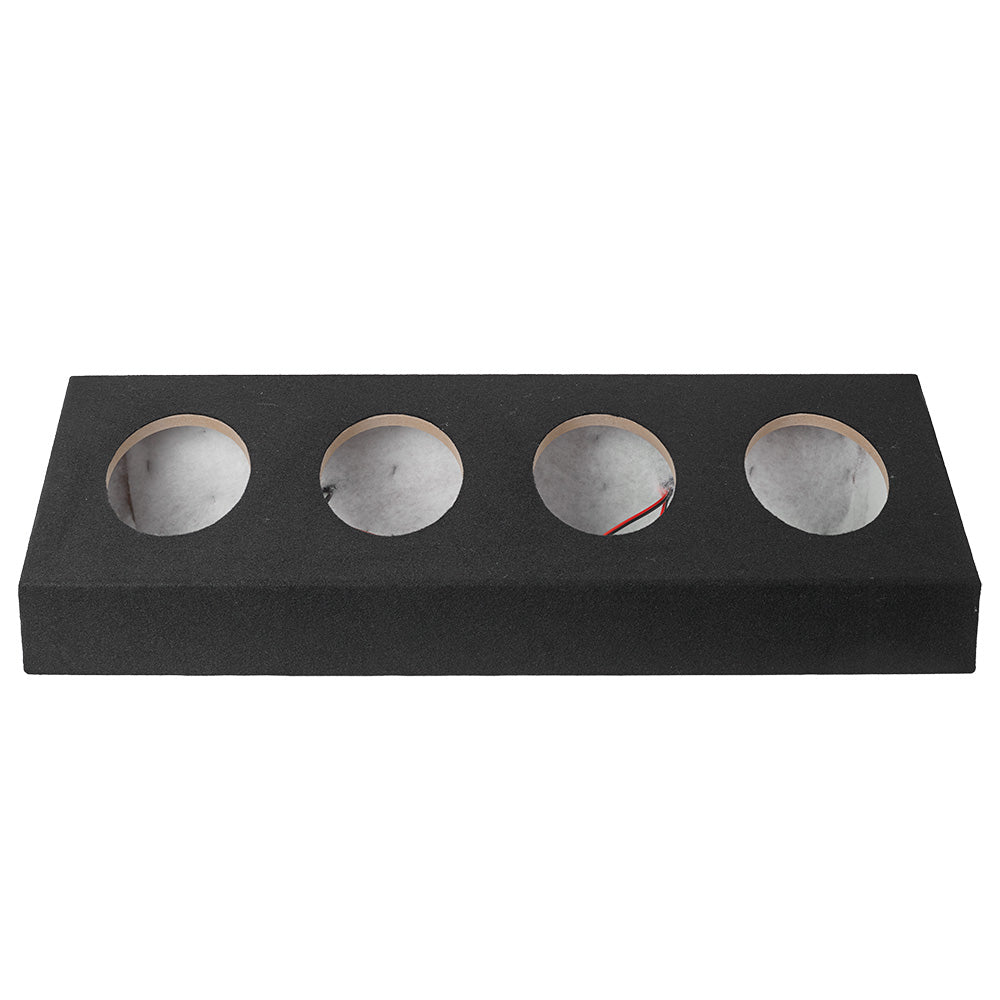

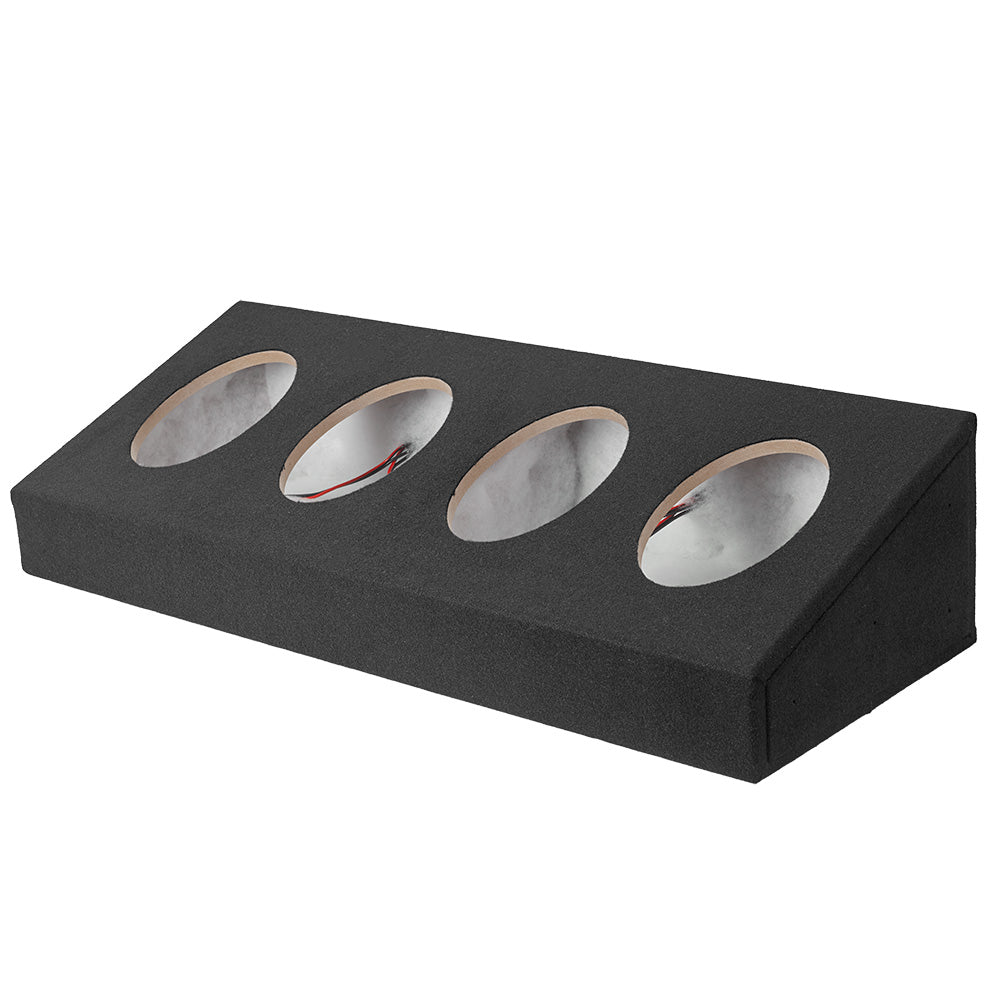

SVE469 is a sealed/vented SPL speaker enclosure for four 6x9 inch speakers. This speaker enclosure is finished with a pleasant black carpet, and thanks to a smart adjustable vented/sealed design makes it easy to make sure your speakers perform at their very best.
- 4x 6x9" SPL Enclosure
- Built from 12 mm MDF
- Works both sealed and vented

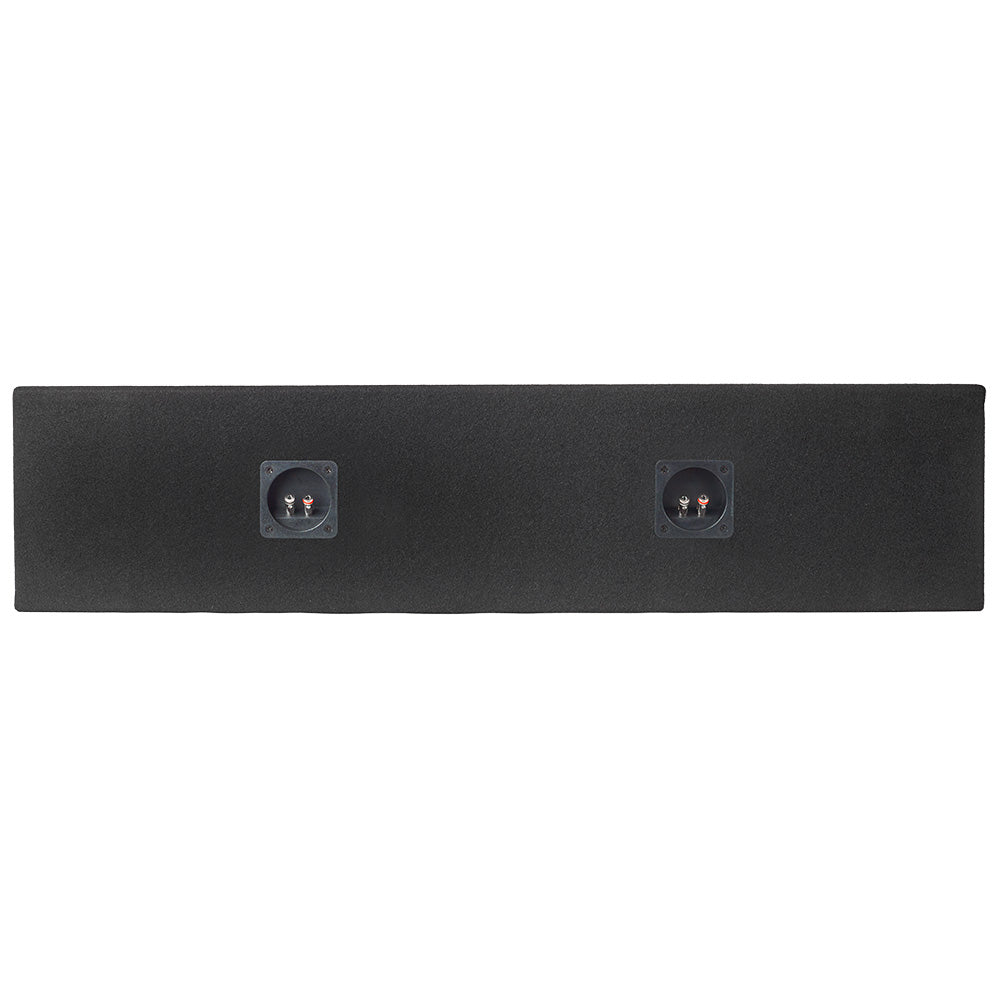

- Push terminals with speaker wire
- Two chambers, left and right
- Net volume: 21 L / 0.74 ft³ per chamber
- 68Hz tuning (vented)
- Damping wool
Vented or Sealed SPL Enclosure?

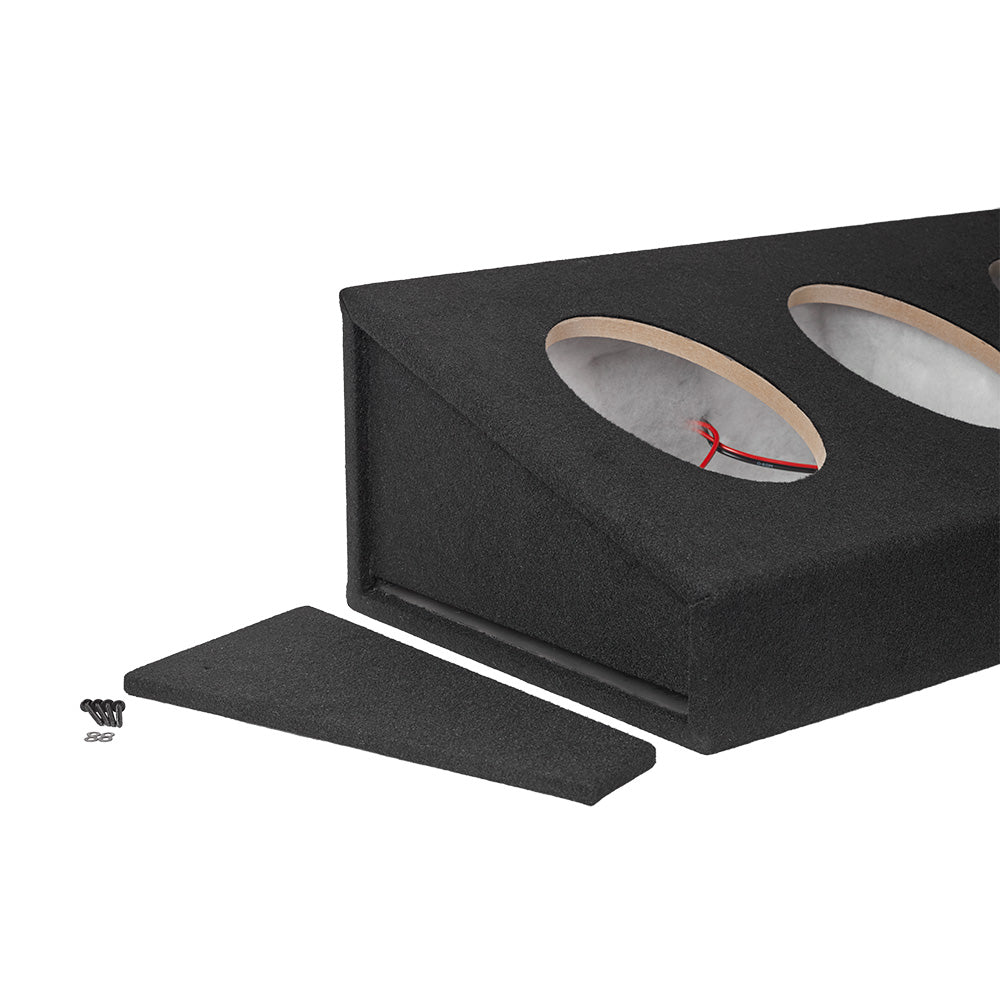

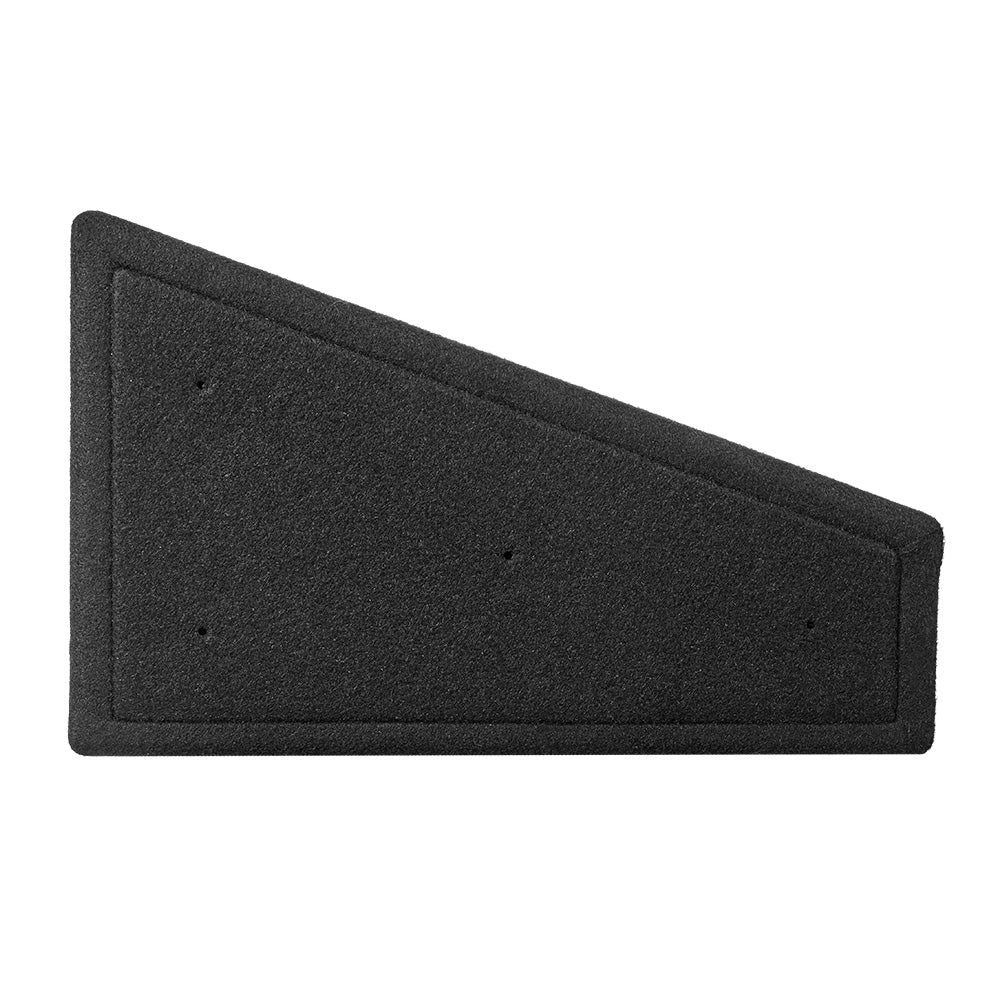

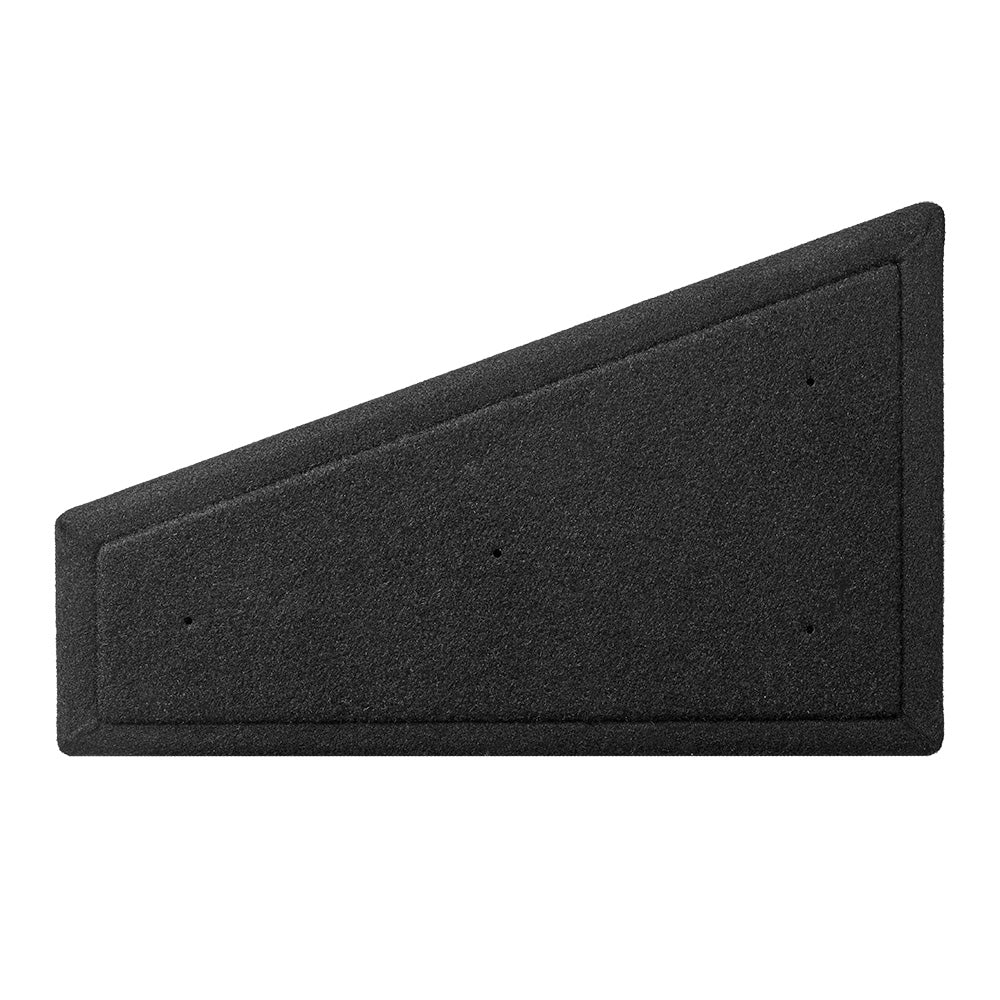

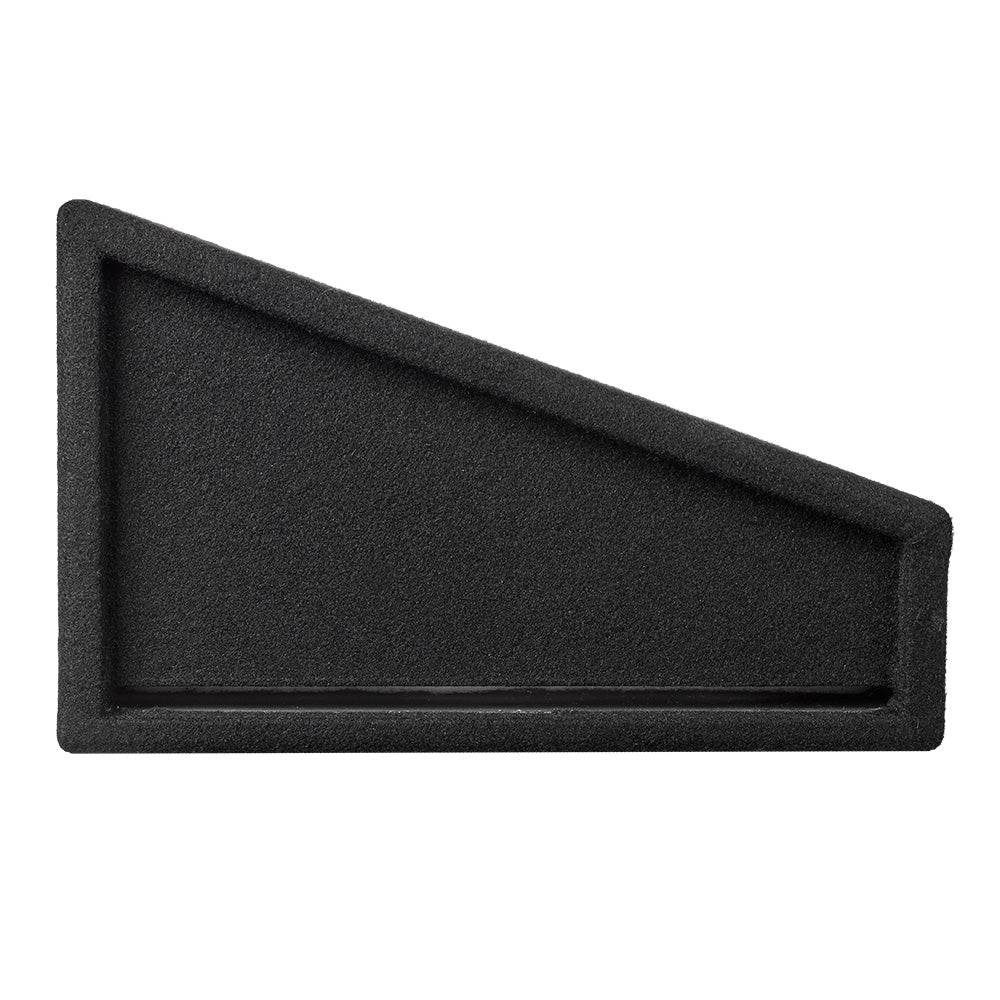

This SPL enclosure features a well-thought-out design that allows you to easily switch between ported and sealed configurations. Simply remove the side panels to create a vented enclosure for more punch and pressure. If you prefer a focus on sound quality, just use the included screws to secure the side panels for a sealed setup.
Specifications
Size: 4x 6x9"
Material: 12 mm MDF
Cutouts midbass: 226x155 mm
Net volume: 21 L / 0.74 ft³ per chamber
Tuning (vented): 68 Hz
Vent area: 34.6 cm² per chamber
Vent length: 37 mm
Dimensions: 980 x 231 x 370 mm
- Logistics Information
- Product Safety Information
Logistics Information
| SKU | SVE469 |
| Product Type | Speaker Enclosure |
| EAN/GTIN | 7394409045094 |
| Product Status | Active |
| Weight (each) | 12.7 kg |
| Unit | pcs |
| Packaging Dimensions (each, W x H x D) | 100.0 x 39.5 x 24.5 cm |
| Master Carton Quantity | 1 |
| Master Carton Weight | 12.7 kg |
| Master Carton Dimensions (W x H x D) | 100.0 x 39.5 x 24.5 cm |
Product Safety Information
Intended Use
This product is intended for general automotive or workshop use, as specified on the packaging or in related documentation. Use only as intended.
Safety Instructions
- Always read all labels and instructions before use.
- Keep out of reach of children.
- Use with appropriate tools and protective equipment where applicable.
- Do not modify the product.
- Avoid exposure to moisture, extreme temperatures, or physical damage.
- For electrical products: Disconnect power before installation. Ensure correct polarity and use proper fuses.
Installation & Handling
Installation or use must be carried out by a competent person. Improper handling may result in injury or damage.
Maintenance
Check regularly for damage or wear. Stop using the product if it appears damaged.
Disposal
Dispose of this product in accordance with local regulations for electrical and electronic waste or general waste, as applicable.
Manufacturer Information
Distributed by:
Winn Scandinavia AB
Idrottsvägen 37
702 32 Örebro, Sweden
winnscandinavia.com
