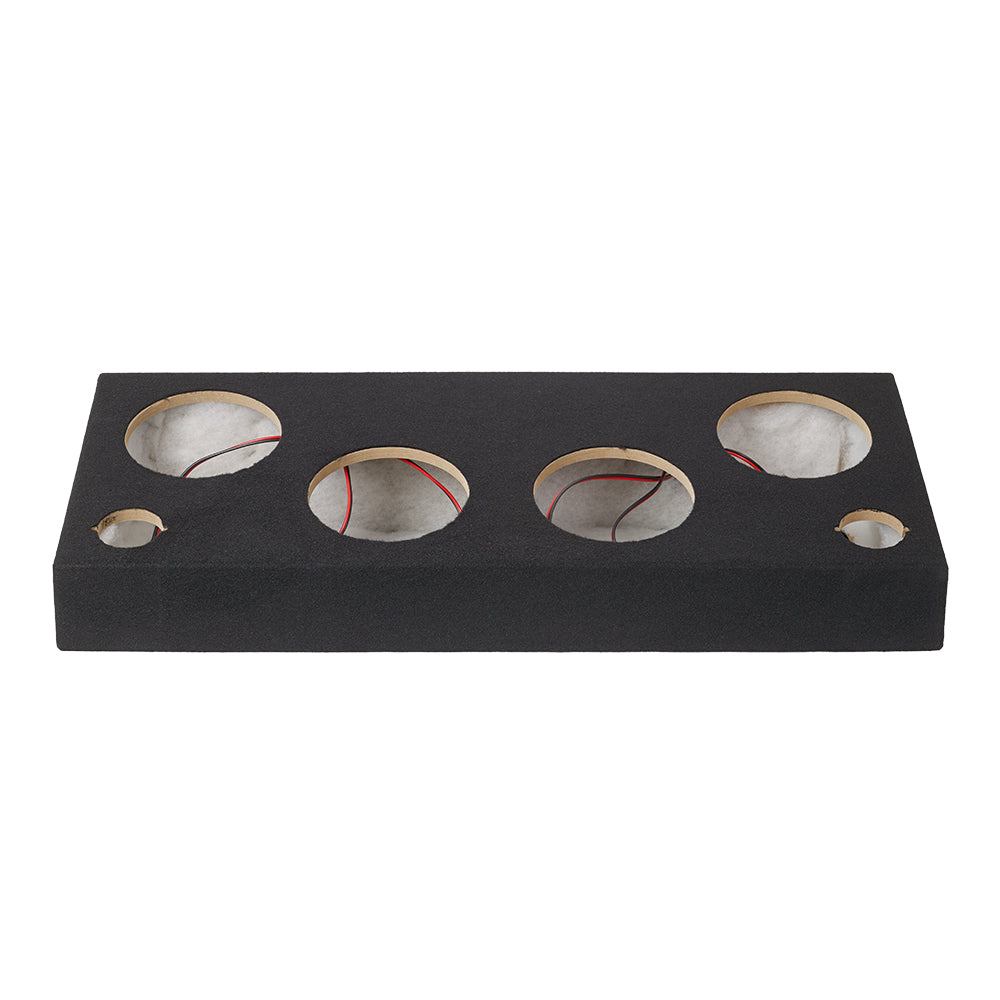

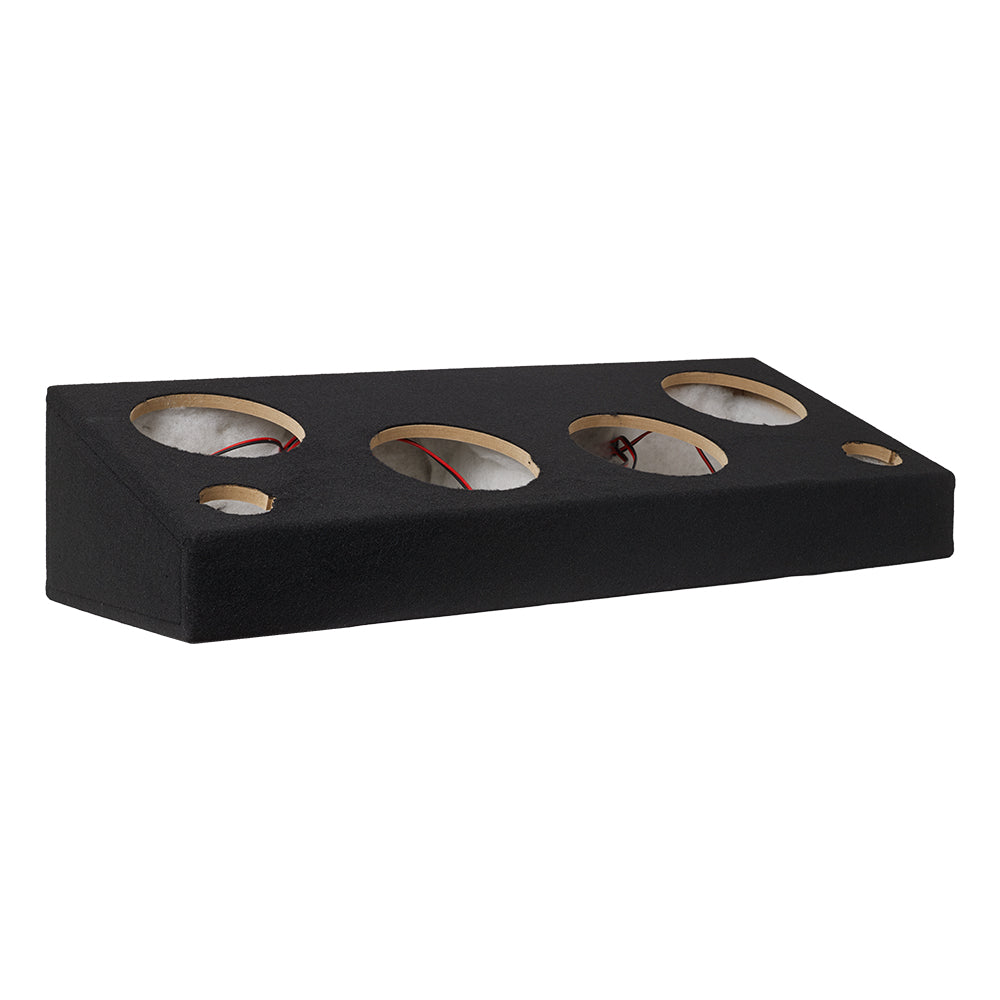

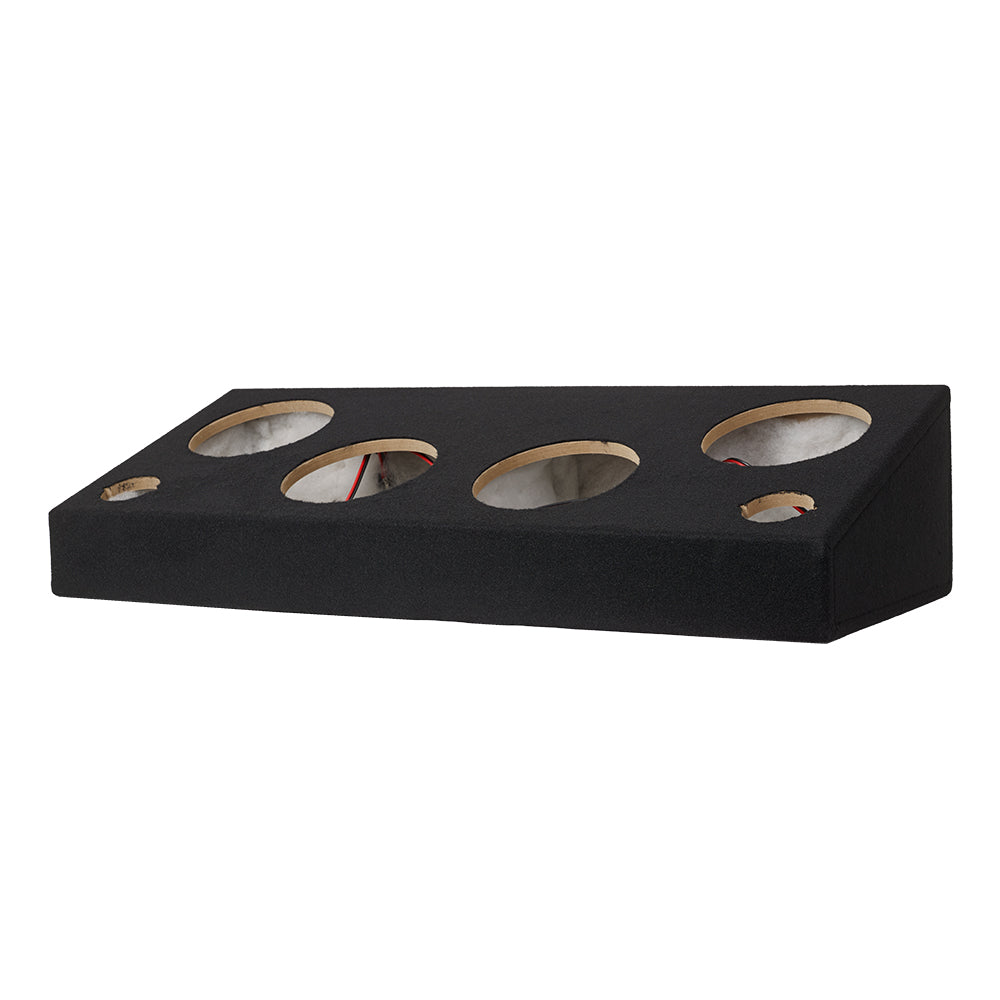

VE482SPL is a sealed/vented SPL speaker enclosure for four 8 inch speakers and two horn tweeters. This speaker enclosure is finished with a pleasant black carpet, and thanks to a smart adjustable vented/sealed design makes it easy to make sure your speakers perform at their very best.
- 4x 8" SPL Enclosure
- Built from 12 mm MDF
- Works both sealed and vented

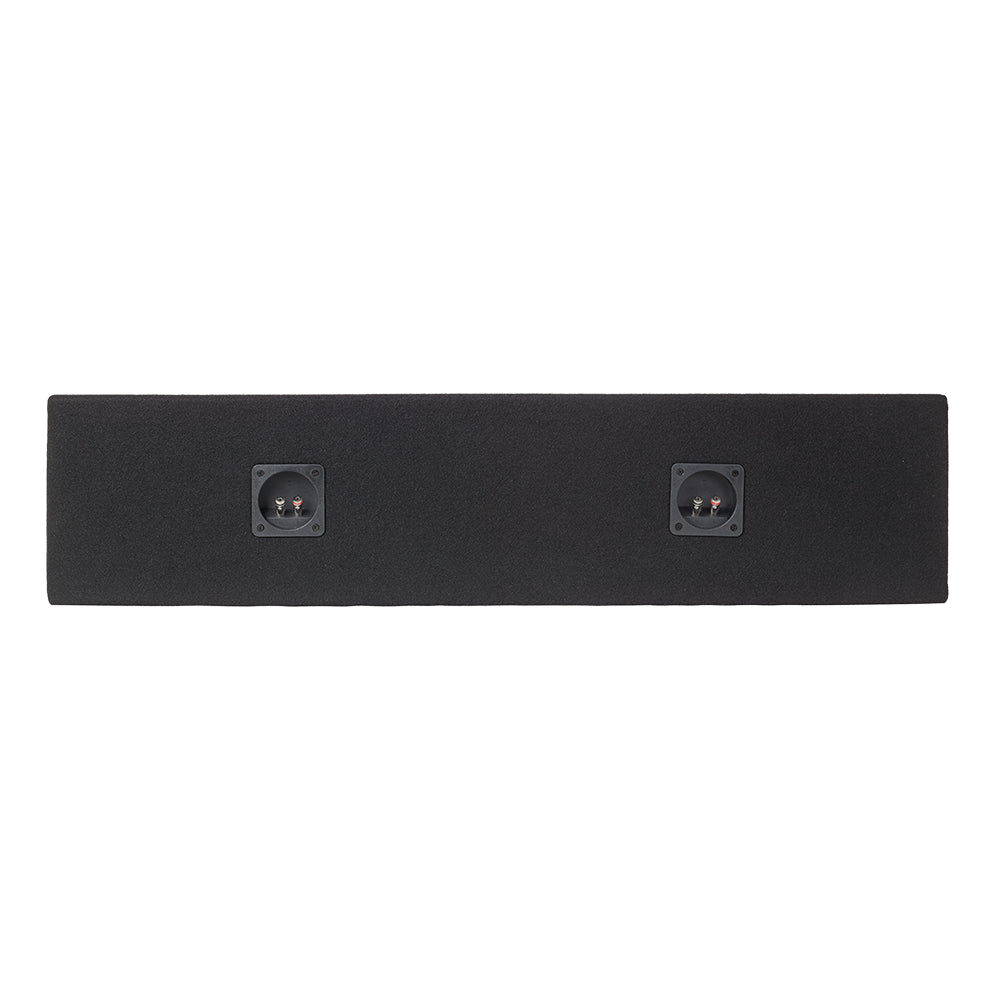

- Push terminals with speaker wire
- Two chambers, left and right
- Net volume: 21 L / 0.74 ft³ per chamber
- 68Hz tuning (vented)
- Damping wool
Vented or Sealed SPL Enclosure?

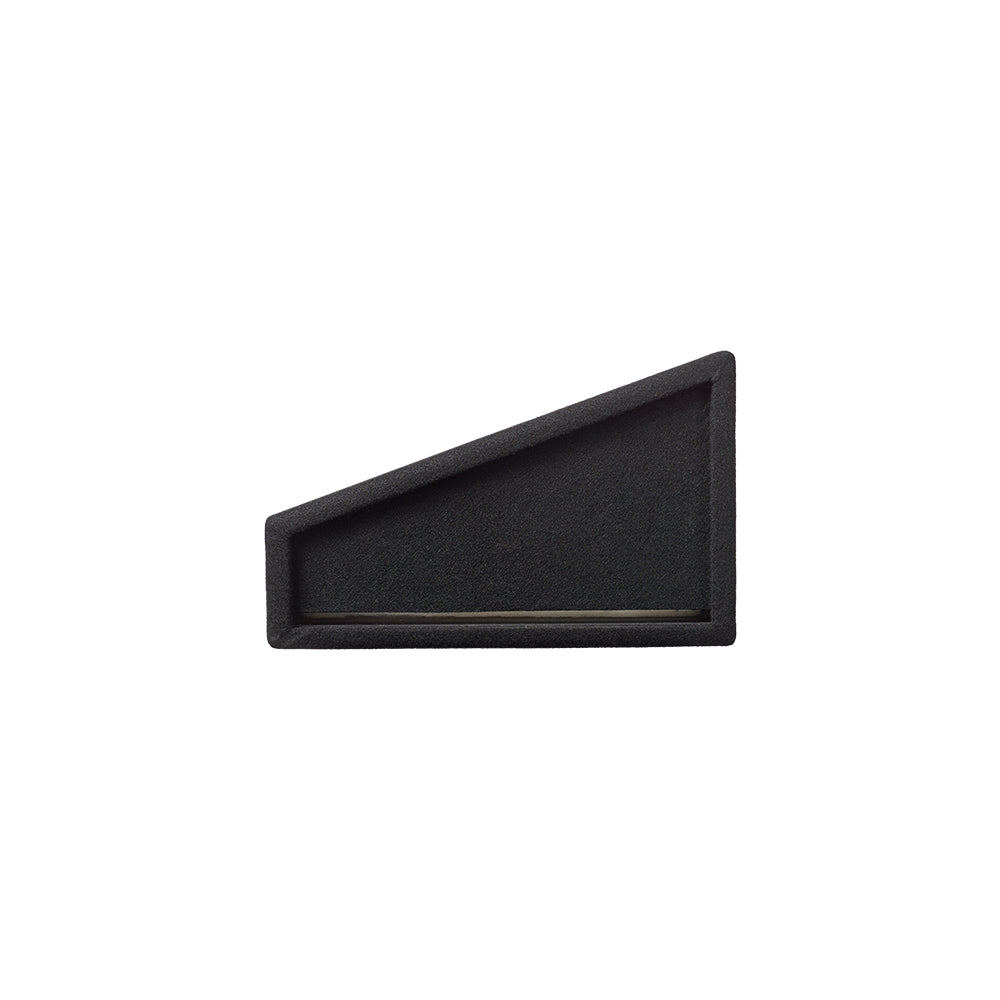

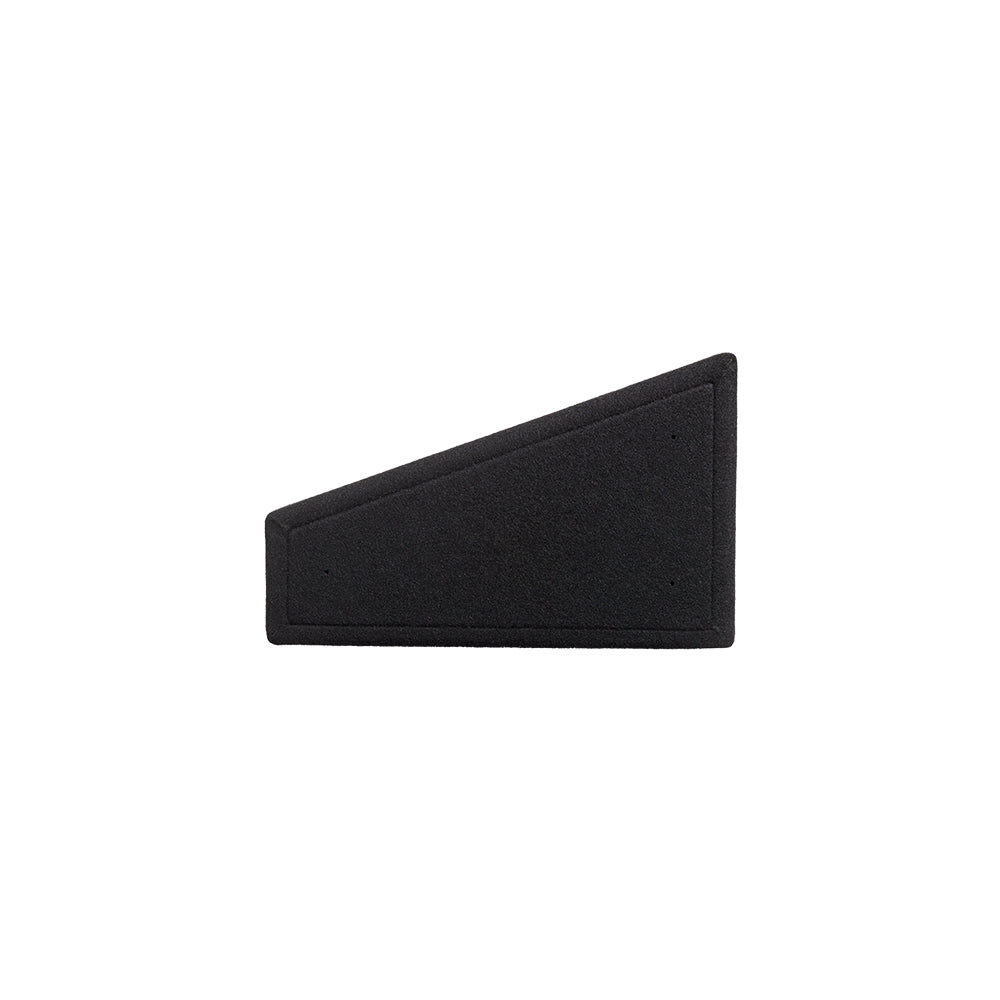

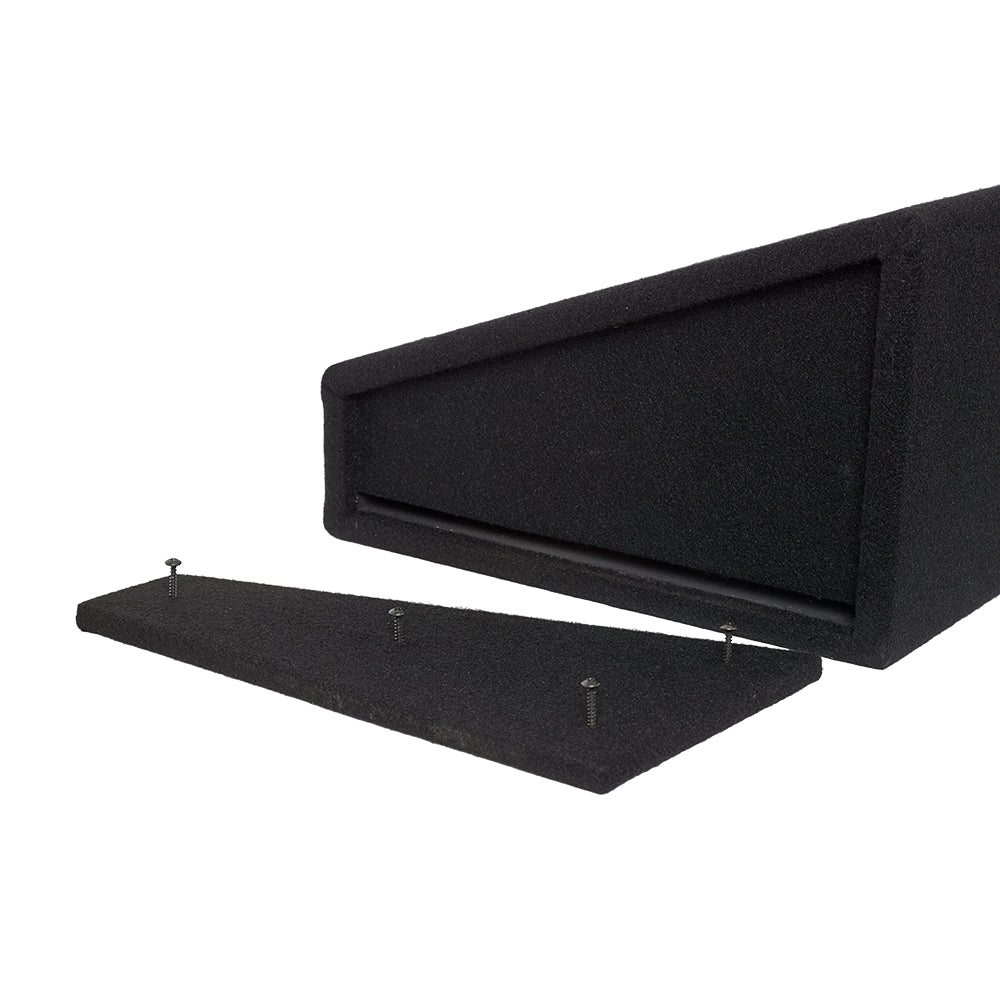

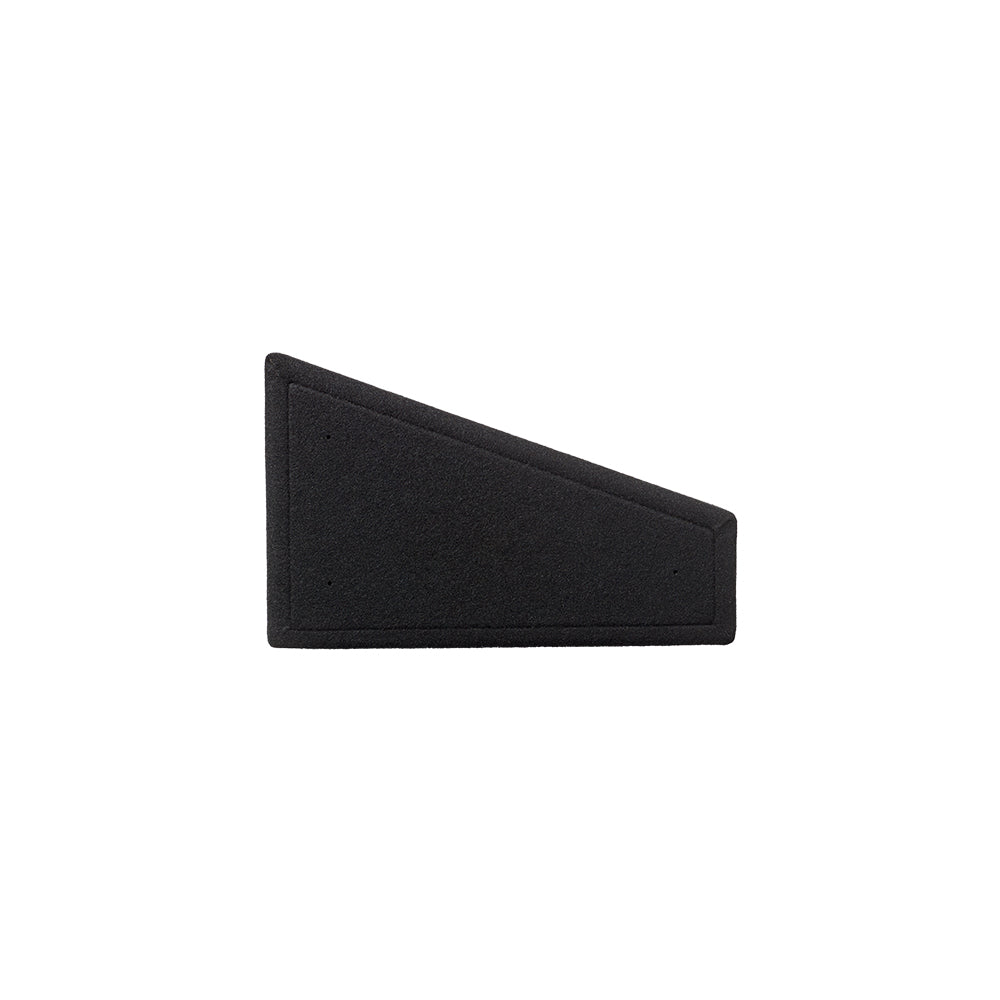

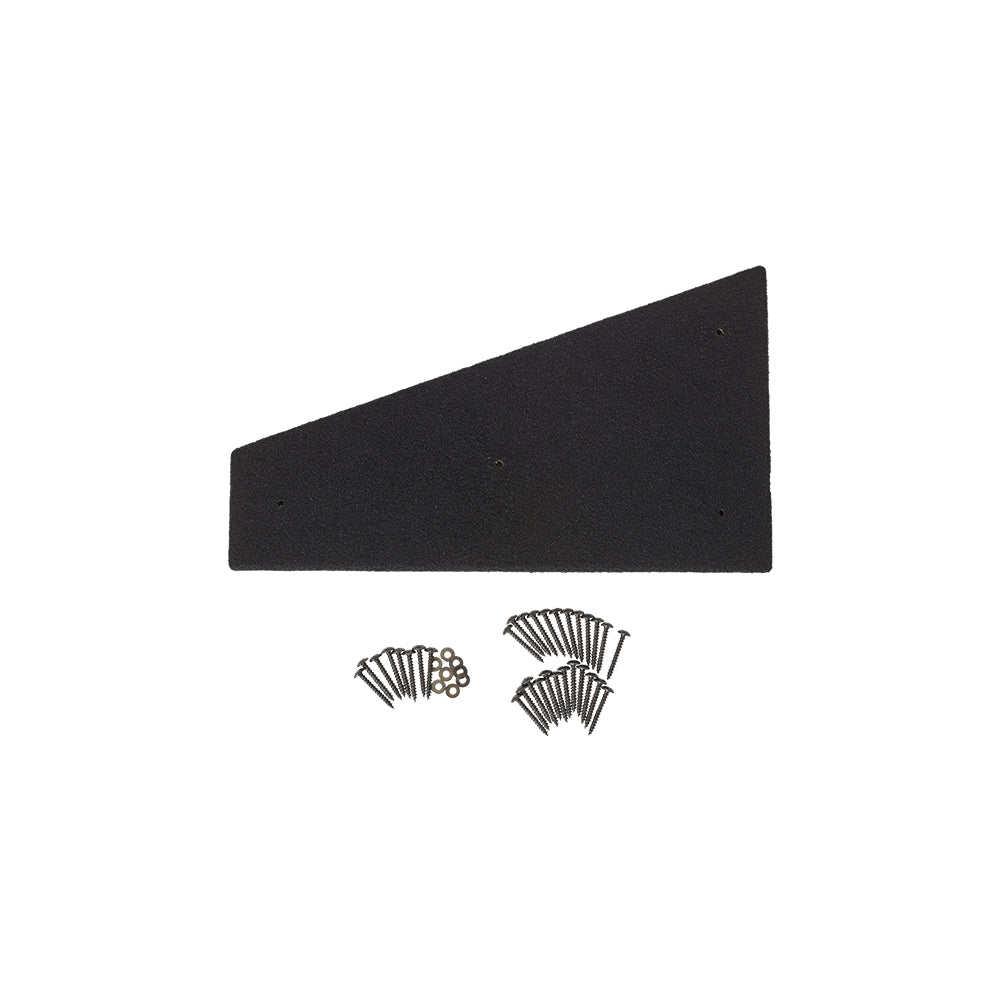

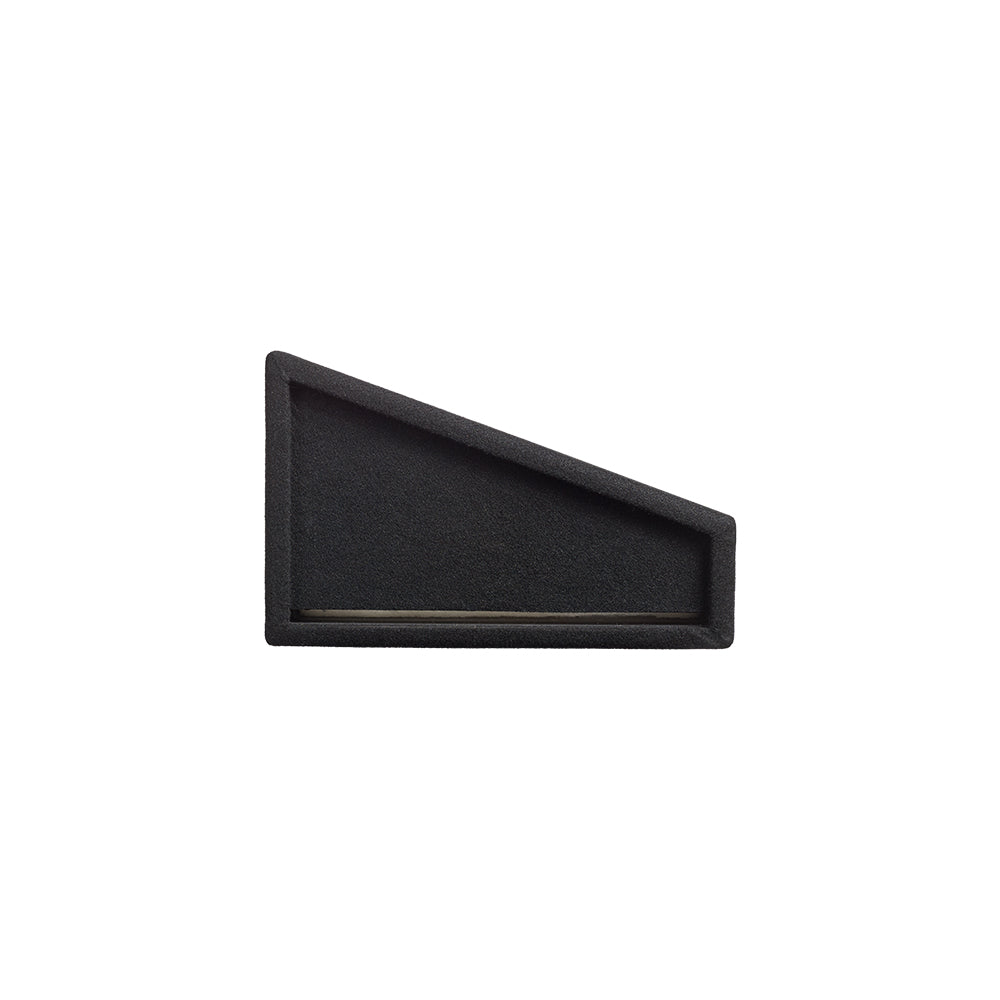

This SPL enclosure features a well-thought-out design that allows you to easily switch between ported and sealed configurations. Simply remove the side panels to create a vented enclosure for more punch and pressure. If you prefer a focus on sound quality, just use the included screws to secure the side panels for a sealed setup.
Specifications
Size: 4x 8"
Material: 12 mm MDF
Cutouts midbass: Ø 180 mm
Cutouts tweeter: Ø 73 mm
Net volume: 21 L / 0.74 ft³ per chamber
Tuning (vented): 68 Hz
Vent area: 34.6 cm² per chamber
Vent length: 37 mm
Dimensions: 980 x 231 x 370 mm
- Logistics Information
- Product Safety Information
Logistics Information
| SKU | VE482SPL |
| Product Type | Speaker Enclosure |
| EAN/GTIN | 7394409027434 |
| Product Status | Active |
| Weight (each) | 12.8 kg |
| Unit | pcs |
| Packaging Dimensions (each, W x H x D) | 100.0 x 40.0 x 25.5 cm |
| Master Carton Quantity | 1 |
| Master Carton Weight | 12.8 kg |
| Master Carton Dimensions (W x H x D) | 100.0 x 40.0 x 25.5 cm |
