Toyota RAV4 05-13 9 inch Head Unit Installation Kit
Toyota RAV4 05-13 9 inch Head Unit Installation Kit
F9TY3 is a 9 inch head unit installation kit for Toyota RAV4 XA30 2005-2013. It is designed to install an aftermarket head unit with a vehicle-specific fit and finish while retaining key installation functions provided by the included interface.
- 9 inch Installation Kit
- Head unit dimensions: 228/218 x 130 mm
- Factory-level fit and finish
- For Toyota RAV4 XA30 2005-2013
- With steering wheel control interface
- Includes vehicle-specific fascia panel
- Includes 10-pin / 6-pin / 28-pin Toyota connectors
- Includes vehicle-specific antenna adapter
- Includes universal head unit connection lead
9 inch Installation Kit
This installation kit allows a 9 inch aftermarket head unit to be fitted into the original dashboard location. The vehicle-specific fascia panel helps create a clean, integrated installation appearance that suits the dashboard layout.
The included steering wheel control interface provides speed pulse, parking brake, reverse and antenna remote outputs for the aftermarket head unit installation. It also retains steering wheel controls, factory USB, factory camera and factory AUX via RCA.
A universal steering wheel control lead is included for connection to supported aftermarket head units, including Alpine, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony and universal/programmable units, among others.

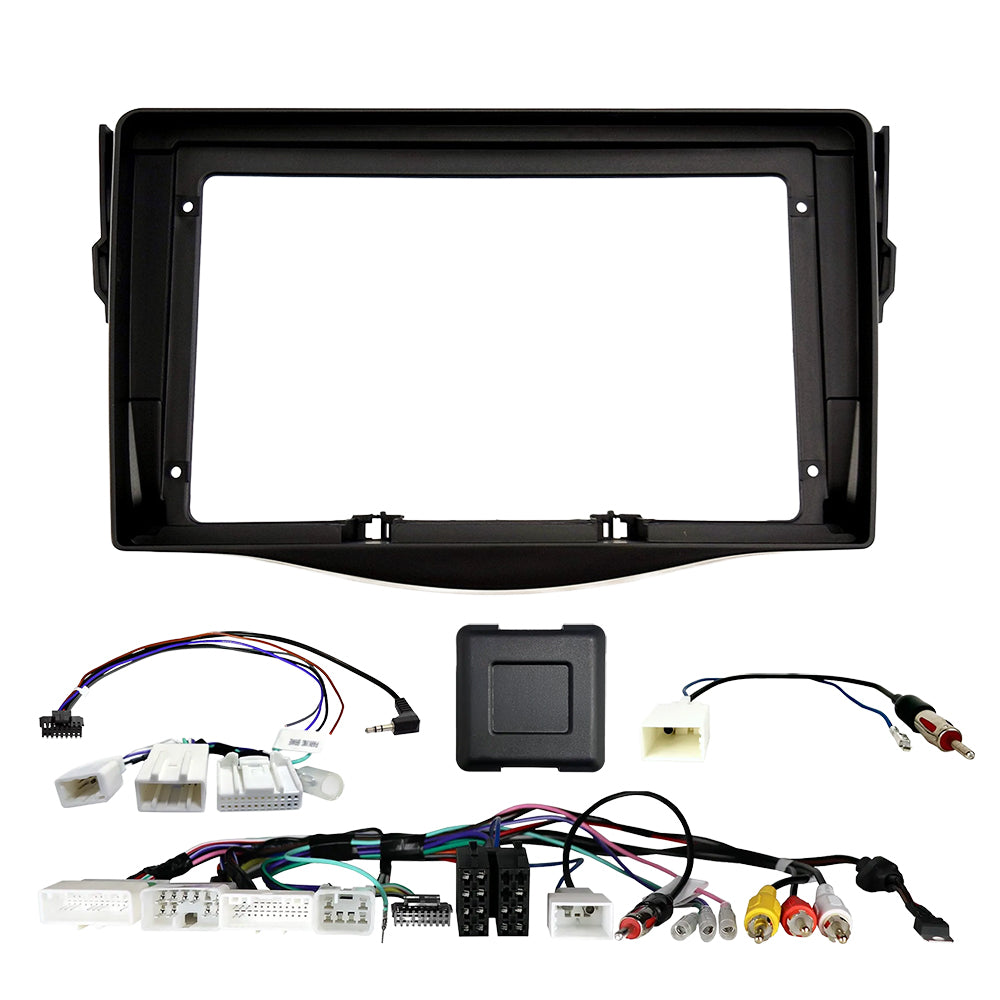

Included in the Kit

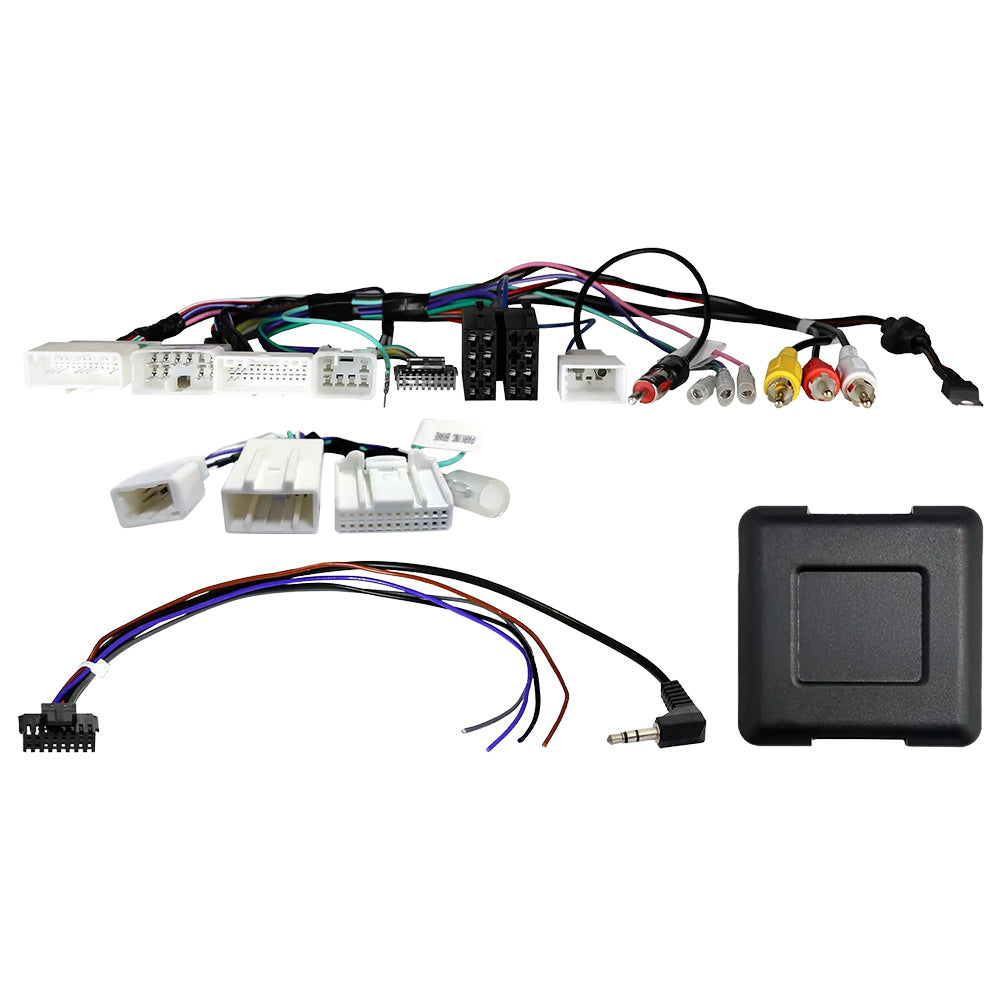

- Steering wheel control interface
- 10-/6-pin/28-pin Toyota connector

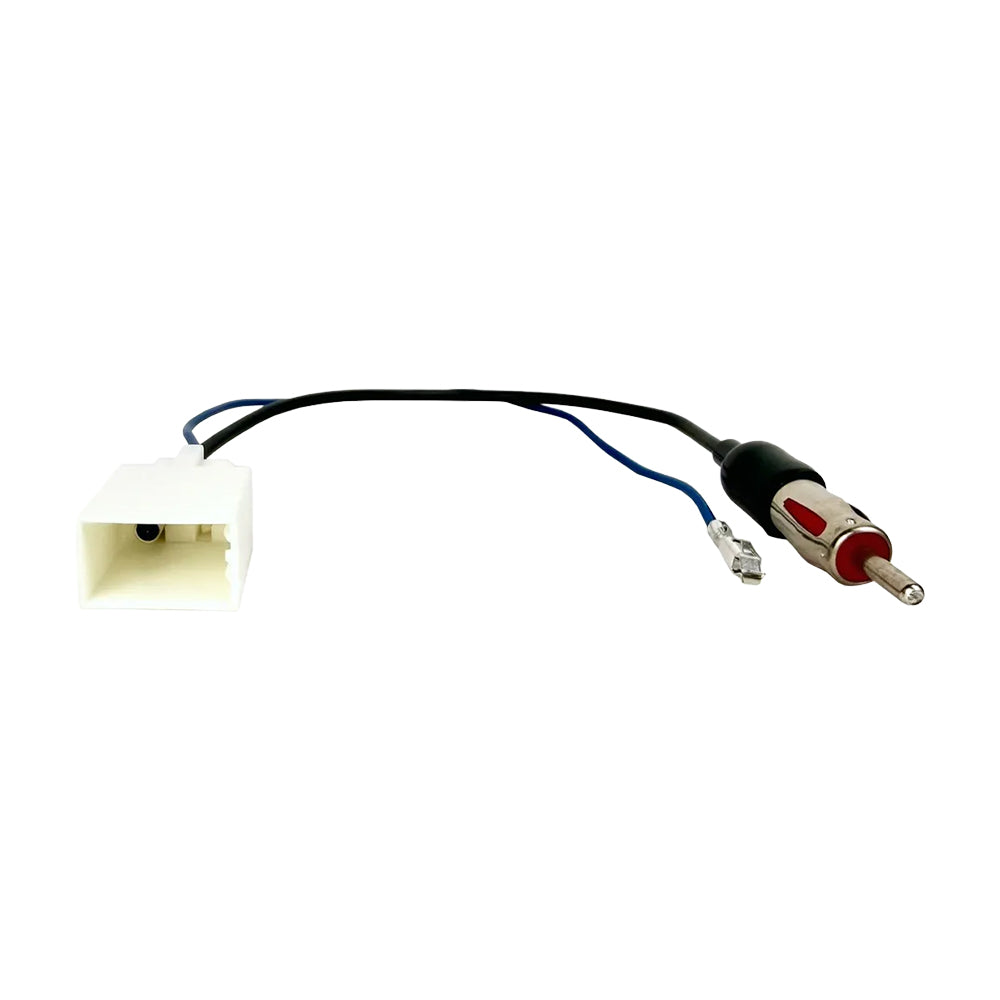

- Vehicle-specific antenna adapter

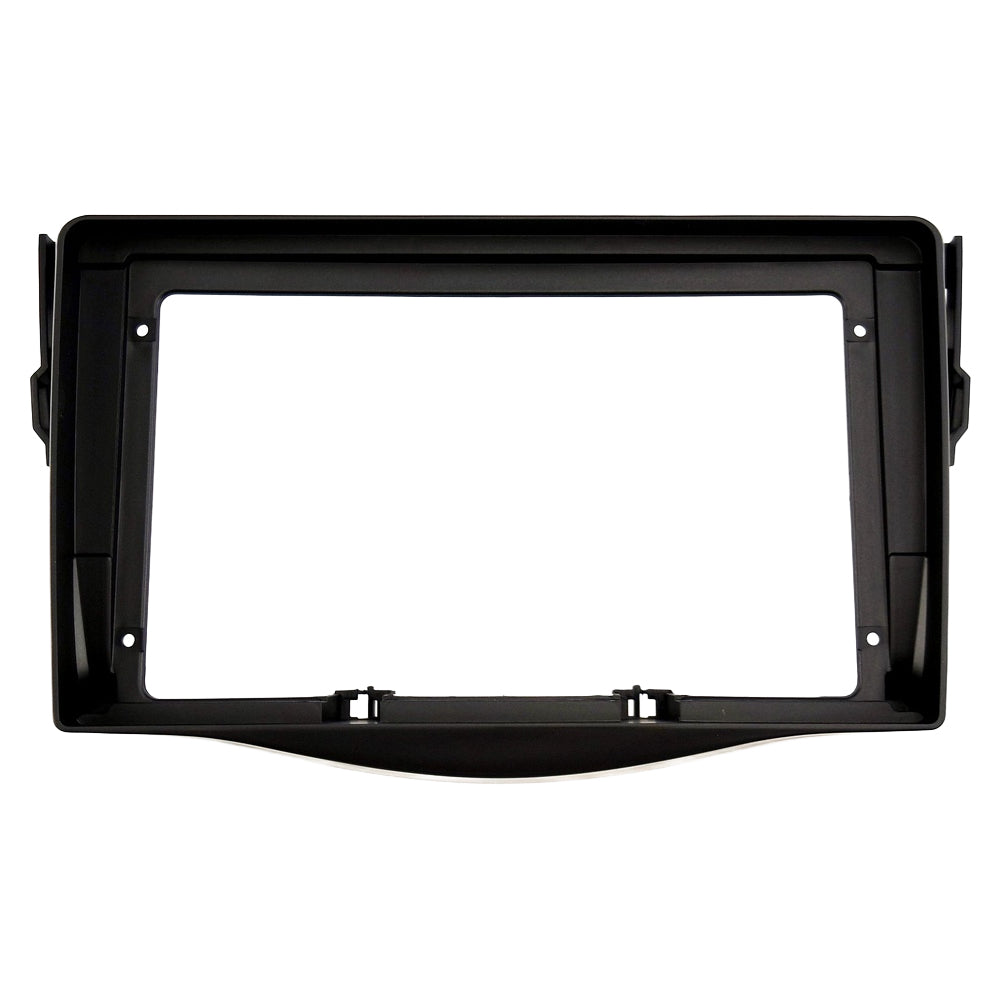

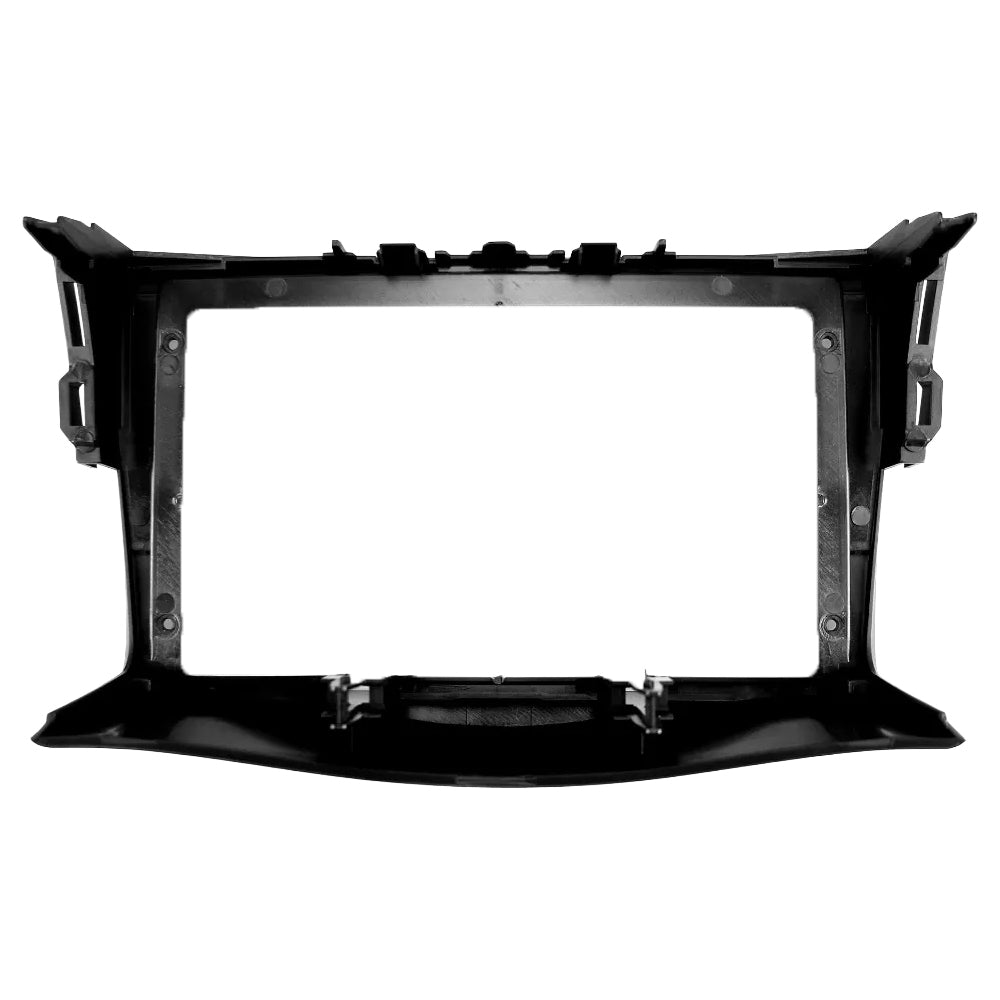

- Vehicle-specific fascia panel
- Universal head unit connection lead
Specifications
Head unit size: 9 inch
Head unit top width: 228 mm
Head unit bottom width: 218 mm
Head unit height: 130 mm
Interface outputs: speed pulse, parking brake, reverse, antenna remote
Retained features: steering wheel controls, factory USB, factory camera, factory AUX (via RCA)
Out of stock
Compatibility
Logistics Information
| SKU | F9TY3 |
| Product Type | 9 inch Head Unit Installation Kit |
| Product Status | Active |
| Weight (each) | 0.36 kg |
| Unit | pcs |
