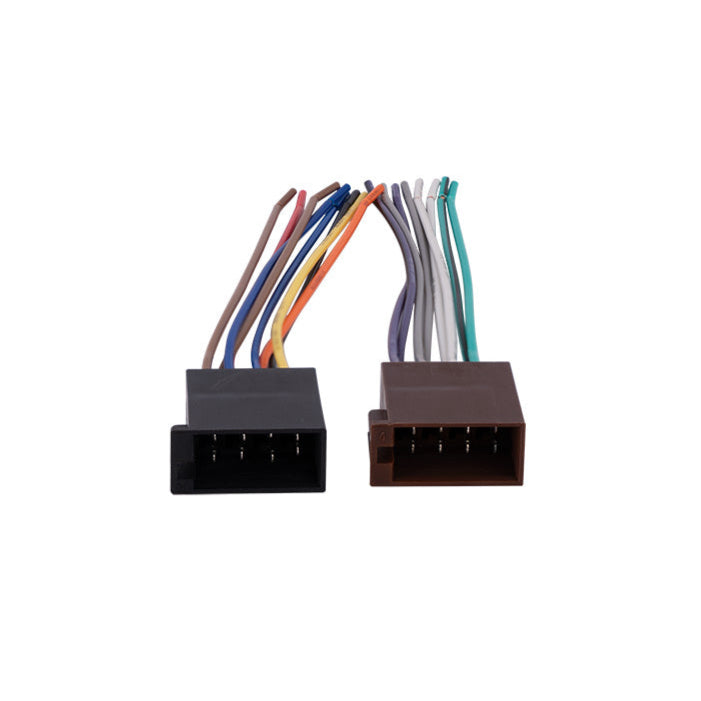

UNI03ISO is a female ISO connector with loose wire ends, perfect for restoring or customizing your car stereo wiring. Whether the original head unit harness is damaged, missing, or modified, this connector allows you to start fresh with a clean and reliable connection.
- Female ISO connector
- Loose wire ends
- Used for replacing damaged or missing connector
Seamless wiring
Whether it's been cut, altered, or simply isn’t compatible with your new setup, the UNI03ISO gives you the freedom to rebuild and reconnect on your own terms, ensuring a clean and professional installation. With secure and standardized connections, this ISO plug helps you restore and improve your audio system.
Specifications
A4 (Yellow): +12V Constant
A5 (Blue): +12V Antenna
A6 (Orange): Illumination
A7 (Red): +12V Ignition
A8 (Black): Ground
B1 (Purple): Rear Right +
B2 (Purple/Black): Rear Right -
B3 (Grey): Front Right +
B4 (Grey/Black): Front Right -
B5 (White): Front Left +
B6 (White/Black): Front Right -
B7 (Green): Rear Left +
B8 (Green/Black): Rear Left -
Note: Red (+12V Ignition) and Yellow (+12V Constant) are reversed on this connector.
- Logistics Information
- Product Safety Information
Logistics Information
| SKU | UNI03ISO |
| Product Type | ISO Connector |
| EAN/GTIN | 7394409011761 |
| Product Status | Active |
| Weight (each) | 0.04 kg |
| Unit | pcs |
| Packaging Dimensions (each, W x H x D) | 12.0 x 2.0 x 28.0 cm |
| Master Carton Quantity | 30 |
| Master Carton Weight | 5.3 kg |
| Master Carton Dimensions (W x H x D) | 25.0 x 22.0 x 45.0 cm |
Product Safety Information
Intended Use
This product is intended for general automotive or workshop use, as specified on the packaging or in related documentation. Use only as intended.
Safety Instructions
- Always read all labels and instructions before use.
- Keep out of reach of children.
- Use with appropriate tools and protective equipment where applicable.
- Do not modify the product.
- Avoid exposure to moisture, extreme temperatures, or physical damage.
- For electrical products: Disconnect power before installation. Ensure correct polarity and use proper fuses.
Installation & Handling
Installation or use must be carried out by a competent person. Improper handling may result in injury or damage.
Maintenance
Check regularly for damage or wear. Stop using the product if it appears damaged.
Disposal
Dispose of this product in accordance with local regulations for electrical and electronic waste or general waste, as applicable.
