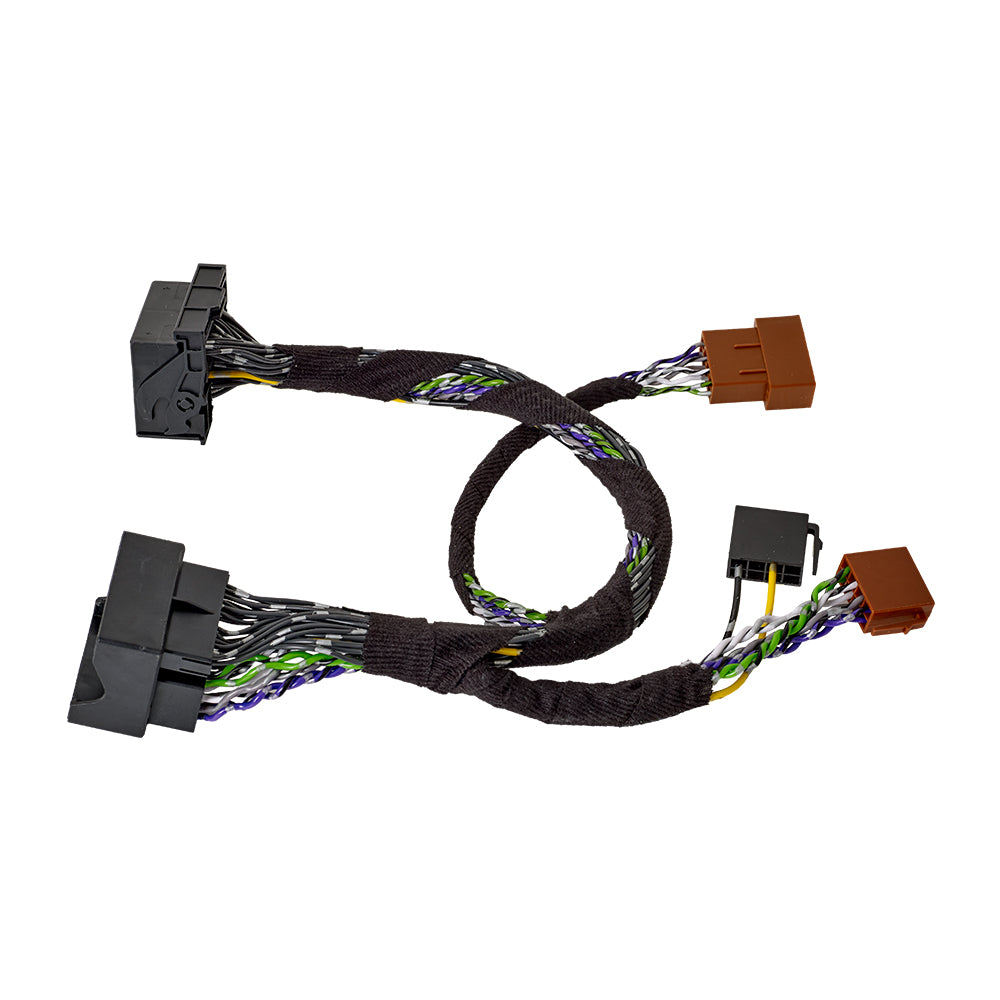

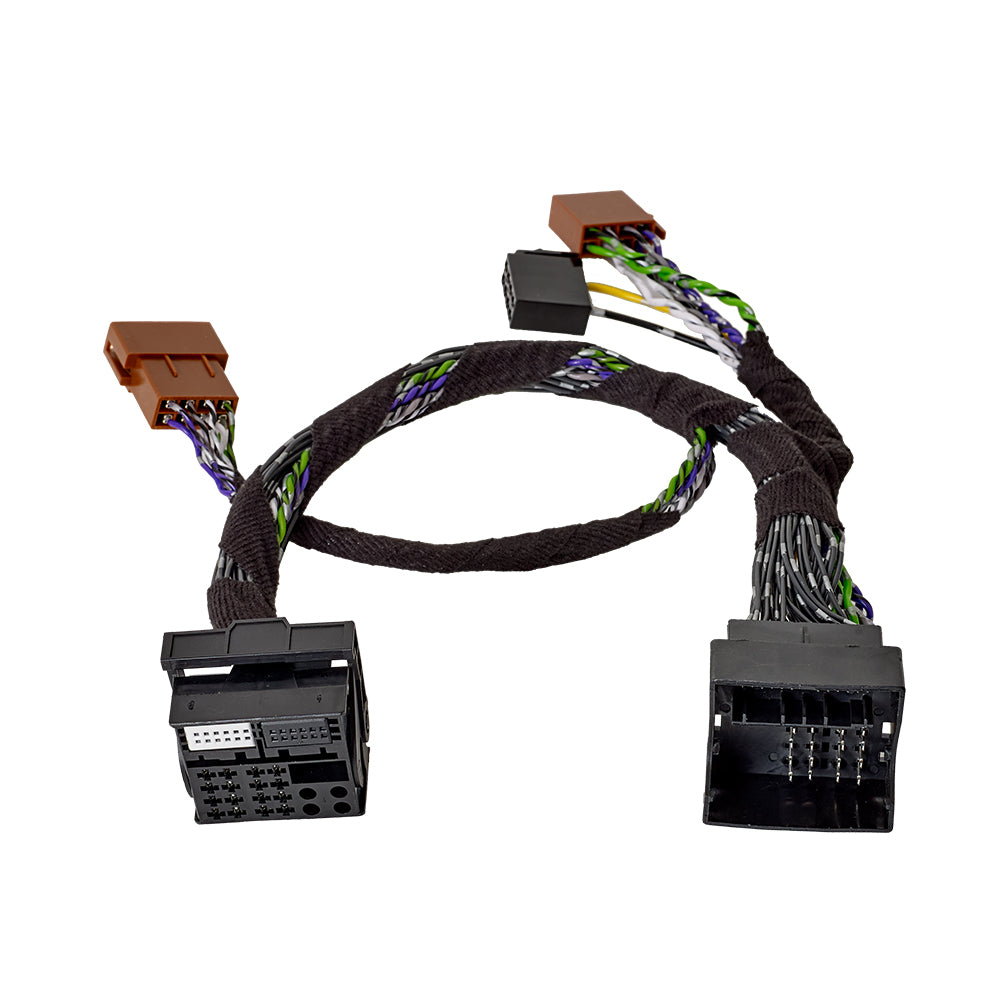

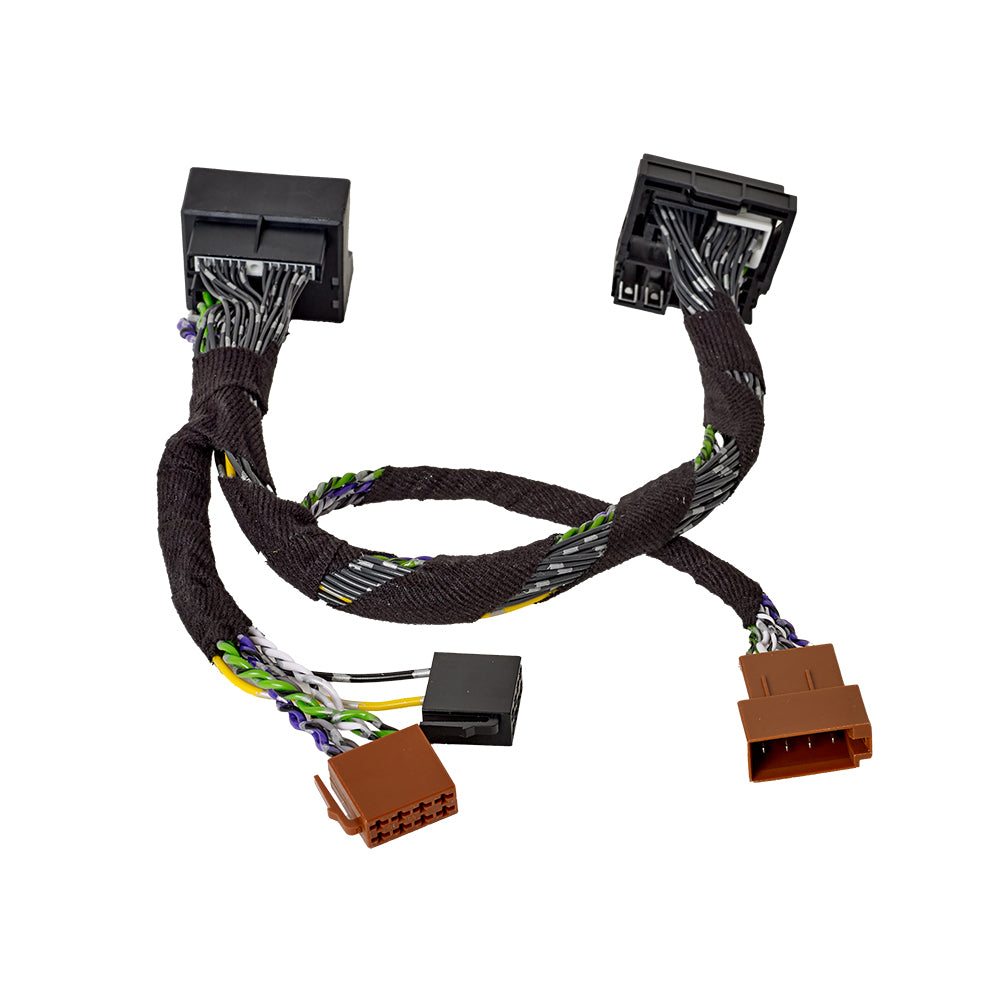

QLPNP01 is a convenient and smart plug & play integration harness designed for easily connecting plug & play products with ISO connectors in cars with matching Quadlock connectors. The harness is compatible with VAG, BMW, Mercedes, and more (see the list below) that have the same Quadlock connector. The connector attaches to the car's original stereo, making it easy to both retrieve a high-level signal from the car and route speaker cables back to the car's speakers from an amplifier, as well as providing power to accessories.
-
Plug & Play Integration Harness
- Used for connecting an audio processor/DSP, converter, etc.
- No modifications to the car’s original wiring
- Fully reversible installation
- From VAG Quadlock connectors to ISO connectors
- Installed behind the factory head unit
- For Volkswagen, Seat, Skoda among others
Plug & Play Integration Harness
An integration harness, also called SOT-harness, T-harness or Y-harness, is a convenient solution for connecting, for example, a DSP or high-to-low level converter without modifying the car’s original wiring. It acts as an extension of the car's original connector, where speaker and power cables are split into two ISO connectors.
One ISO connector provides a high-level signal and power supply for an audio processor, while the other ISO connector routes speaker cables out to the car and power back to the original system. This enables a smooth installation of audio processors and amplifiers without needing to run new cables or modify the car’s existing system.
Specifications
1x Quadlock male
1x Quadlock female
1x ISO female, 2x ISO male
Compatible with
Alfa Romeo
Alfa Romeo Guilia (952) 2016->
Alfa Romeo Stelvio (949) 2017->
Alfa Romeo Giulietta 2010->
Alfa Romeo MiTo 2008->
Audi
Audi A1 (8X) 2010->2018
Audi A3 (8P) 2003->2013
Audi A4 (B6/8E) 2000->2005
Audi A4 (B7/8E) 2004->2009
Audi A5 (8T/8F) 2007->2011
Audi A6 (C5/B4) 2001->2006
Audi Q3 (8U) 2011->2018
Audi Q5 (8R) 2008->2017
Audi Q7 (4L) 2005-2015
Audi R8 (42) 2007->2015
Audi TT (8J) 2006->2014
BMW
BMW 1 Series 2004->
BMW 2 Series (F22) 2014->2021
BMW 2 Series (F45) 2014->2021
BMW 3 Series (E46) 1998->2007
BMW 3 Series (E90/91/92/93) 2005->2014
BMW 3 Series (F30/31/34/35) 2012->2019
BMW 4 Series (F32/33/36) 2014->2019
BMW 5 Series (E39) 2000->2004
BMW 5 Series Touring (E39) 2000->2004
BMW 5 Series (E60/61) 2005->2010
BMW 5 Series (F10/F11) 2010->2017
BMW 5 Series (G30/31/38) 2017->2019
BMW 6 Series (E63+E64) 2003->2010
BMW 7 Series (E65/E66+F01/F02) 2001->2015
BMW X1 (E84) 2009->2015
BMW X2 (F39) 2018->
BMW X3 2000->2019
BMW X4 (F26) 2014->2018
BMW X4 (G02) 2018->2019
BMW X5 2000->2013
BMW X6 (E71/72) 2006->2014
BMW Z4 2000->2013
BMW Z8 2000->2013
BMW X6 (E71) 2008->2014
BMW i3 (i01) 2013->2022
BMW i8 (i12) 2014->2020
Mini
Mini 1st Gen (R52) 2004->2008
Mini 1st Gen (F50/F53) 2004->2006
Mini 2nd Gen (R56) 2006->2014
Mini 2nd Gen (R57) 2009->2016
Mini 3rd Gen (F55/F56/F57) 2014->2019
Mini Clubman (R55) 2007->2015
Mini Clubman (F54) 2016->2019
Mini Countryman (R60) 2010->2016
Mini Countryman (F60) 2016->2019
Mini Coupe (R58) 2011->2015
Mini Paceman (R61) 2012->2016
Mini Roadster (R59) 2012->2015
Land Rover
Land Rover Defender 2 2001->
Land Rover Range Rover 2002->2006
Ford
Ford C-Max (DM2) 2003->2010
Ford Fiesta (MK5) 2005->2008
Ford Focus (DA3) 2004->2010
Ford Fusion (JU2) 2005->2012
Ford Galaxy (WA6) 2006->2015
Ford Kuga (DM2) 2008->2012
Ford Mondeo (B4Y/B5Y/BWY/BA7) 2003->2014
Ford S-Max (WA6) 2006->2015
Ford Transit 2006->2014
Ford Transit Connect (PH2) 2006->2013
Iveco
Iveco Daily 2014->2019
Mercedes-Benz
Mercedes-Benz CLS (C219) 2004->2010
Mercedes-Benz E-Class 2003->2020
Mercedes-Benz SLK (R171) 2004->2011
Mercedes-Benz SL (R230) 2004->2011
Mercedes-Benz A-Class 2005->2018
Mercedes-Benz B-Class 2005->2018
Mercedes-Benz C-Class (CL203/S203/W203) 2004->2007
Mercedes-Benz C-Class (C204/S204/W204) 2007->2015
Mercedes-Benz Citan 420 (W420) 2021->2023
Mercedes-Benz CLC-Class (CL203) 2008->2011
Mercedes-Benz CLK-Class (W209) 2005->2010
Mercedes-Benz CLS-Class (W219) 2004->2010
Mercedes-Benz G-Class 2007->2017
Mercedes-Benz GL-Class (X164) 2006->2016
Mercedes-Benz GLK-Class 2009->2015
Mercedes-Benz M-/ML-Class (W164) 2005->2014
Mercedes-Benz R-Class (W251) 2005->2012
Mercedes-Benz Sprinter 2006->2023
Mercedes-Benz Vito/Viano 2006->2023
Mercedes-Benz X-Class 2017->2020
Smart
Smart ForFour (W454) 2004->2007
Smart Roadster (R59) 2012->2015
Opel
Opel Agila (A) 2004->2007
Opel Antara 2006->2010
Opel Astra (H) 2004->2014
Opel Combo (C) 2004->2011
Opel Corsa (C) 2004->2006
Opel Corsa (D) 2006->2014
Opel Meriva (A) 2003->2010
Opel Signum 2005->2008
Opel Tigra Twin Top 2004->2009
Opel Vectra (C) 2004->2008
Opel Zafira (B) 2005->2014
Saab
Saab 9-3 2003->2006
Seat
Seat Alhambra (7N) 2010->2015
Seat Altea (5P) 2004->2015
Seat Exeo (3R) 2009->2013
Seat Ibiza (6J) 2008->2015
Seat Leon (1P) 2005->2012
Seat Mii 2011-2017
Seat Toledo 2004->2015
Skoda
Skoda Citigo (AA) 2012->2017
Skoda Fabia (5J) 2007->2014
Skoda Octavia (1Z) 2004->2013
Skoda Praktik 2007->2015
Skoda Rapid (NH) 2012->2015
Skoda Roomster (5J) 2006->2015
Skoda Superb (3T) 2008->2015
Skoda Yeti (5L) 2009->2013
Volkswagen
Volkswagen Amarok (2H) 2010->2016
Volkswagen Beetle (16) 2011->2016
Volkswagen Caddy III (2K) 2003->2015
Volkswagen Caravelle (7H) 2004->2015
Volkswagen CC (3C/35) 2008->2016
Volkswagen Crafter 2006->2016
Volkswagen Eos (1F) 2006->2015
Volkswagen Fox (5Z) 2005->2011
Volkswagen Golf V (1K) 2003->2008
Volkswagen Golf V Plus (1KP) 2005->2009
Volkswagen Golf VI (1K) 2008->2012
Volkswagen Golf VI (1KM) 2009->2013
Volkswagen Golf VI Plus (1KP) 2009->2014
Volkswagen Jetta III (1K5/1KM) 2005->2010
Volkswagen Jetta IV (162) 2011->2014
Volkswagen Lavida 2008->2018
Volkswagen Multivan (7H) 2003->2015
Volkswagen Passat B6 (3C2) 2005->2010
Volkswagen Passat B6 (3C5) 2005->2010
Volkswagen Passat B7 (3C/362) 2010->2014
Volkswagen Phaeton (3D) 2007->2010
Volkswagen Polo IV (9N) 2005->2009
Volkswagen Polo V (6R) 2009->2014
Volkswagen Scirocco III (13) 2008->2014
Volkswagen Sharan II (7N) 2010->2015
Volkswagen T5 Transporter (7H) 2003->2015
Volkswagen T6 (7HC) 2015->2019
Volkswagen Tiguan I (5N) 2007->2016
Volkswagen Touareg I (7L) 2003->2010
Volkswagen Touran (1T) 2003->2015
Volkswagen UP! (AA) 2011->2016
Renault
Renault Fluence 2010->
Renault Megane III 2009->
Renault Scenic 2009->
Renault Grand Scenic 2009->
Renault Twingo 2009->
Renault Wind 2009->
Note: Some car models may have a different Quadlock connector. Double check to make sure this connector is the same as in your car. This harness is not suitable for cars with OEM amplifiers.
